Qingdao Speed CNC Router - Industrial 3-Axis Woodworking Machine
Wood Working
TDF120-4.5
-- China
2014 United Arab Emirates
Machine Details
Item Details
| Name | Qingdao Speed CNC Router - Industrial 3-Axis Woodworking Machine |
|---|---|
| Item Code | SM2606853 |
| Model No | TDF120-4.5 |
| Usage | used |
| Industry | Wood Working |
| Year of Manufacture | 2014 |
| Country of Origin | China |
| Posted On | 15-06-2026 |
| Machine Location | United Arab Emirates |
Description

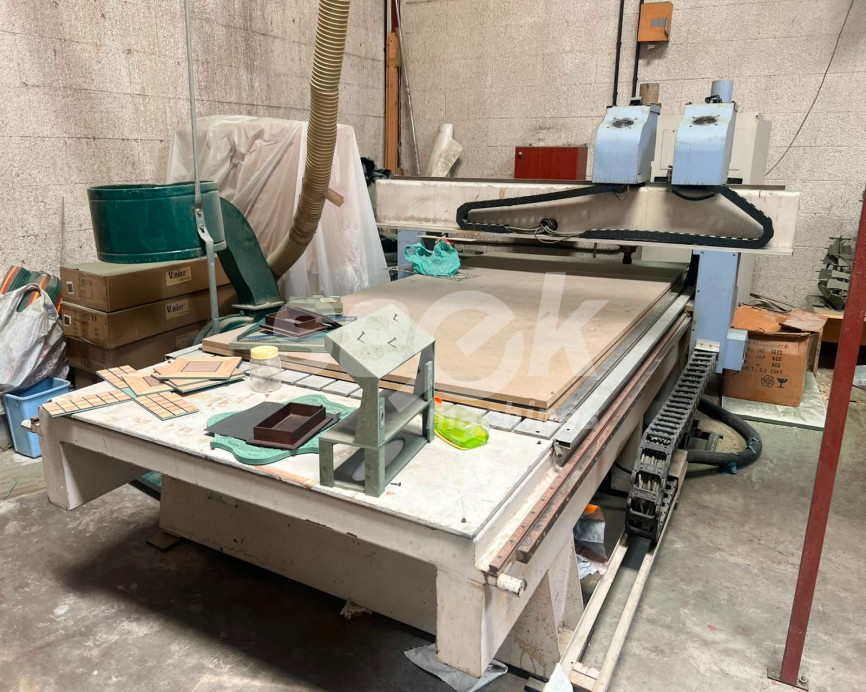

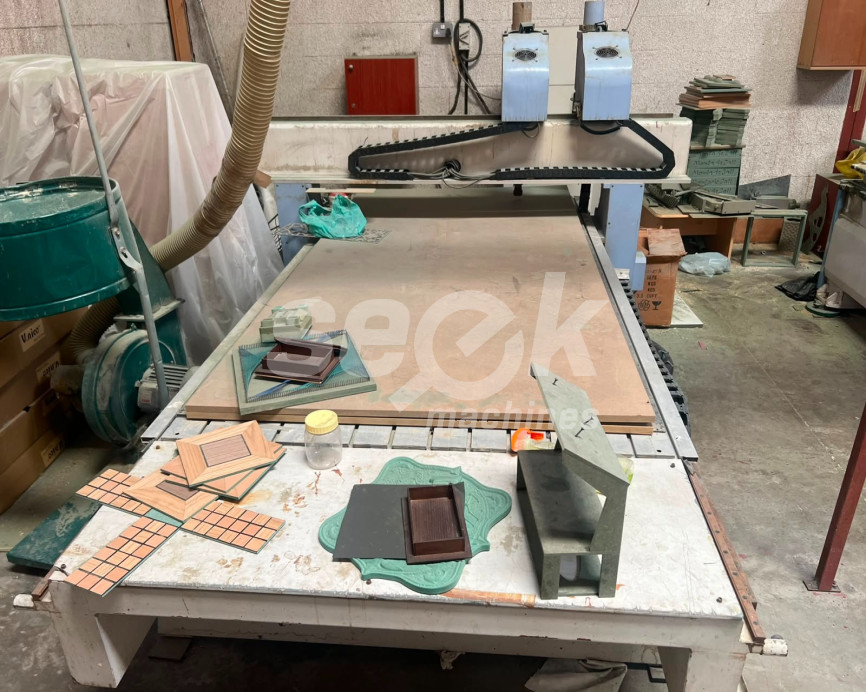

This heavy-duty machine is built on a rigid steel frame and is ideally suited for processing wood, MDF, acrylic, and non-ferrous metals.

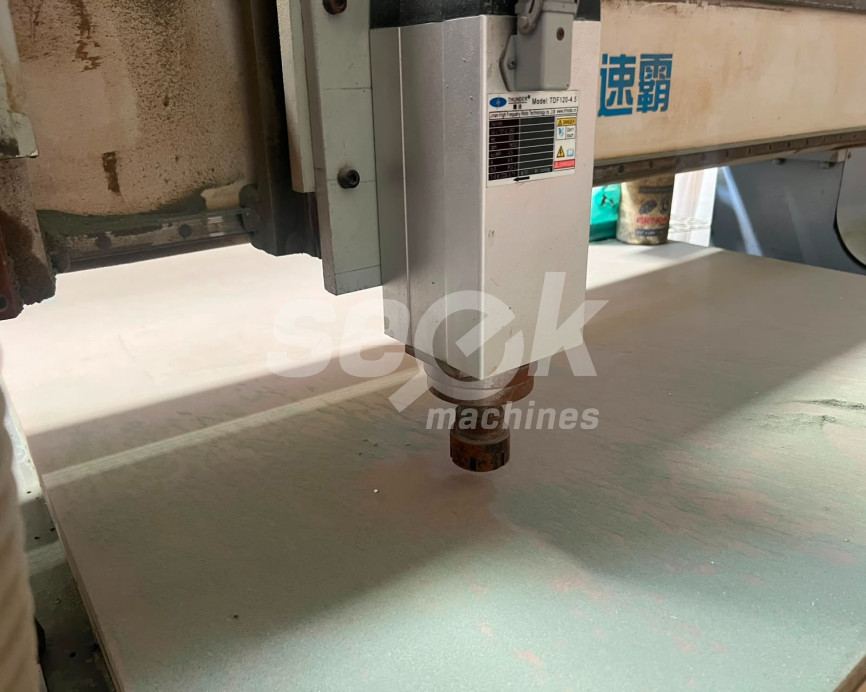

It features a high-performance Thunder TDF120-4.5 spindle motor with air cooling, capable of reaching speeds up to 24,000 RPM. The machine offers a massive working area of 1450 x 2500 mm, making it perfect for full-sheet nesting and large-scale manufacturing projects.

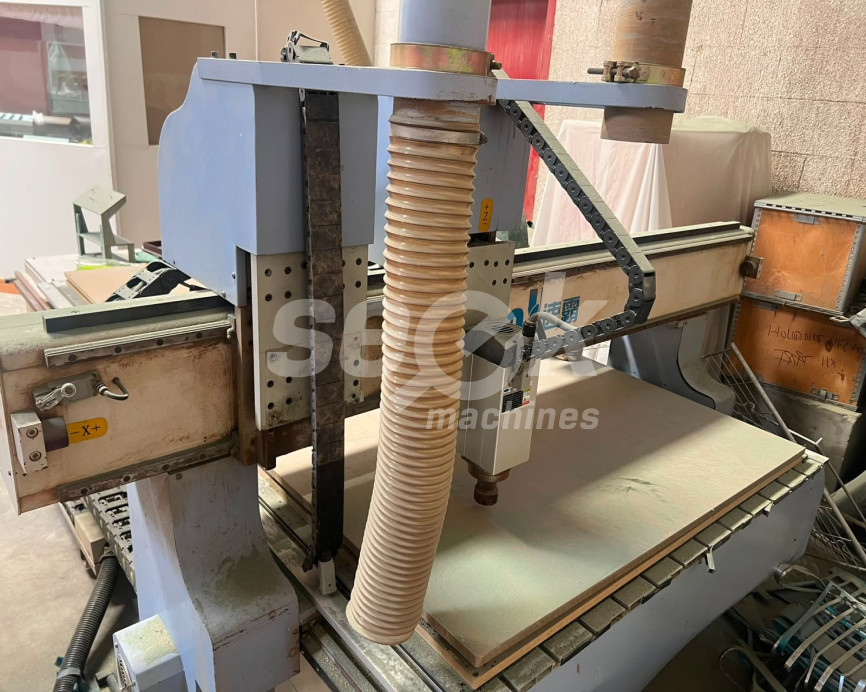

The unit is currently configured with an integrated dust extraction system and a robust cable management track system for the X, Y, and Z axes. It is in operational shop-floor condition and is ready for immediate deployment in a professional workshop.
Key Advantages:
Large Format Capacity: The 1450 mm width allows for processing wider materials than standard 1300 mm machines.
Proven Durability: Solid gantry design with high-rigidity square linear orbits for smooth, accurate movement.
Industrial Spindle: The 4.5 kW Thunder spindle is a standard industrial component, known for reliability in long production runs.
Contact now for viewing and inspection.

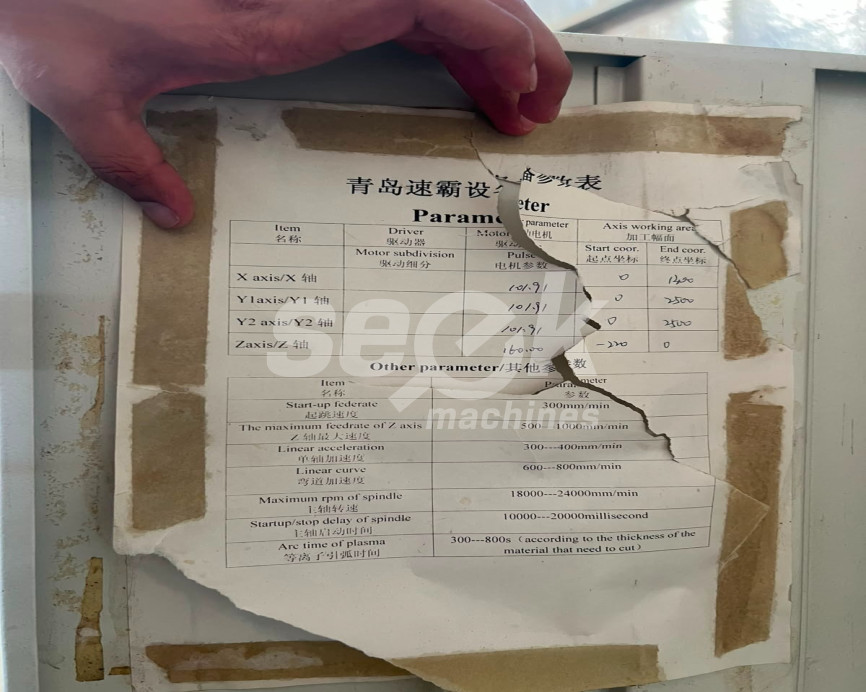

Technical Specifications
| X-Axis Working Area | 0 to 1450 mm |
|---|---|
| Y-Axis Working Area | 0 to 2500 mm |
| Z-Axis Working Area | 220 to 0 mm |
| Spindle Speed | 18,000 to 24,000 RPM |
| Start-up Federate | 300 mm/min |
| Max Z-Axis Feedrate | 500 – 1000 mm/min |
| Linear Acceleration | 300 – 400 mm/min |
| Linear Curve Speed | 600 – 800 mm/min |
| Startup/Stop Delay | 10,000 – 20,000 milliseconds |
