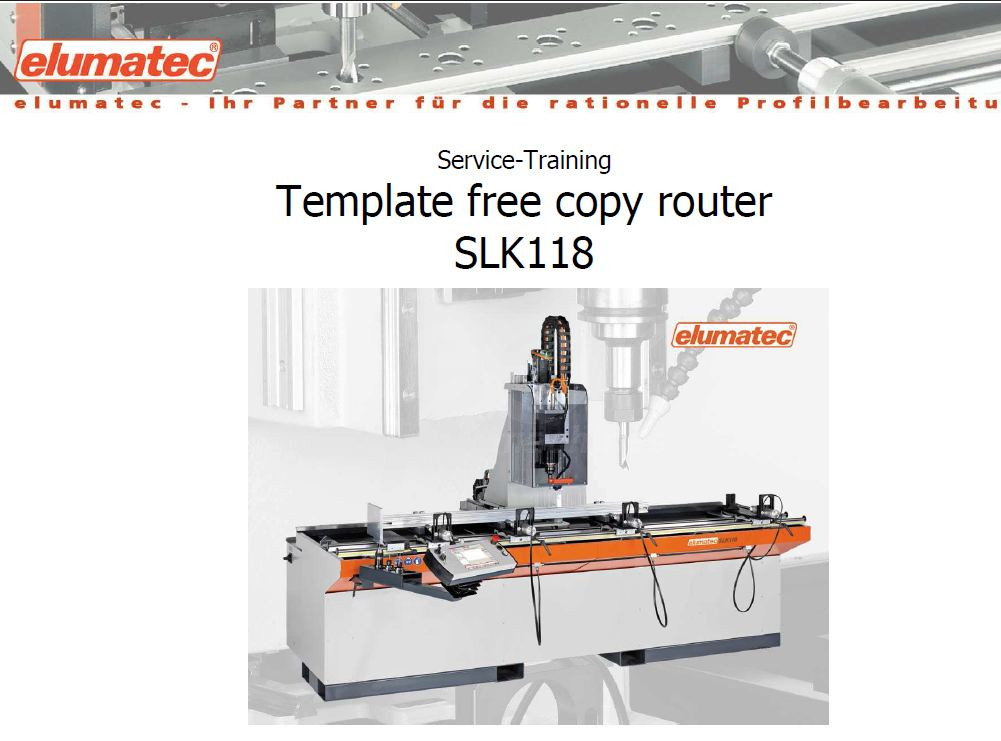

ELUMATEC SLK 118 Template Free Copy Router + Accessories
USD 28,000.00
Wood Working
SLK118
ELUMATEC Germany
2010 Bahrain
Machine Details
Item Details
| Name | ELUMATEC SLK 118 Template Free Copy Router + Accessories |
|---|---|
| Item Code | SM26071002 |
| Model No | SLK118 |
| Usage | used |
| Industry | Wood Working |
| Manufacturer | ELUMATEC |
| Year of Manufacture | 2010 |
| Country of Origin | Germany |
| Posted On | 20-07-2026 |
| Machine Location | Bahrain |
Description
Copy router with 3-axis control
The ideal machine for efficient door production
Profile processing is always done from above. Processing on other sides is possible by manually rotating the profile.
For manual tool changes, there are 4 tool holder positions available.
The generously dimensioned axis travel paths allow machining of large profiles.
Easy operation directly on the machine via a touch panel or optionally with the ESP 118 software.
Safety light barrier to protect the operator.
4 horizontal pneumatic clamps for material fixing.
Central chip extraction
Spray lubrication unit
Technical Data
X-axis travel: 2,450 mm – Max speed: 30 m/min
Y-axis travel: 350 mm – Max speed: 15 m/min
Z-axis travel: 280 mm – Max speed: 15 m/min
Spindle speed: 18,000 rpm
Spindle power: 3 kW
Max machining length: 2,400 mm
Voltage: 400 V, 3~, 50 Hz
Compressed air connection: 7 bar
Dimensions: Length 3,100 mm, Depth 1,650 mm, Height 2,250 mm
Weight: 1,227 kg
