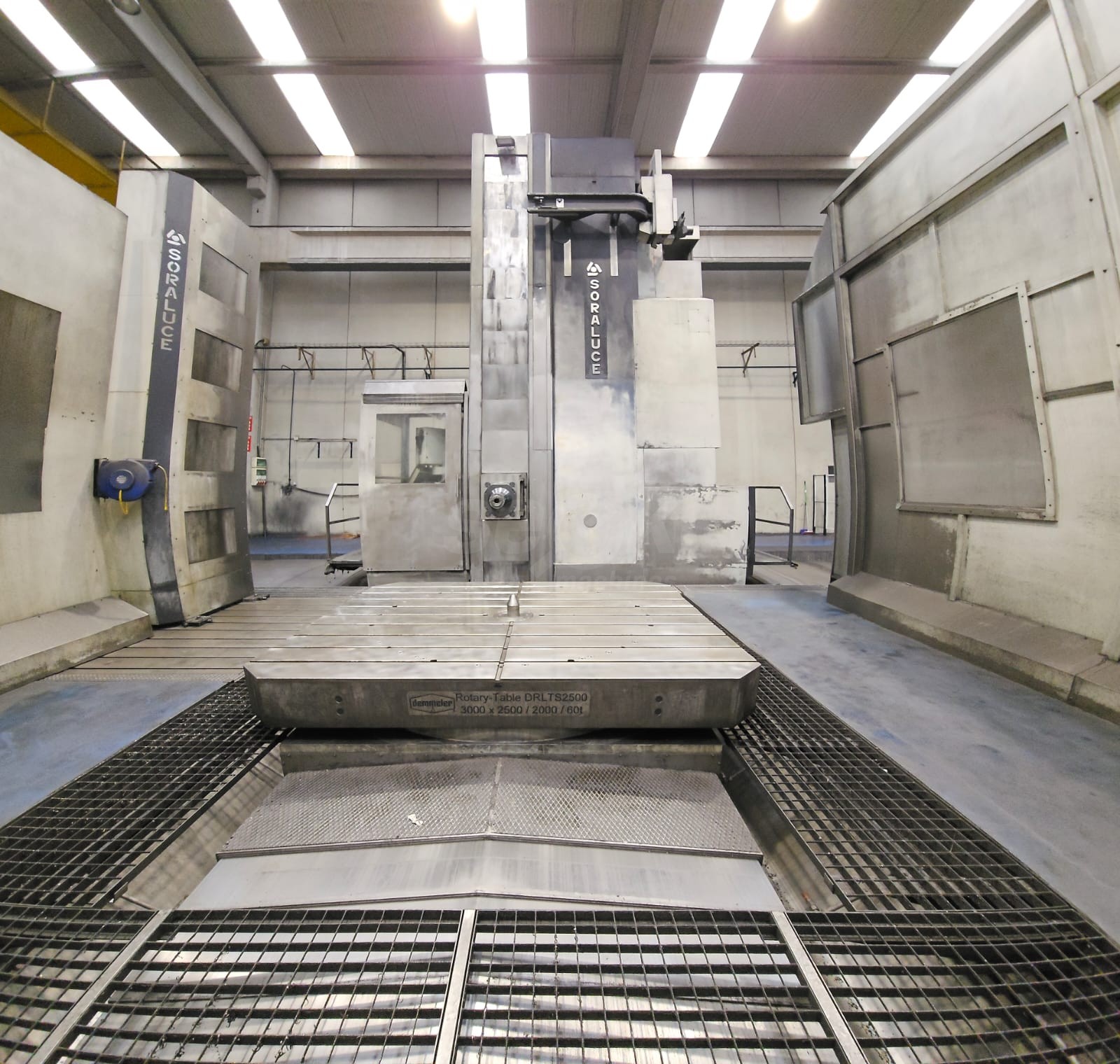

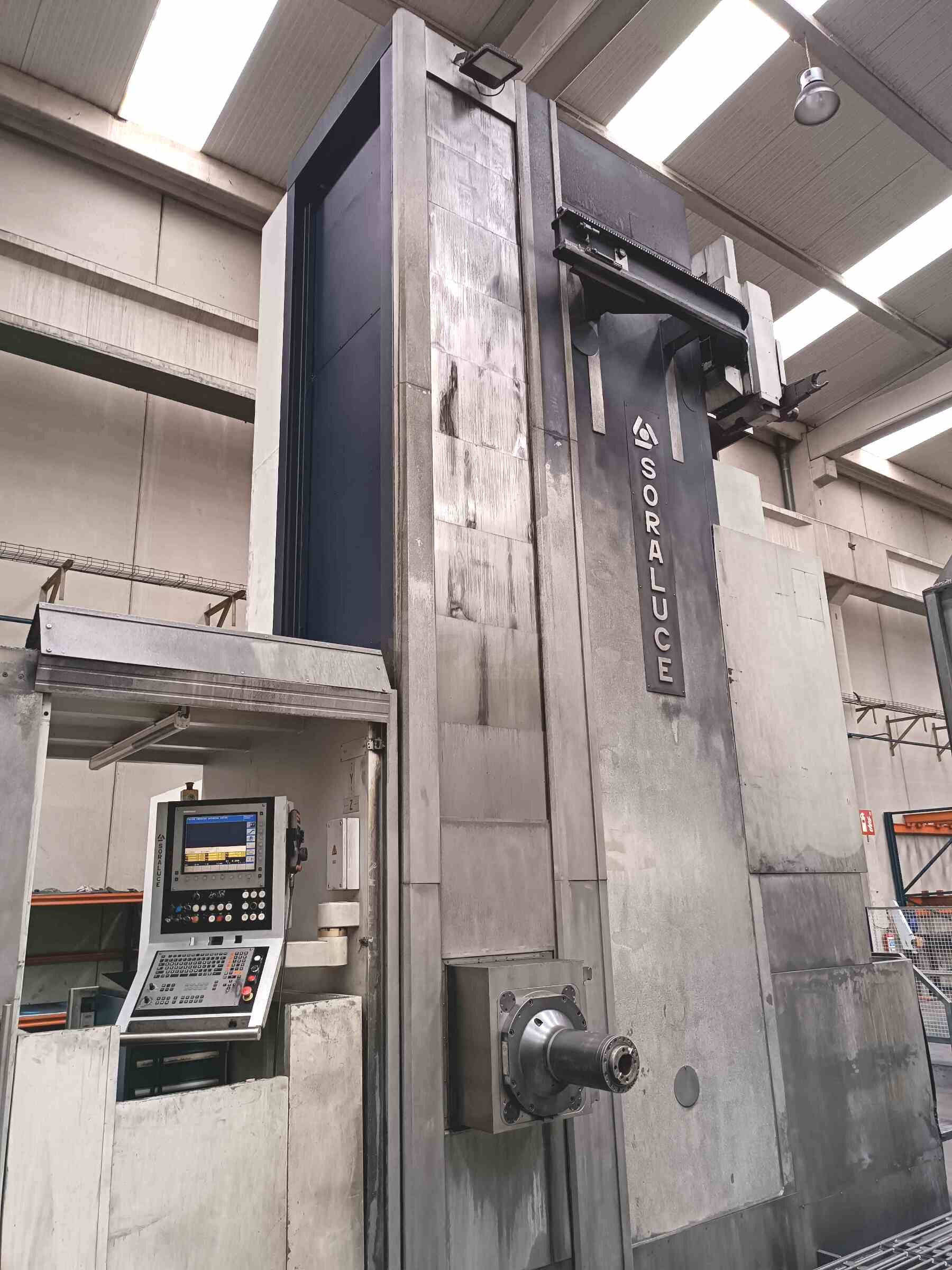

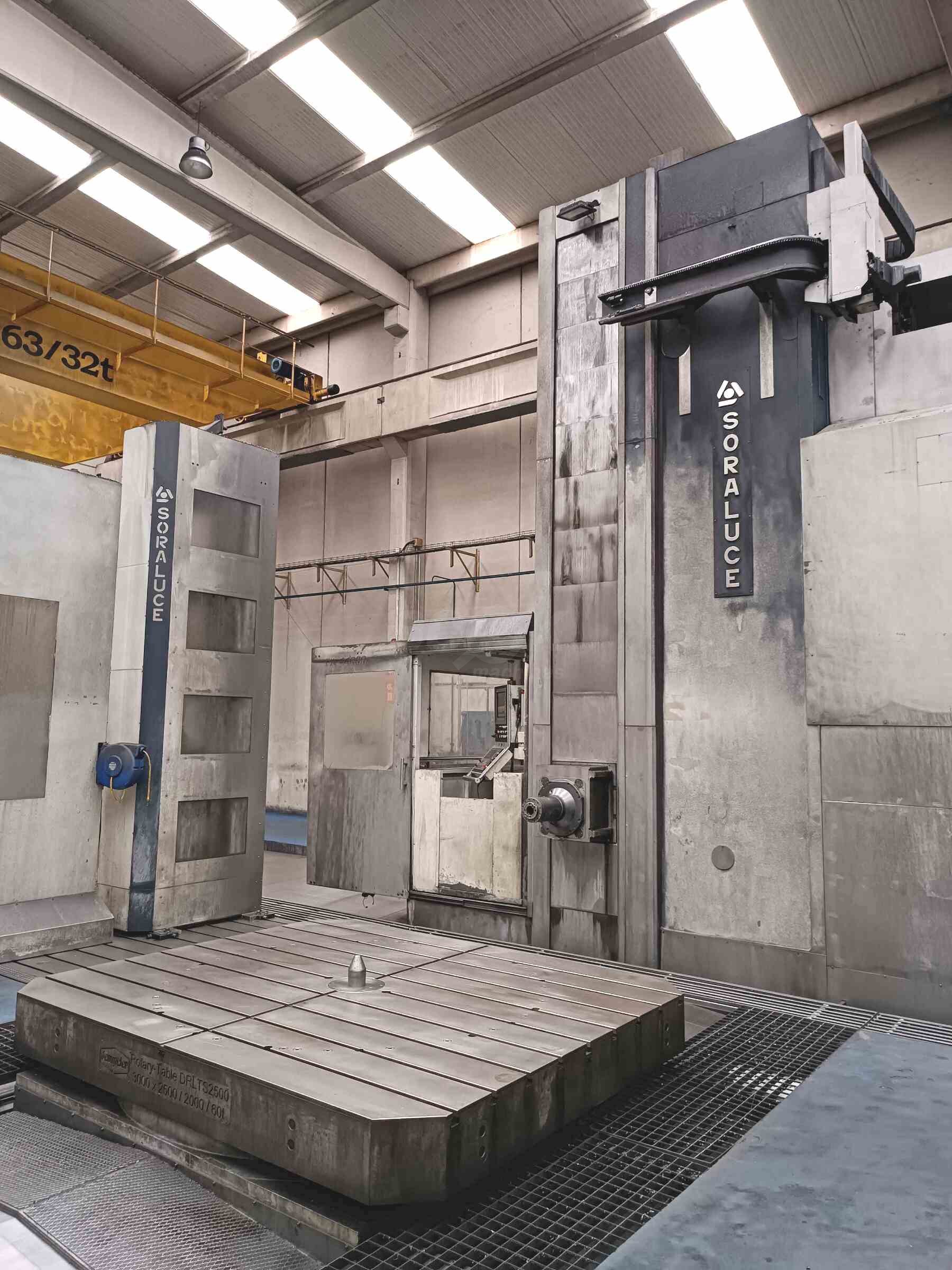

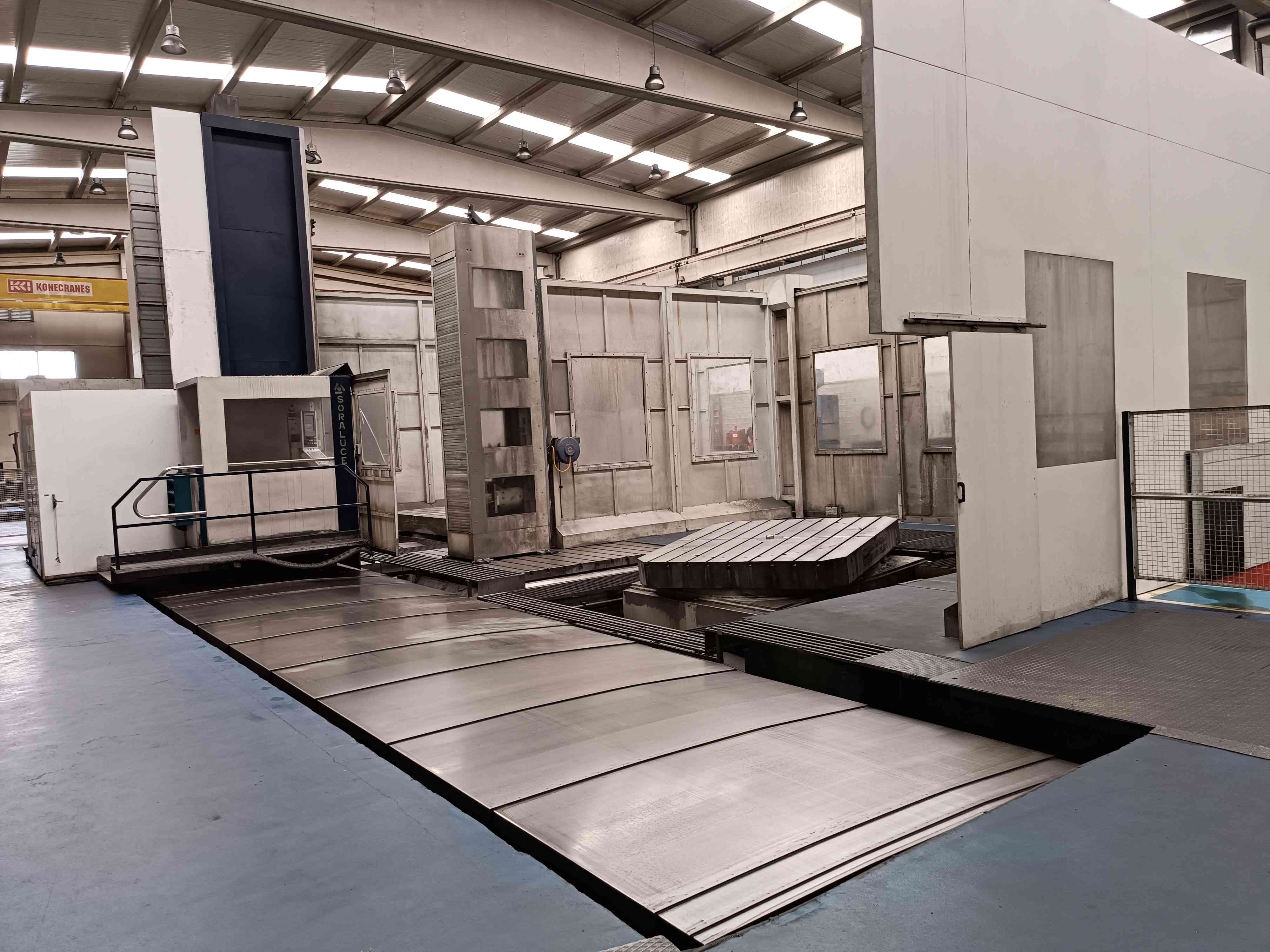

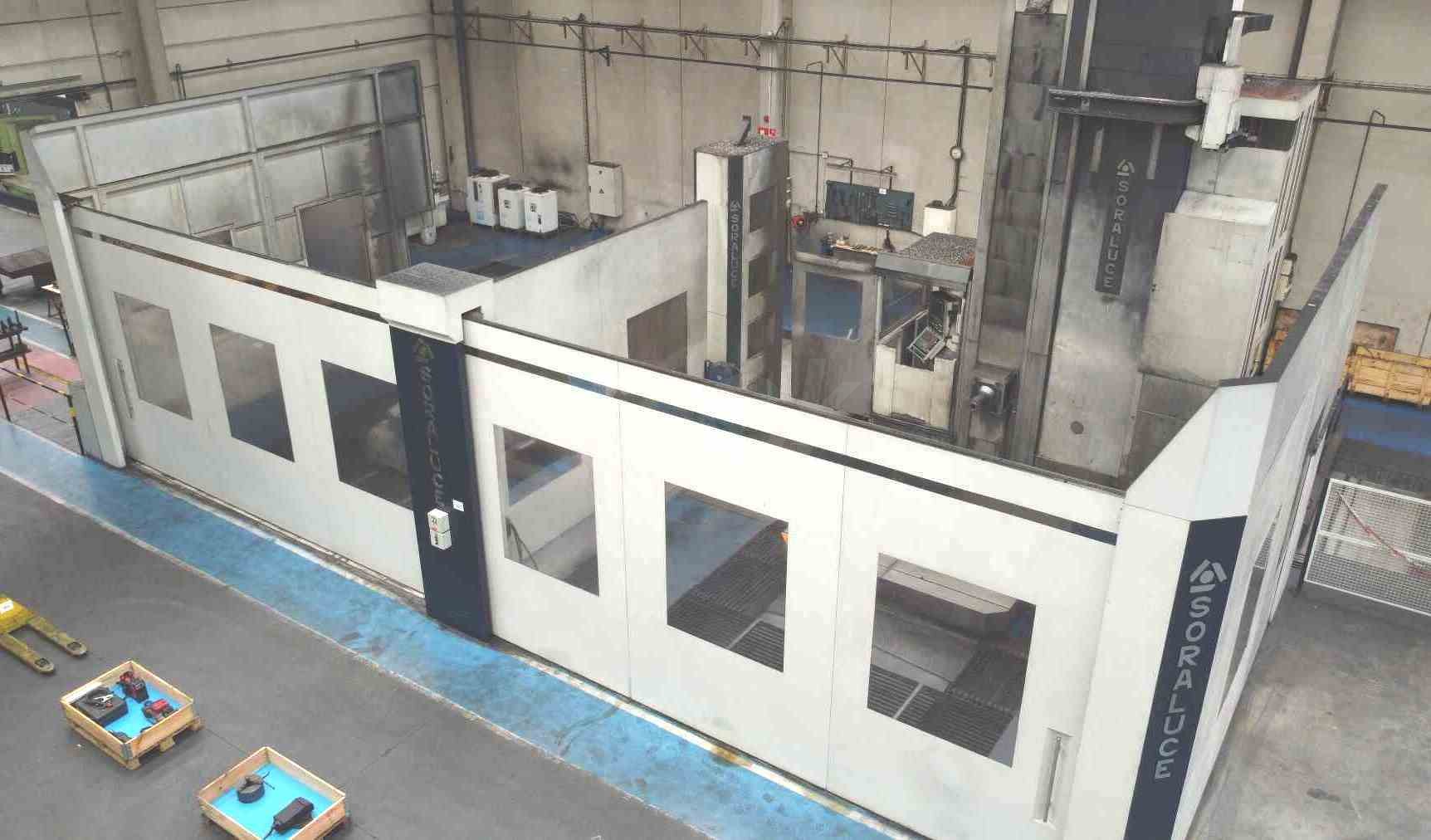

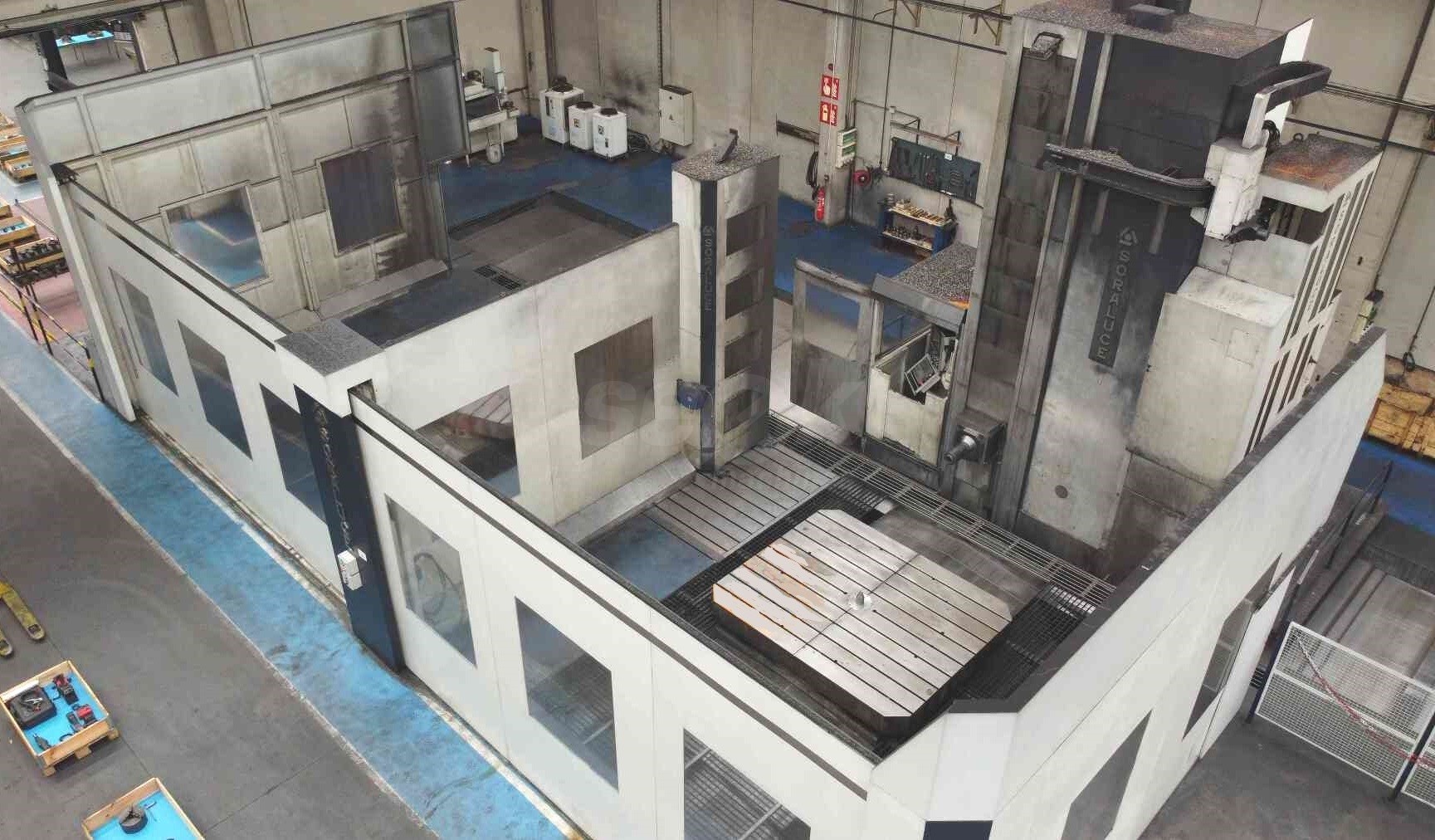

SORALUCE FX 14000 mobile column milling machine
Metal processing
FX 14000
SORALUCE Spain
Spain
Machine Details
Item Details
| Name | SORALUCE FX 14000 mobile column milling machine |
|---|---|
| Item Code | SM2504214 |
| Model No | FX 14000 |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | SORALUCE |
| Year of Manufacture | -- |
| Country of Origin | Spain |
| Posted On | 25-04-2025 |
| Machine Location | Spain |
Description
Reference: 073-C018
X-axis traverse: 14.000 mm
Y-axis traverse: 1.600 mm
Z-axis traverse: 4.800 mm
Pick-up of heads: Prepared for 4 heads

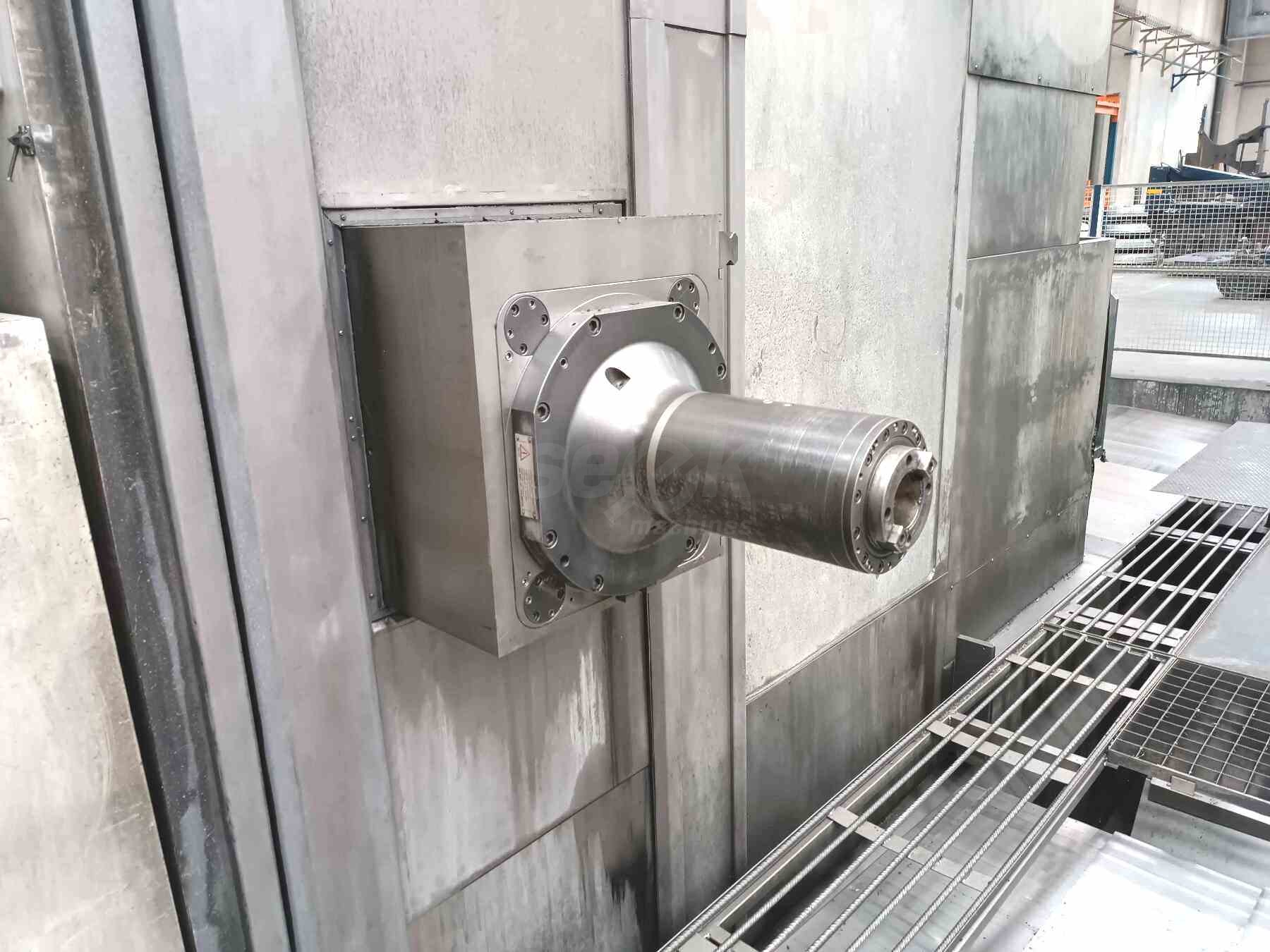

Boring head: direct outlet, reinforced
long. 400 mm. dia. 195 mm. 3000 rpm. Engine power 46 kw

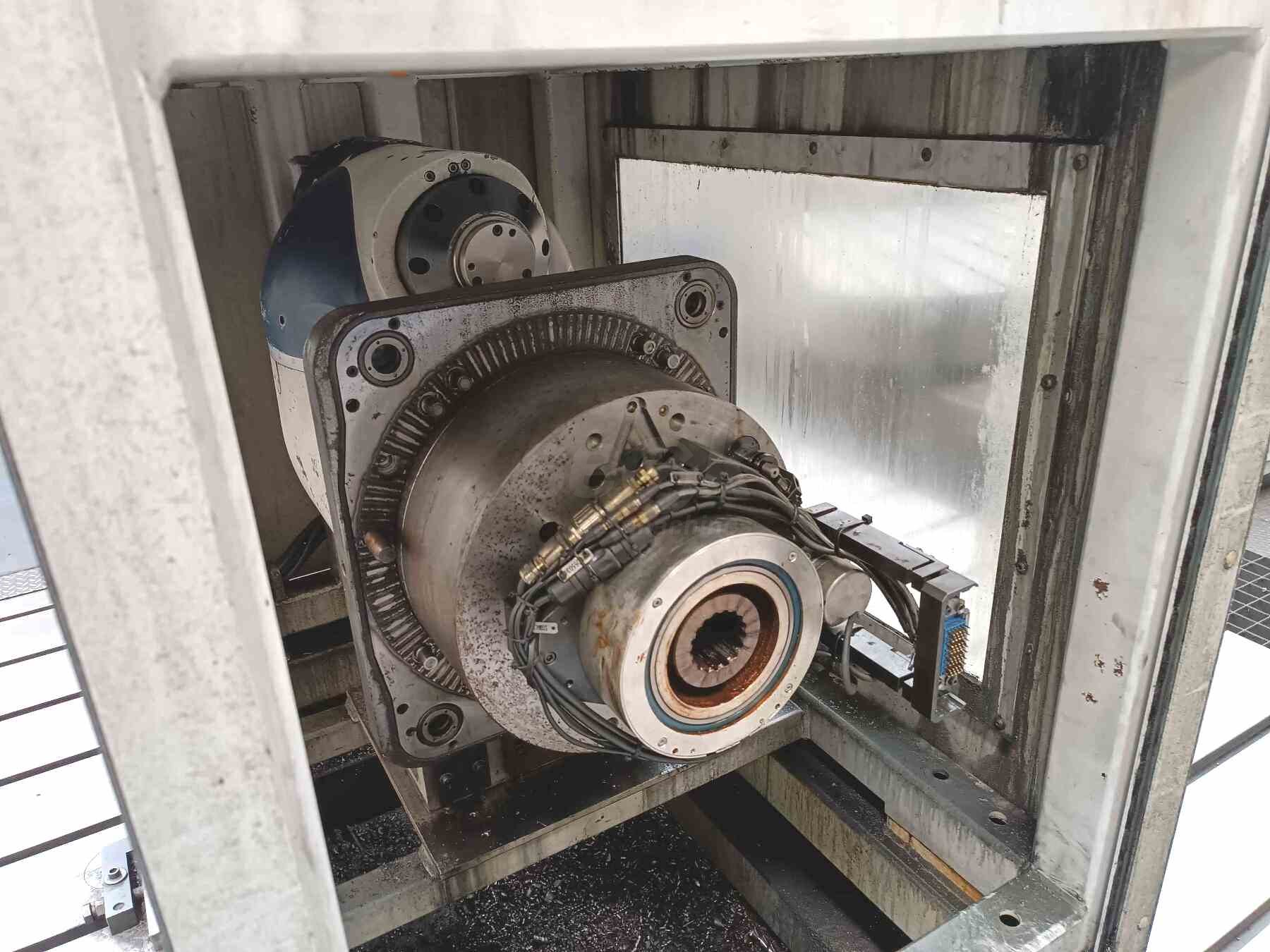

Orthogonal head indexable 1º-1º
cone DIN-69871-AD
4000 rpm. Engine power 46 kw
Feedrate: 10.000 mm/min
Rapid traverses: 25.000 mm/min
Year: 2009
Total power: 133 kva
Floor ocupation: 19880x12400x7350 mm.
Total weight 62 Tn.
Equipped with:

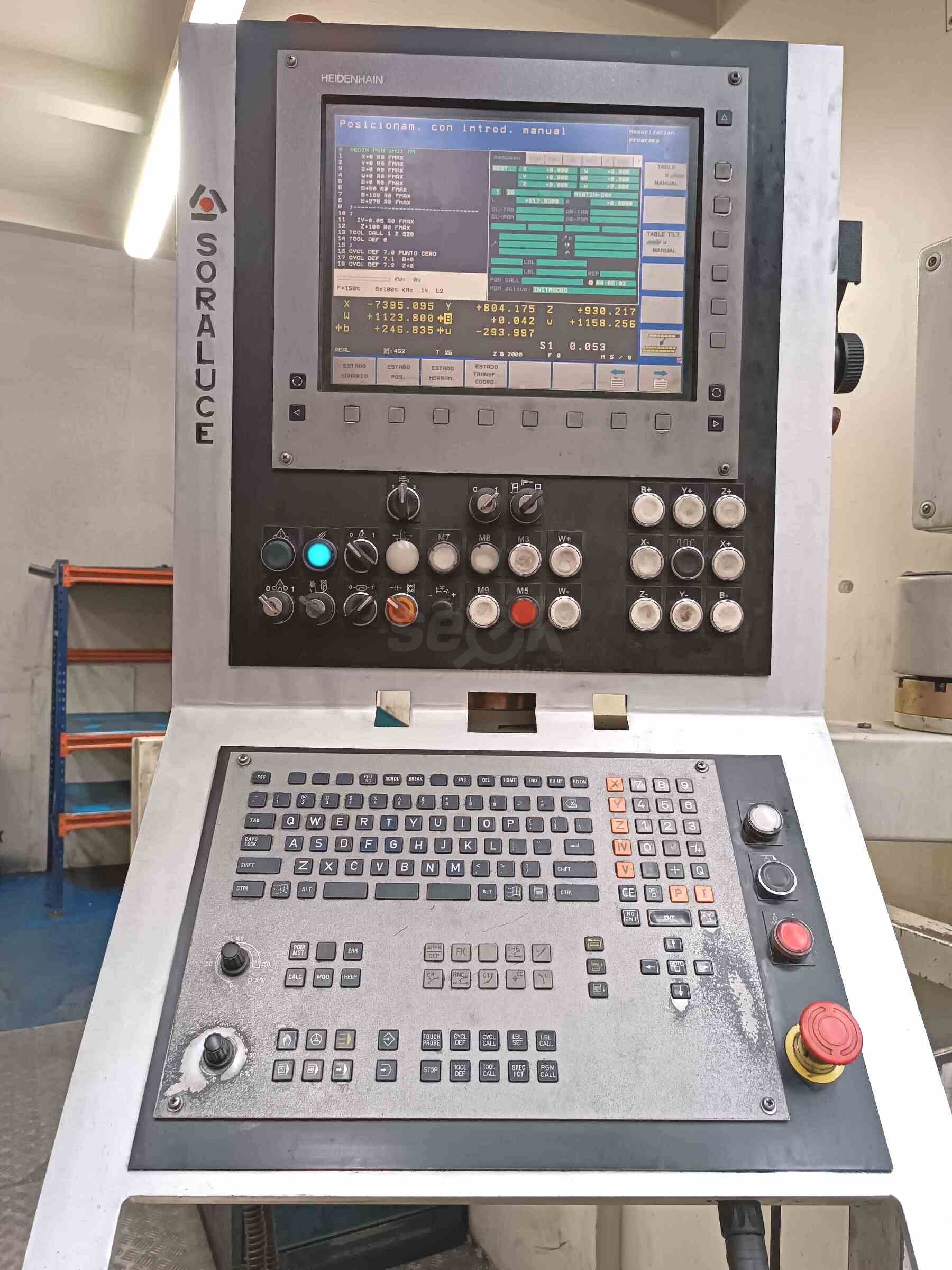

Control: HEIDENHAIN iTNC 530
Electronic handwheel: HEIDENHAIN HR 420
Tool magazine: 120 pcs type M, horizontal, hmta weight. 30 kgs.
HEIDENHAIN TT-140 Stylus Yes, for tool measurement
Coolant supply: internal, 30 bar variator. with paper filter tank

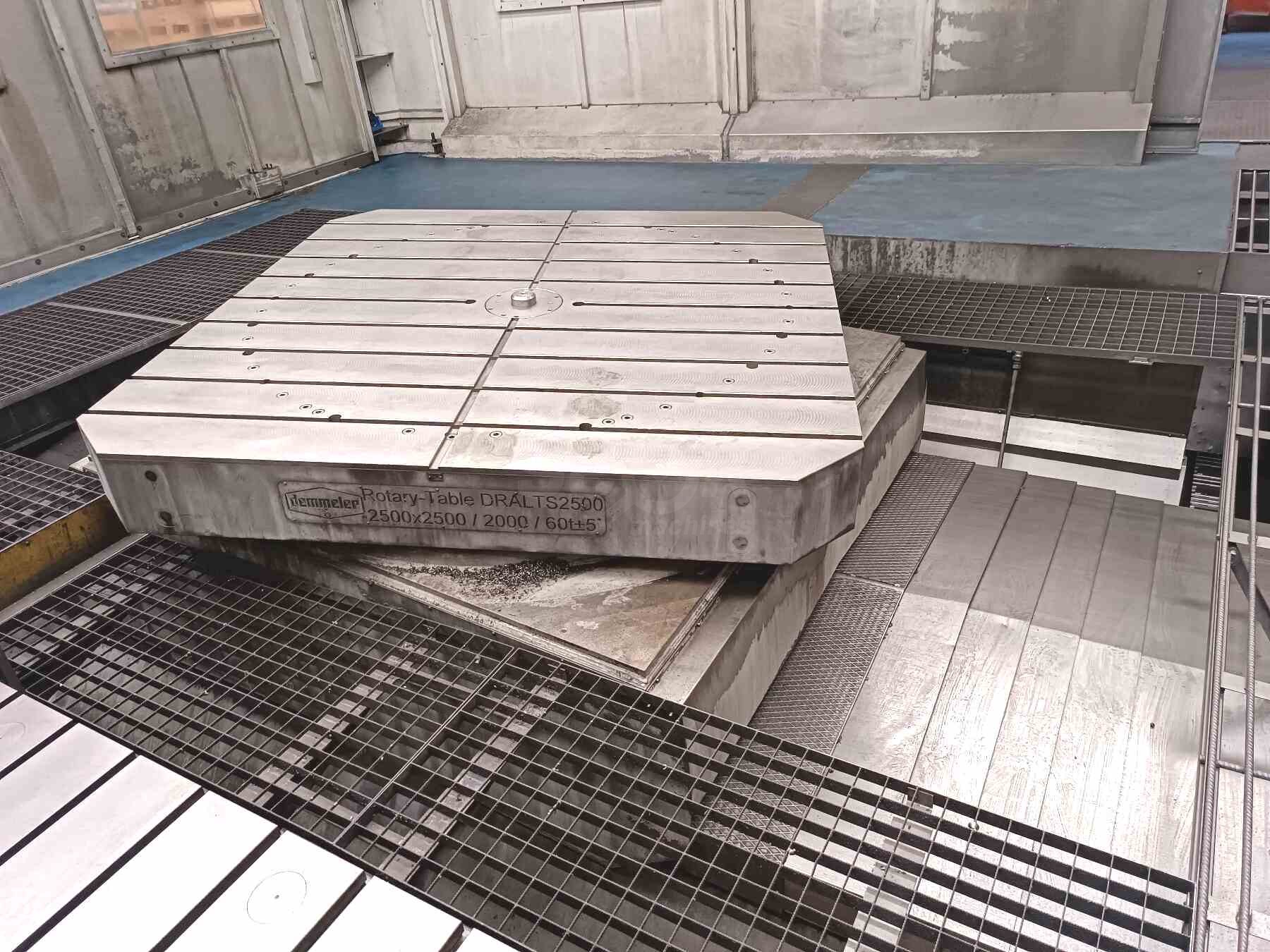

1 Motorized Drotting Table ± 5º DEMMELER DRALT2500 2500x2500 . recorrido 2000 mm. Peso max. 60 tn.
1 Mesa RootaSlante: DEMMELER DRLTS2500,
3000x2500 . recorrido 2000 mm. Peso max. 60 tn.
1 base plate: 3500x2500x300 mm. carga max. 15 Tn/m2
Chip conveyor: Yes

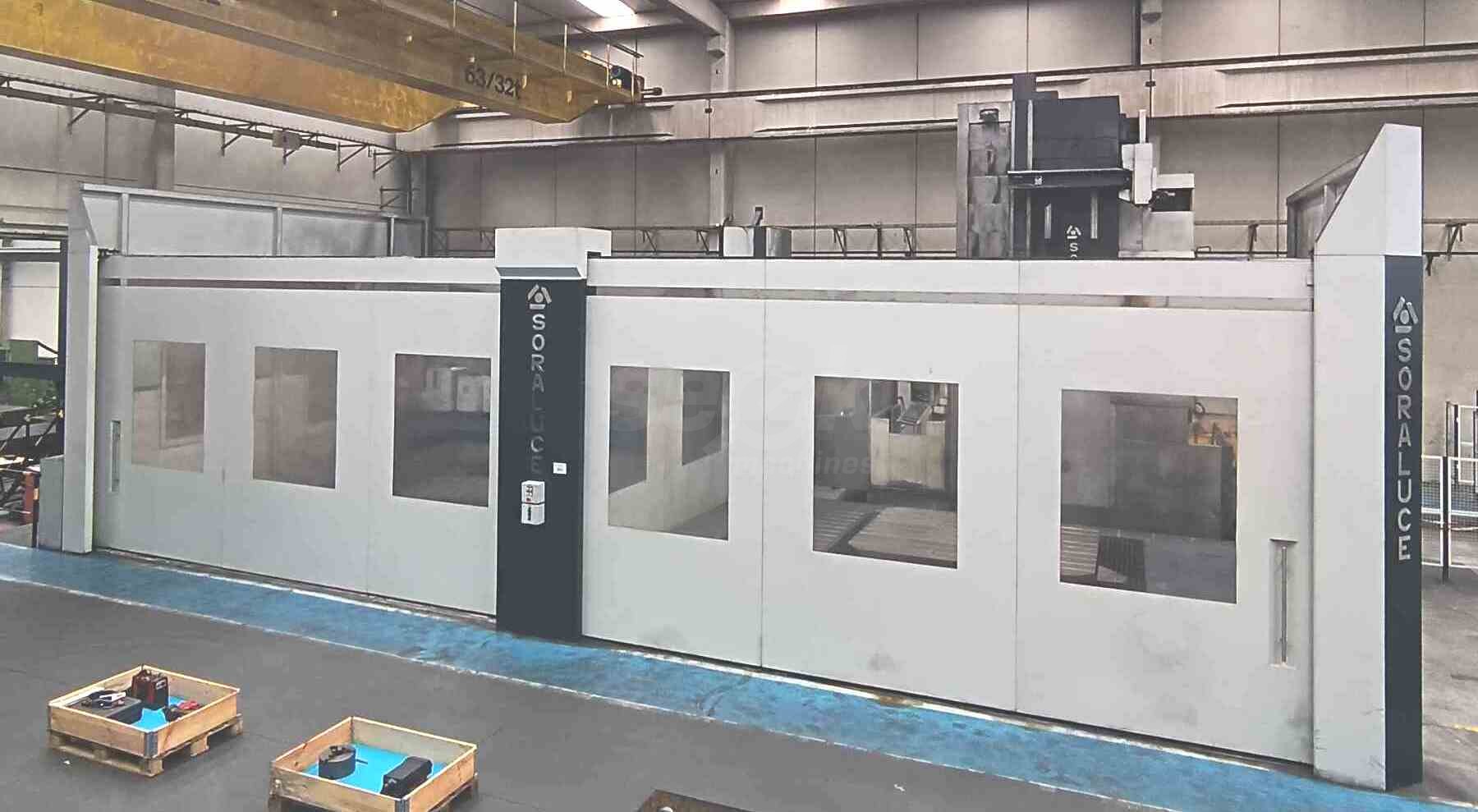

Splash guard: complete against projections on the front and both sides
Platform for the operator: Yes, max height. 3600mm
Technical Specifications
| X-axis traverse: | 14.000 mm |
|---|---|
| Y-axis traverse: | 1.600 mm |
| Z-axis traverse: | 4.800 mm |
| Pick-up of heads: | Prepared for 4 heads |
| Boring head: | direct outlet, reinforced long. 400 mm. dia. 195 mm. 3000 rpm. Engine power 46 kw |
| Orthogonal head | ndexable 1º-1º cone DIN-69871-AD 4000 rpm. Engine power 46 kw |
| Feedrate: | 10.000 mm/min |
| Rapid traverses: | 25.000 mm/min |
| Year: | 2009 |
| Total power: | 133 kva |
| Control: | HEIDENHAIN iTNC 530 |
| Electronic handwheel: | HEIDENHAIN HR 420 |
| Tool magazine: | 120 pcs type M, horizontal, hmta weight. 30 kgs. |
| HEIDENHAIN TT-140 Stylus | Yes, for tool measurement |
| Coolant supply: | internal, 30 bar variator. with paper filter tank |
| 1 Motorized Drotting Table ± 5º | DEMMELER DRALT2500 2500x2500 . recorrido 2000 mm. Peso max. 60 tn. |
