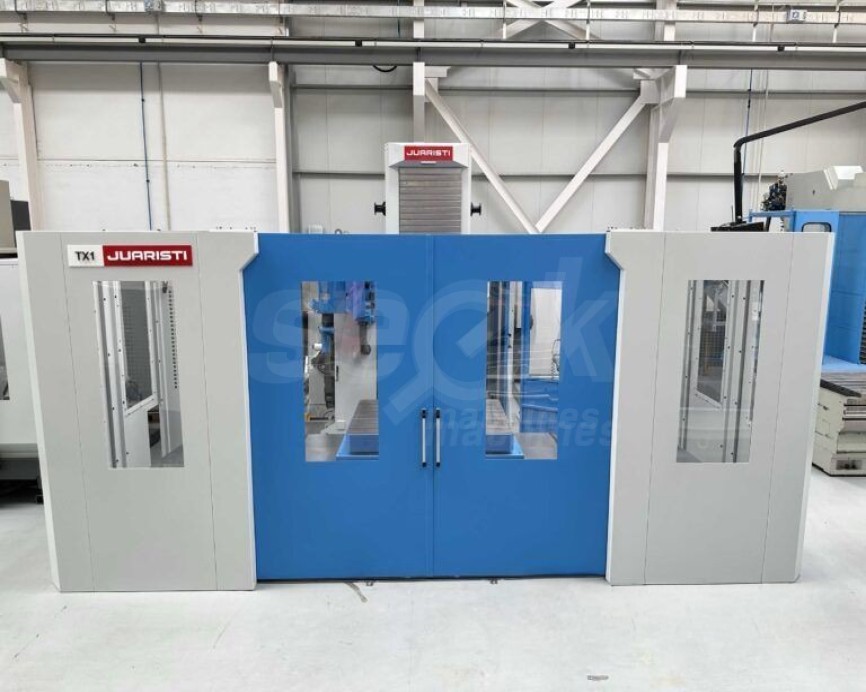

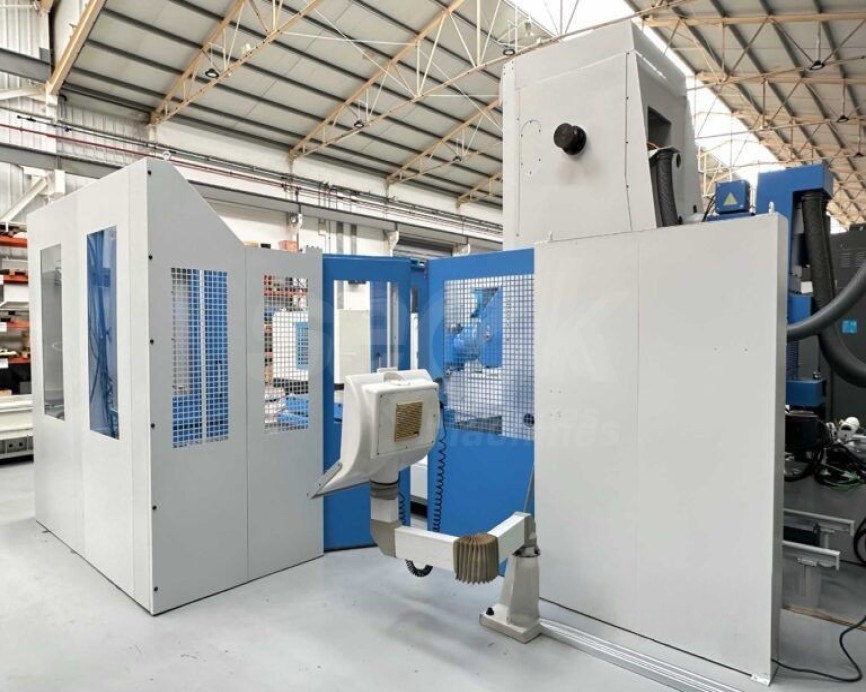

Juaristi TX-1D Planner type milling machine
Metal processing
TX-1D
Juaristi Spain
2008 Spain
Machine Details
Item Details
| Name | Juaristi TX-1D Planner type milling machine |
|---|---|
| Item Code | SM2504210 |
| Model No | TX-1D |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Juaristi |
| Year of Manufacture | 2008 |
| Country of Origin | Spain |
| Posted On | 25-04-2025 |
| Machine Location | Spain |
Description
Manufacturer JUARISTI
Model TX1-D
Year 2008
CNC HEIDENHAIN TNC-530

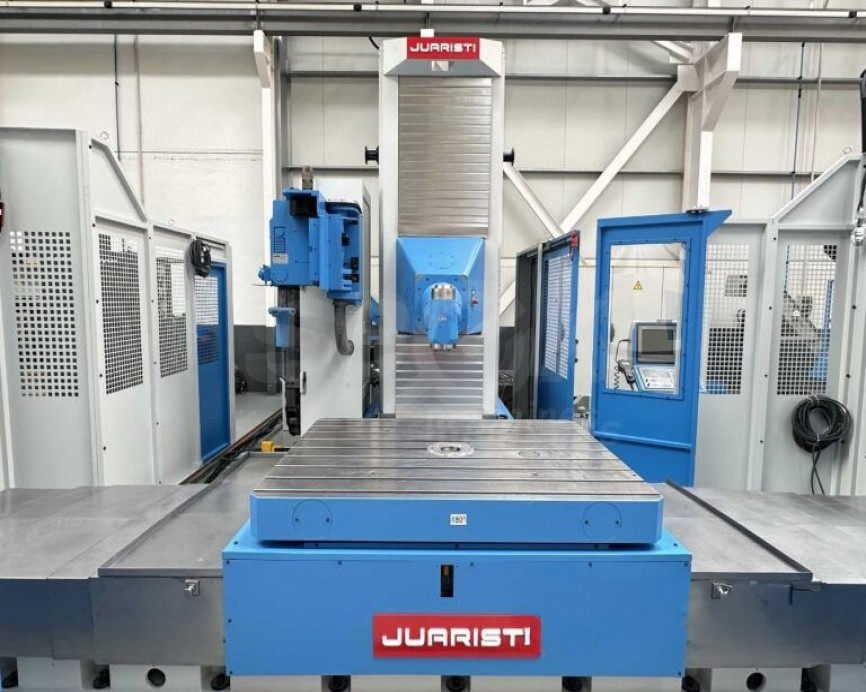

Table
Table type Juaristi MG-6
Table Surface 1.250 x 1.600 mm.
Max allowed weight on table 5.000 kg.
Table Rotation (B Axis) 0.001º 360.000 pos.
Travels
Table travel (X axis) 2.700 mm.
Vertical travel (Y axis) 1.500 mm.
Cross travel (Z Axis) 1.500 mm.
Controlled Axis X, Y, Z, B
Rapid Traverse 25.000 mm/min

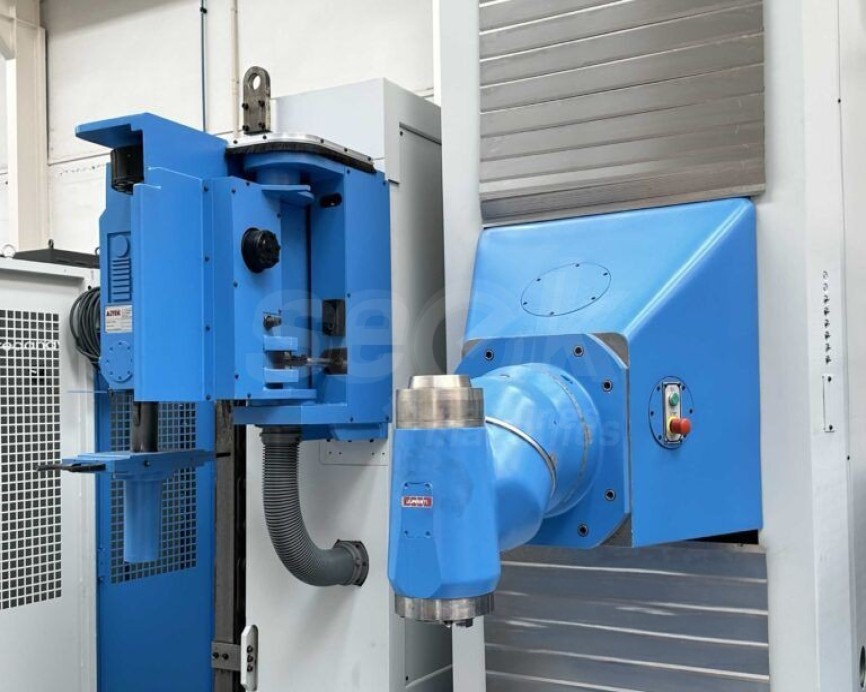

Head
Head type Birrotativo 2, 5º / 2, 5º
Taper ISO 50 DIN 69871/1-AD
Speed 871-3.000 rpm
Speed ranges 2
Lower range 5-871 rpm
Upper range 871-3.000 rpm
Max. spindle power 37 kW
Max. spindle torque 1646 Nm.
Additional equipment
Automatic tool changer ( ATC) INCLUDED
ATC positions 40
Chip conveyor INCLUDED
Measure Probe Piece INCLUDED
Tool External Coolant INCLUDED
Tool Internal Coolant 20 BAR INCLUDED
Integral protecting guards INCLUDED
Main Axis Orientation INCLUDED
Portable Handwheel HEIDENHAIN HR-410
Machine Colour RAL 7035 / RAL 5015
Motor type SIEMENS
Machine hours
CNC on 22.589
Machine on 22.131
Program 6.851
Others
Total Power Required 80 kVA.
