Juaristi TS 3-MG 12 CNC Borning and Milling machine
Metal processing
TS 3 - mg 12
Juaristi Spain
2009 Spain
Machine Details
Item Details
| Name | Juaristi TS 3-MG 12 CNC Borning and Milling machine |
|---|---|
| Item Code | SM2504209 |
| Model No | TS 3 - mg 12 |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Juaristi |
| Year of Manufacture | 2009 |
| Country of Origin | Spain |
| Posted On | 25-04-2025 |
| Machine Location | Spain |
Description
Manufacturer JUARISTI
Model TS 3-MG 12
Year 2009
CNC HEIDENHAIN i TNC-530

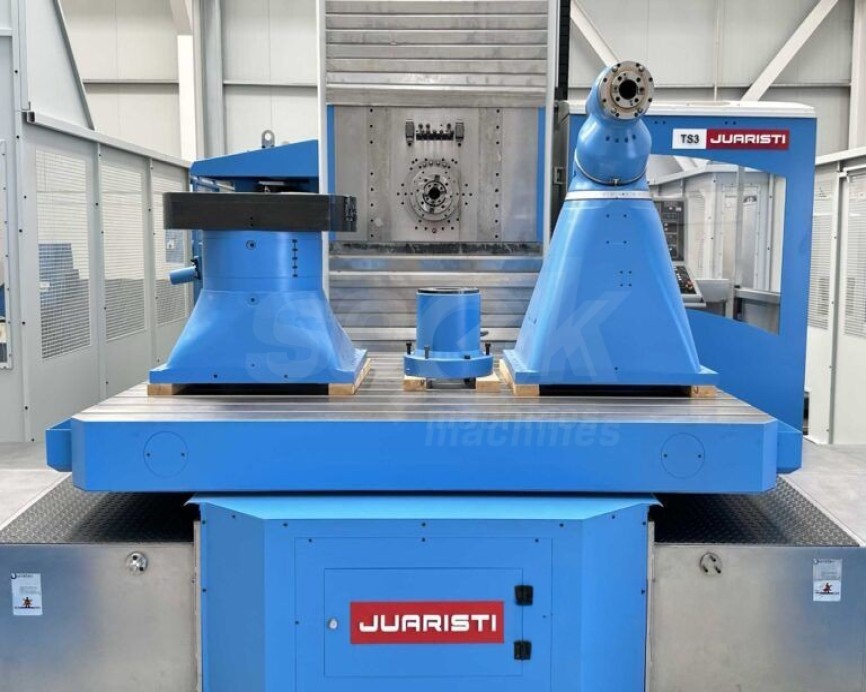

Rotary table
Type Juaristi MG-12
Table Surface 2.000 x 2.500 mm.
T Slots 11
T Slot distance 170 mm.
Max weight allowed on table 8.000 kg
Table Rotation (B Axis) Continuo – 0,001º
Travels
Longitudinal travel (Z Axis) 2.475 mm.
Axial travel (W Axis) 800 mm.
Vertical travel (Y Axis) 2.500 mm.
Cross travel (X Axis) 3.000 mm.
5 controlled axes X, Y, Z, W, B, U
Main Spindle
Quill Diameter 130 mm.
Speed 3.000 rpm
Main Axis Orientation INCLUDED
Taper ISO 50 DIN 69871/1-B
Milling head
Type INCLUDED
Head Power 30 kW
Speed Ranges 2
Turning Speeds 0-2.500 rpm

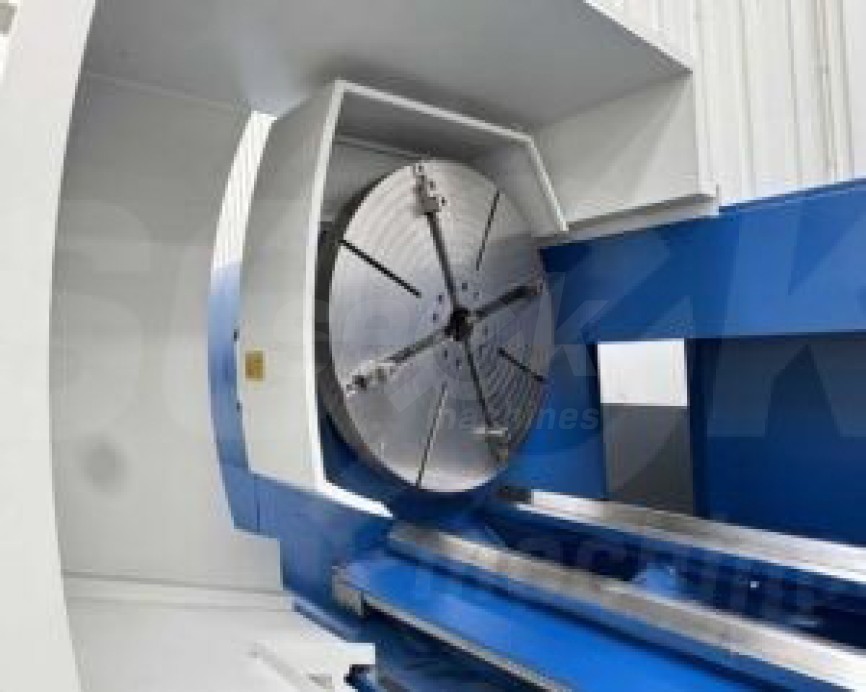

Boring head Andrea
Chuck model D`ANDREA UT5-800-S
Head Ø Ø 800 mm
Cross Axis Travel 250 mm.
Automatic tool changer
ATC Type Horizontal / Vertical
ATC Positions 30
Other equipment

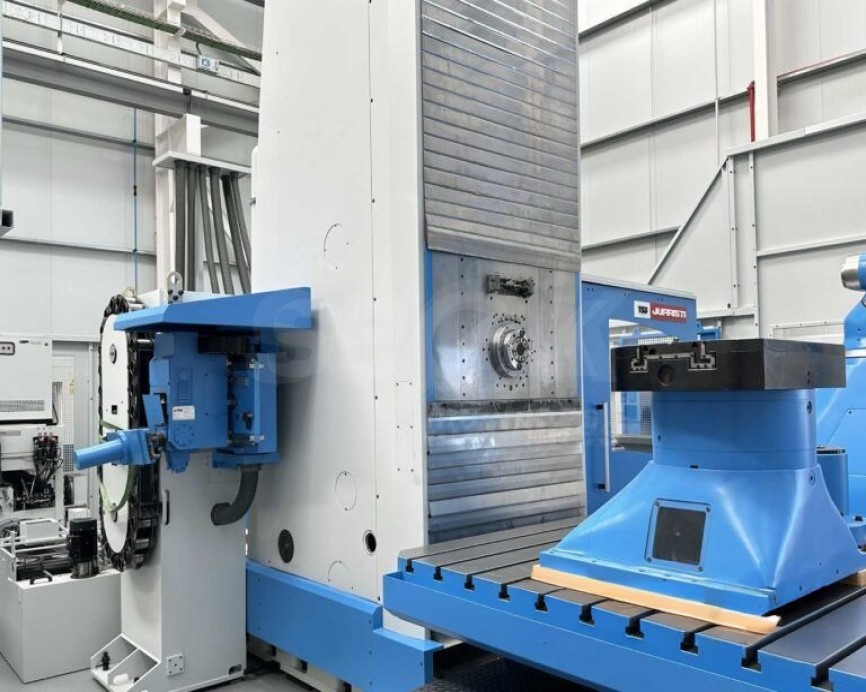

TS-3 head, TS-5 column and longitudinal bed INCLUDED
Part touch probe RENISHAW RMP-60
External coolant INCLUDED
Internal coolant INCLUDED

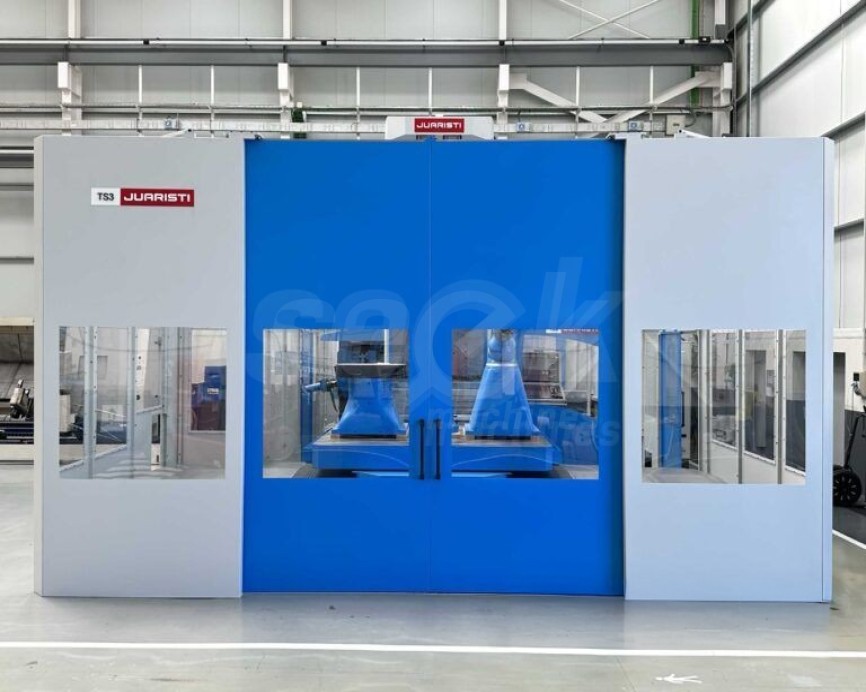

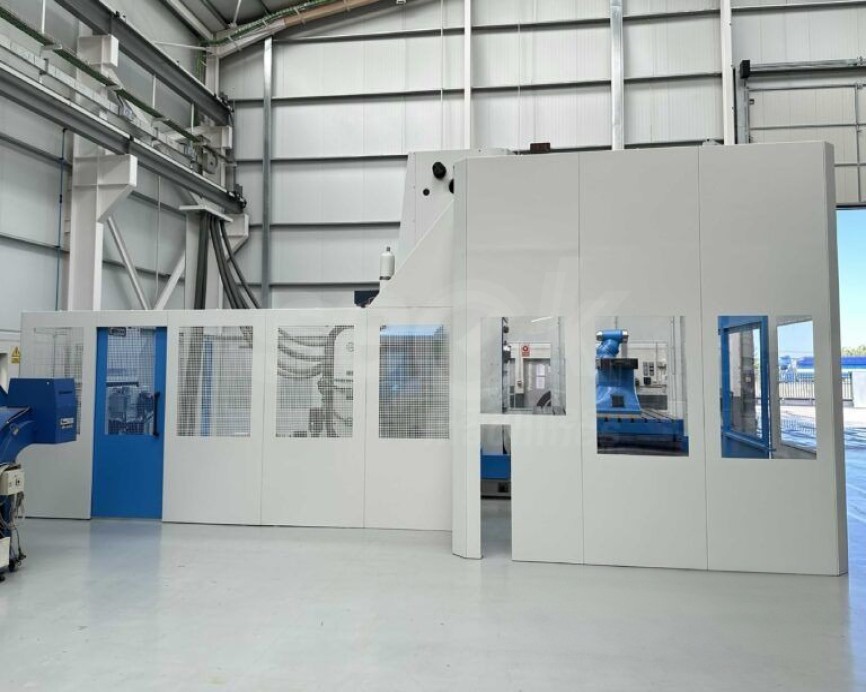

Complete protecting guards INCLUDED
Mobile operator platform for control panel INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel HEIDENHAIN HR-420
Others
Machine Colour RAL 7035 / RAL 5008
Machine Weight 45.000 kg.
Machine Dimenssions (L x W x H) 9.800×7.320×5.500 mm.
