HORSEMAC CNC Door Side Drilling Machine (Heavy Duty)
Wood Working
HM-2800
HORSEMAC China
2025 United Arab Emirates
SM2605763
This ad is for only Gold
and above
Machine Details
Item Details
| Name | HORSEMAC CNC Door Side Drilling Machine (Heavy Duty) |
|---|---|
| Item Code | SM2605763 |
| Model No | HM-2800 |
| Serial No | 25051401 |
| Usage | new |
| Industry | Wood Working |
| Manufacturer | HORSEMAC |
| Year of Manufacture | 2025 |
| Country of Origin | China |
| Posted On | 08-05-2026 |
| Machine Location | United Arab Emirates |
Description

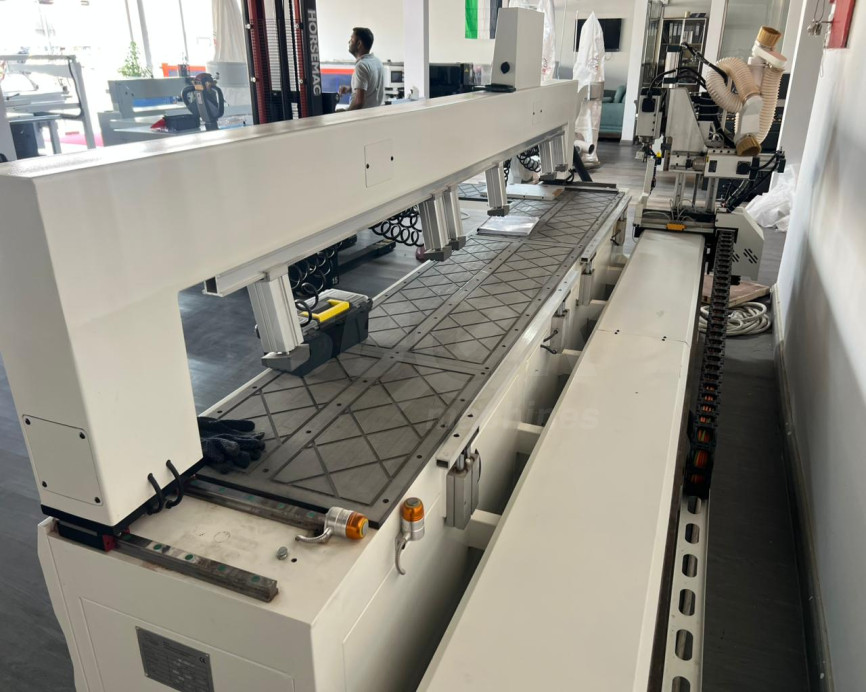

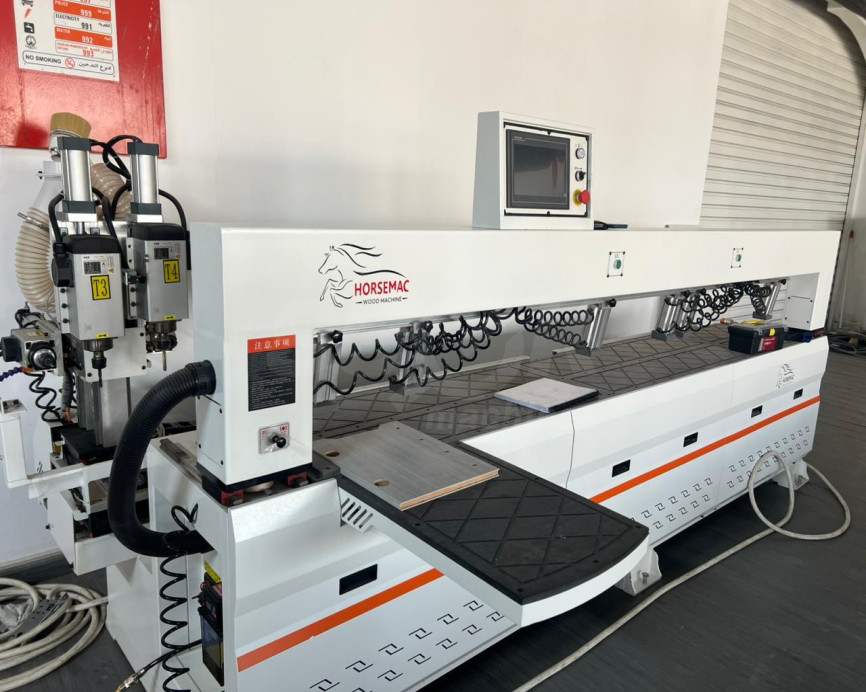

high-performance CNC through-feed drilling and boring center designed for mass production of panel-based furniture (cabinets, wardrobes, and office furniture).
Manufactured in 2025. Brand new machine.

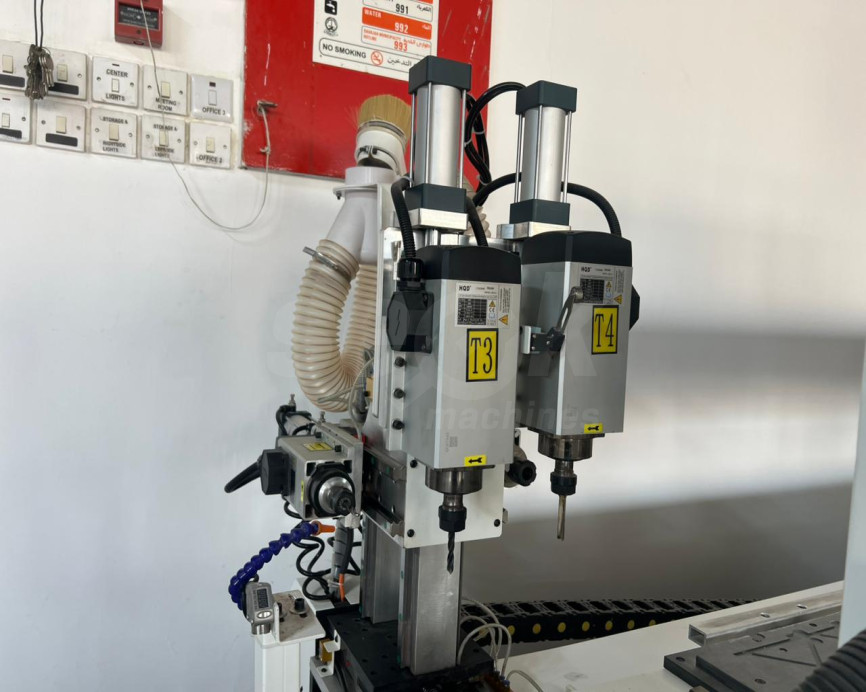

This machine offers automation with a multi-spindle configuration that allows for simultaneous vertical and horizontal drilling.
Features a heavy-duty frame (1,000 kg) and an intuitive touchscreen PLC interface for rapid setup and high-repeatability accuracy.
Contact now for viewing
Technical Specifications

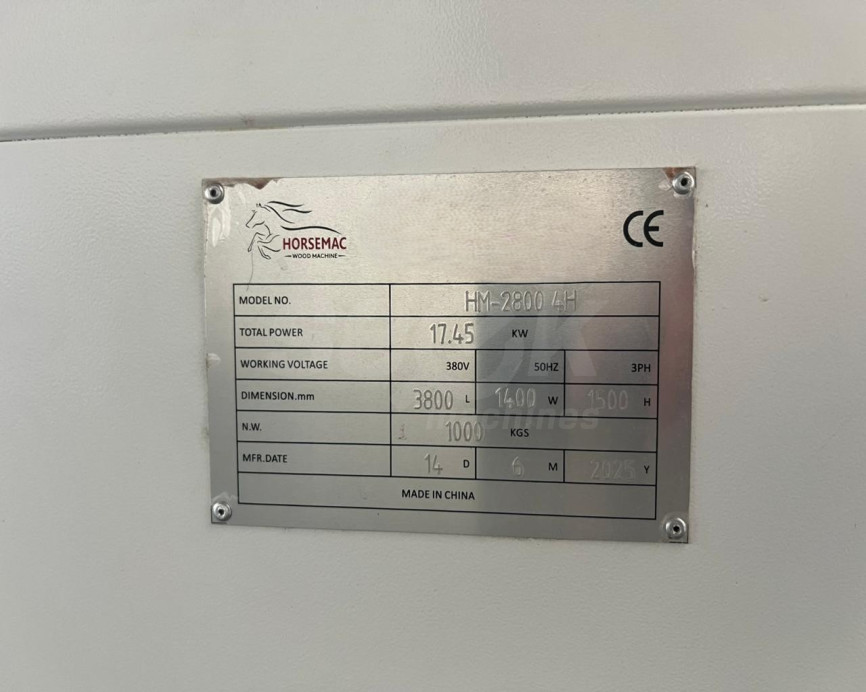

| Max Processing Length | 2800 mm |
|---|---|
| Max Processing Thickness | 10 – 100 mm |
| Spindle Motors | 1x 6kW; 1x 3.5kW; 2x 2.2kW |
| Servo Motors | 0.75kW x 3 pcs |
| Total Power | 17.45 kW |
| Voltage | 380V / 50Hz / 3 Phase |
| Overall Dimensions | 3800 x 1400 x 1500 mm (L x W x H) |
