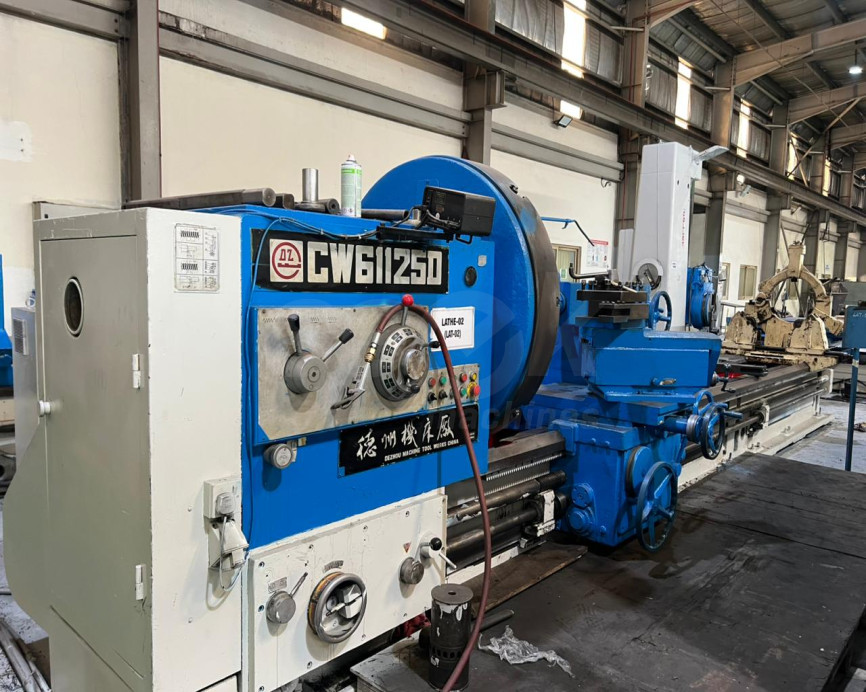

Heavy Duty Conventional Lathe
Metal working
CW61125D
China China
2001 United Arab Emirates
Machine Details
Item Details
| Name | Heavy Duty Conventional Lathe |
|---|---|
| Item Code | SM2605747 |
| Model No | CW61125D |
| Serial No | -- |
| Usage | used |
| Industry | Metal working |
| Manufacturer | China |
| Year of Manufacture | 2001 |
| Country of Origin | China |
| Posted On | 04-05-2026 |
| Machine Location | United Arab Emirates |
Description
Perfect for turning heavy end-faces, large cylindrical surfaces, and massive internal bores.
It is fully capable of cutting complex Metric, Inch, Module, and Pitch threads with exceptional accuracy.
With a massive 1,290 mm swing over bed and an impressive 6-ton loading weight capacity between centers.
Machine is in good working condition.
Ready for immediate deployment in heavy manufacturing, oil and gas workshops, or large-scale repair facilities.
Technical Specifications
| Max. Swing Diameter over Bed | 1,290 mm |
|---|---|
| Max. Swing Diameter over Carriage | 900 mm |
| Max. Swing Diameter in Gap | 1,750 mm |
| Width of Bed | 755 mm |
| Max. Workpiece Weight (Between Centers) | 6 Tons (6,000 kg) |
| Spindle Bore Diameter | 120 mm / 130 mm |
| Spindle Speed Range | 3.15 – 315 RPM (Clockwise, 21 steps) |
| Main Motor Power | 22 kW |
| Tailstock Quill Diameter / Travel | 160 mm / 300 mm |
| Tailstock Taper | MT6 / Metric No. 80 |
| Feed Ranges | 56 kinds of Longitudinal & Transversal feeds |
| Thread Cutting Capabilities | Metric, Inch, Module, and Pitch threads |
