Hardness Tester
Metal processing
HTVS 2.0
Echo Lab Italy
2016 United Arab Emirates
SM2501111
This ad is for only Silver
and above
Machine Details
Item Details
| Name | Hardness Tester |
|---|---|
| Item Code | SM2501111 |
| Model No | HTVS 2.0 |

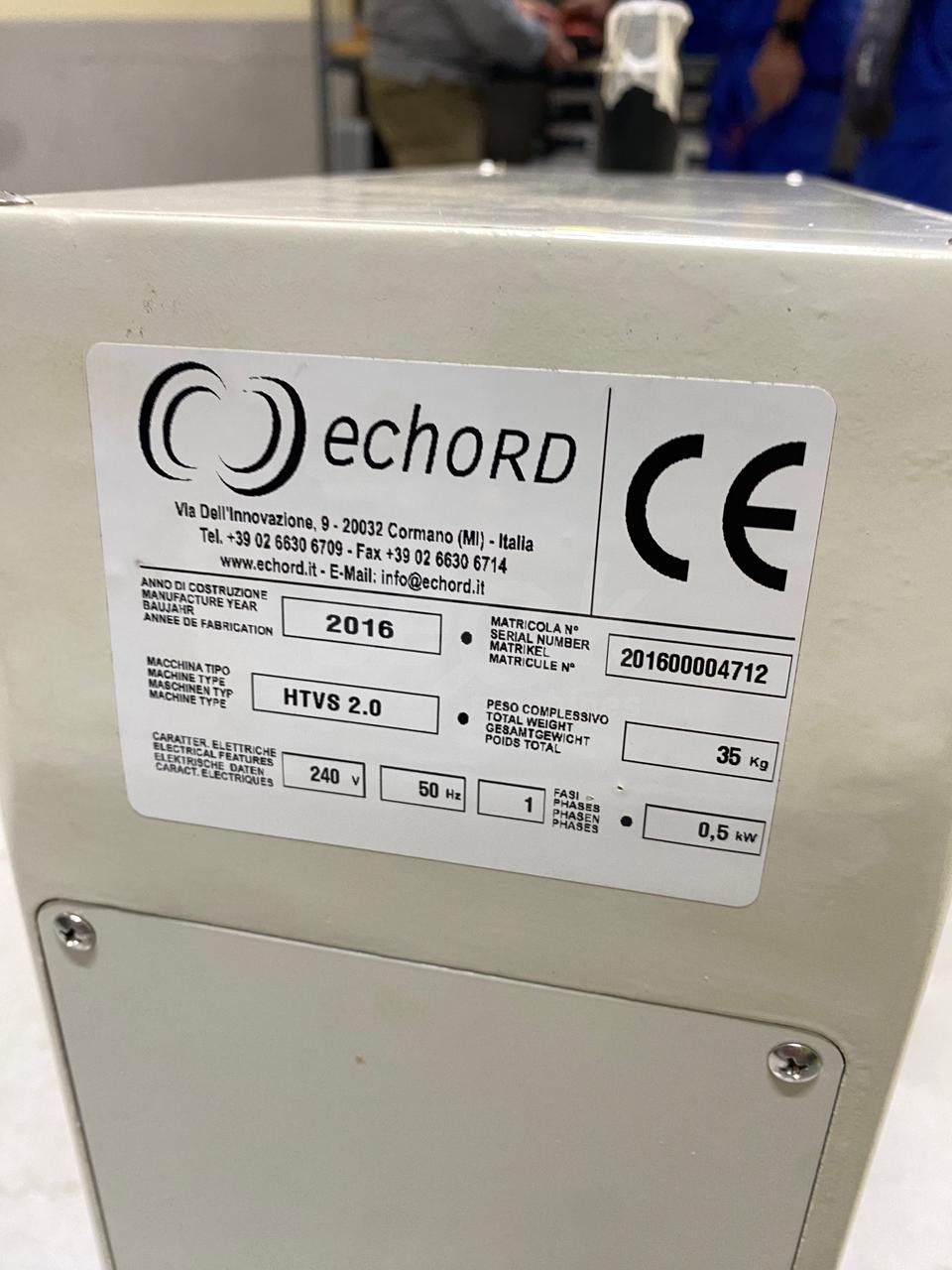

| Serial No | 201600004712 |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Echo Lab |
| Year of Manufacture | 2016 |
| Country of Origin | Italy |
| Posted On | 27-01-2025 |
| Machine Location | United Arab Emirates |
Description

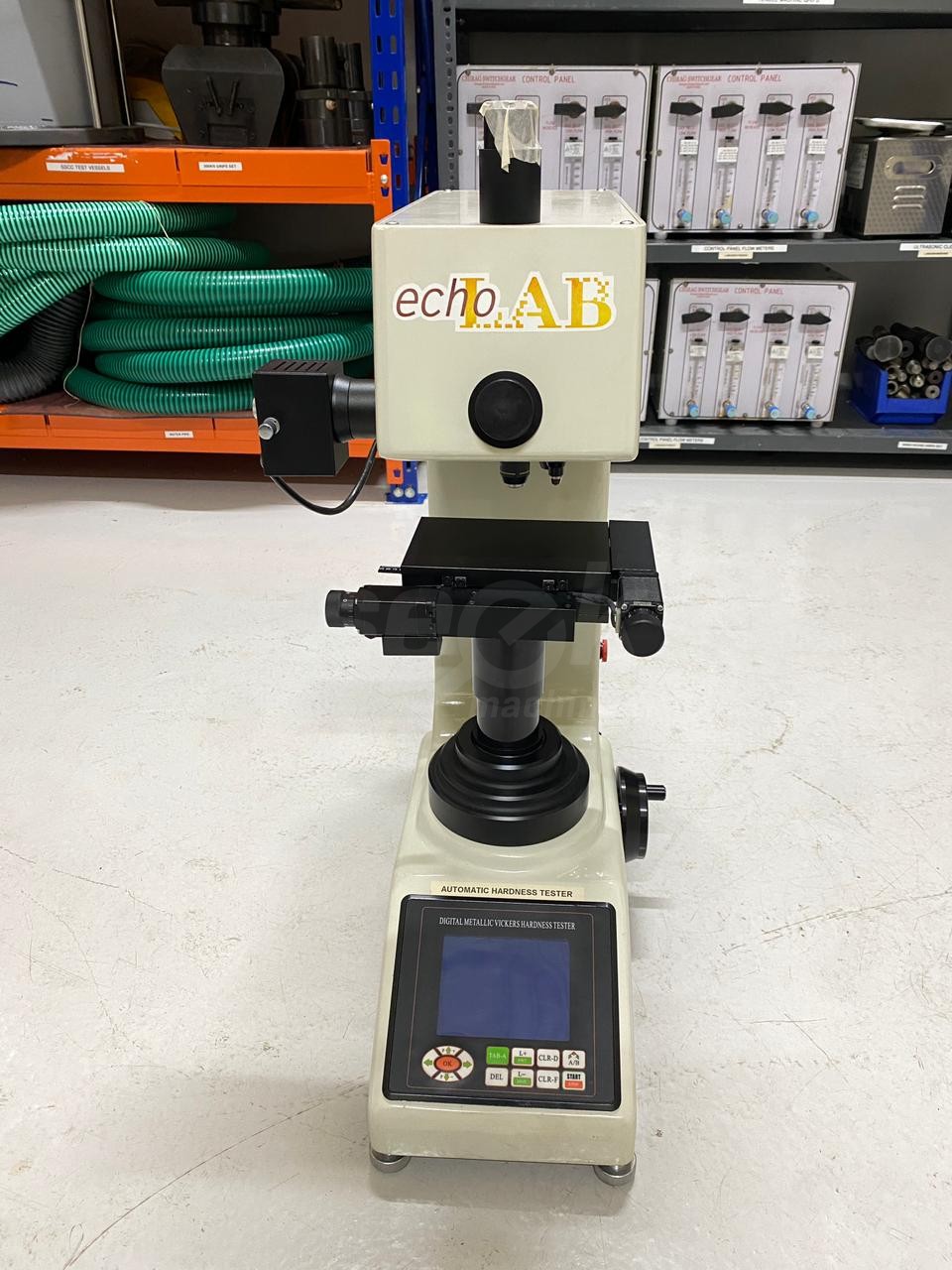

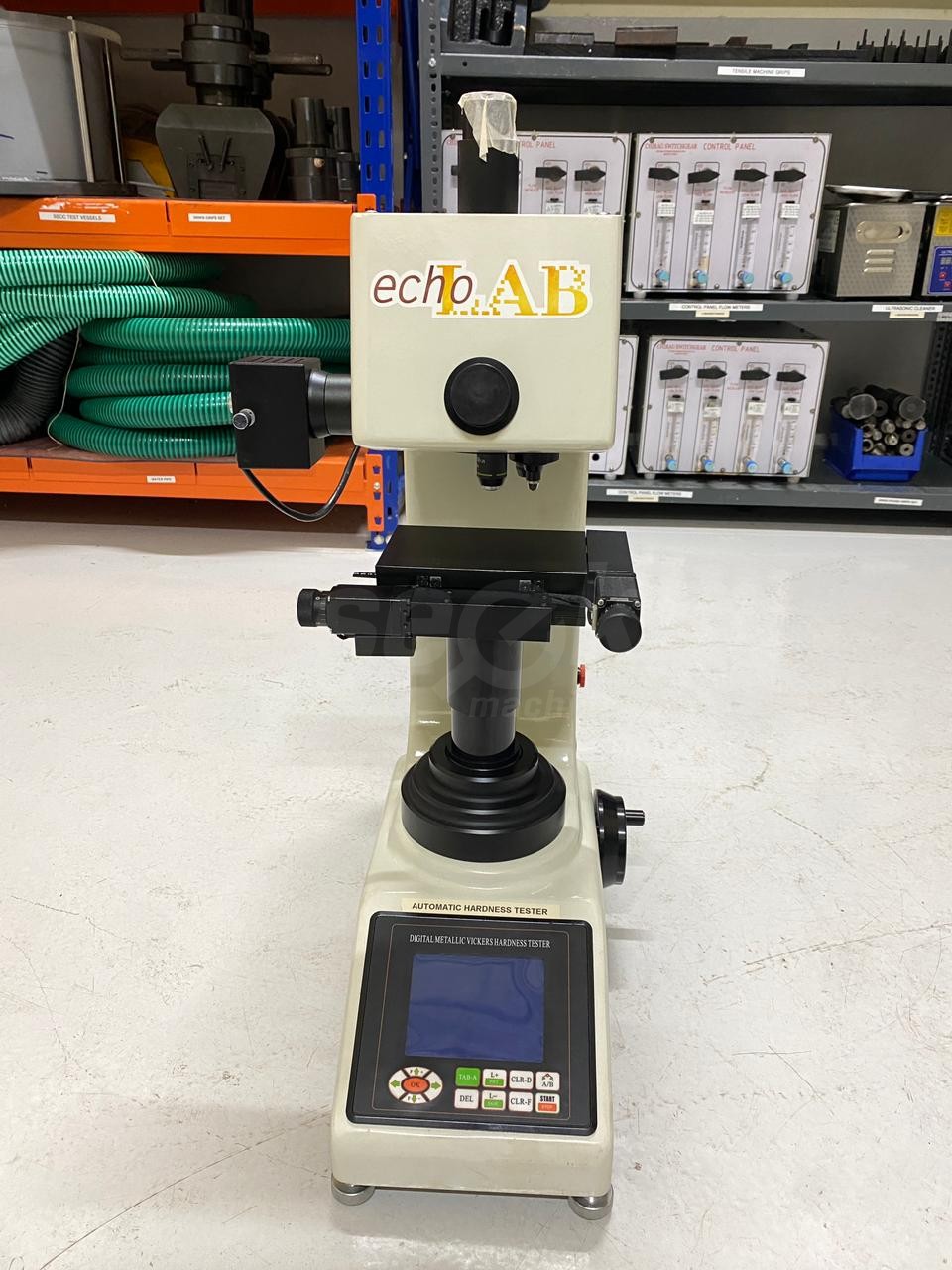

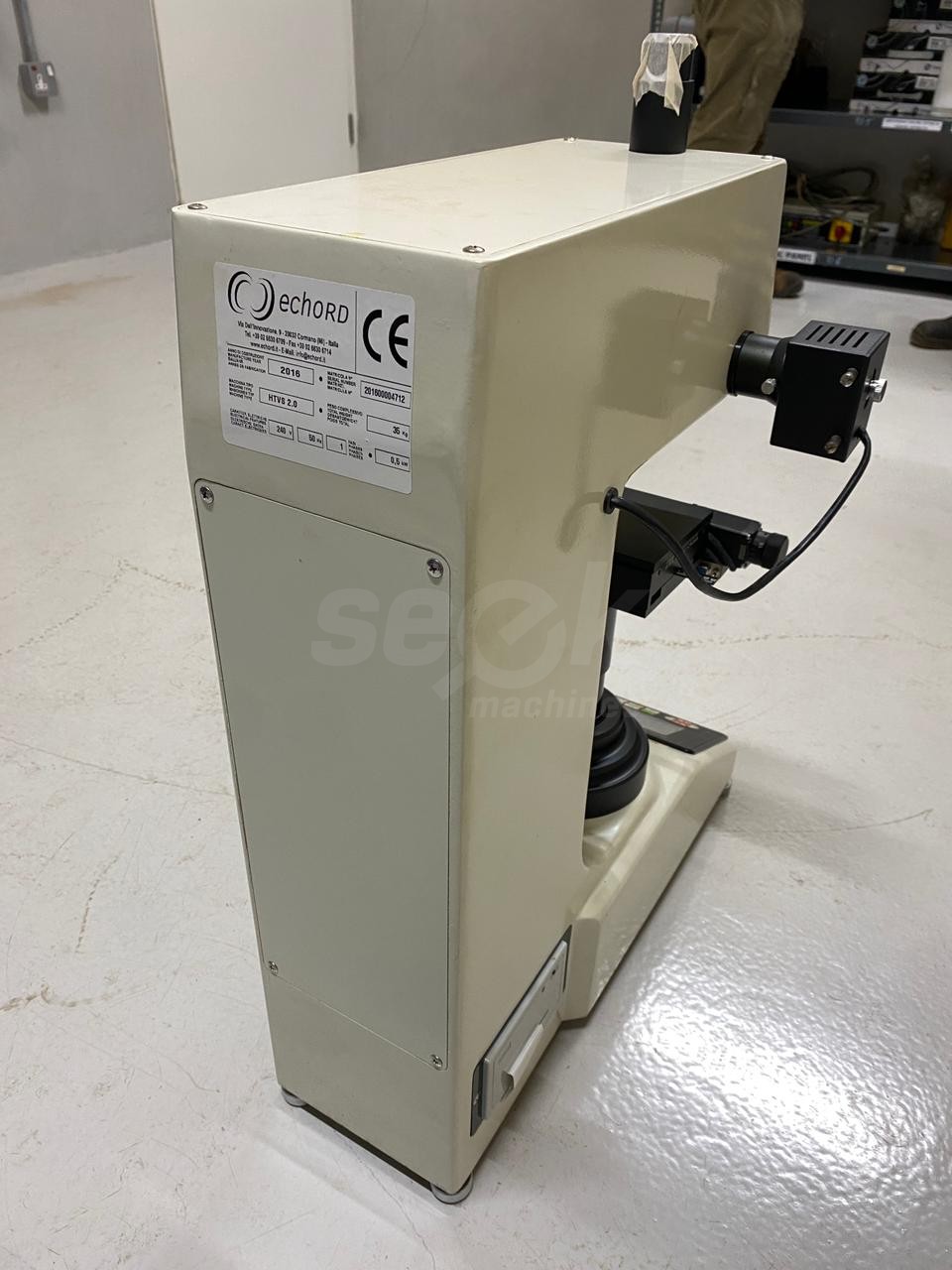

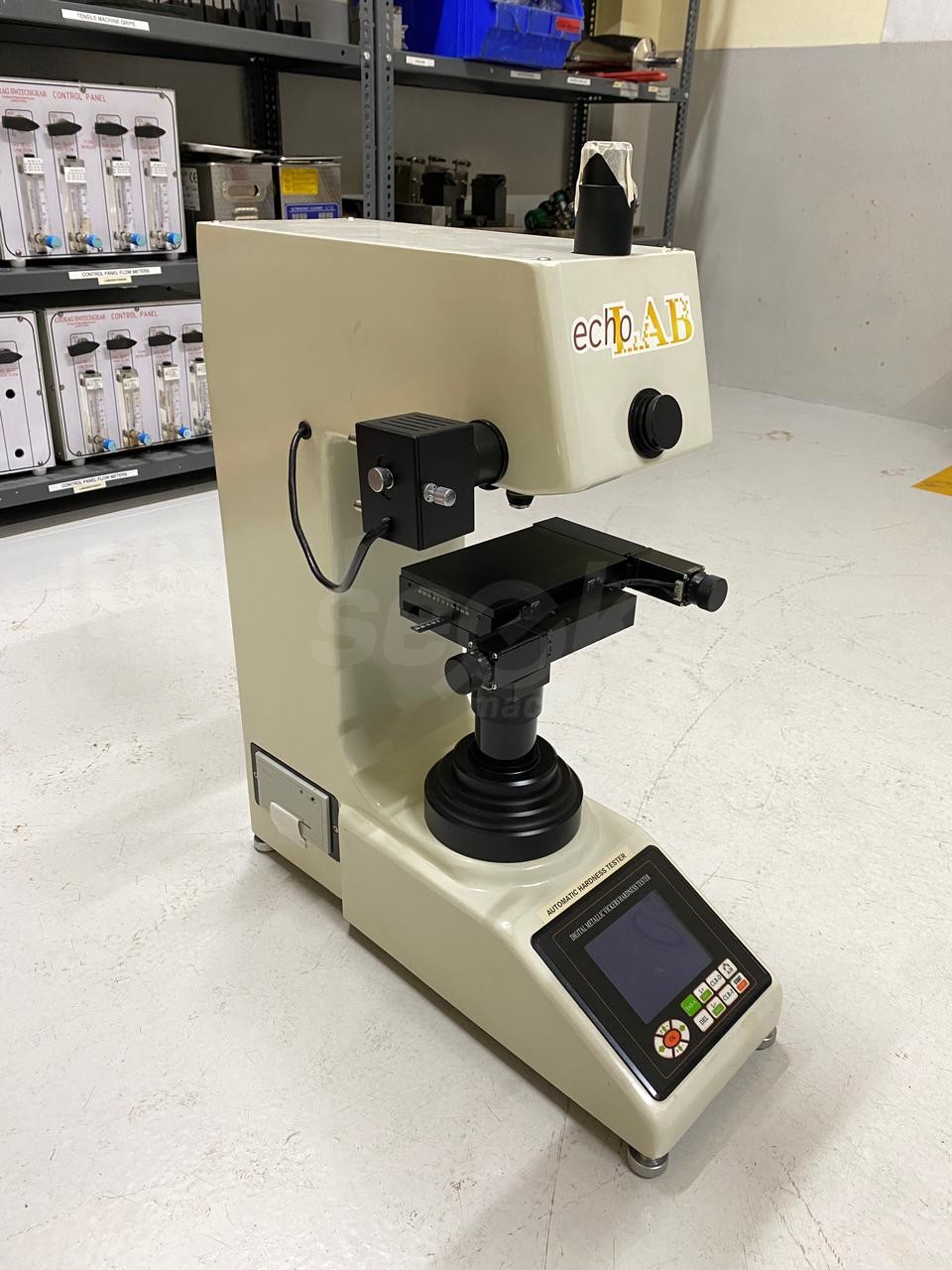

HTVS 2.0 - Hardness Tester
Technical Specifications
| Test force control | Load cell closed loop - Load electronic controlled |
|---|---|
| Load selection | PC and control panel keyboard (HV mode) |
| Main loads | HTV 10D V2.0: 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf HTV 50D V2.0: 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf |
| dwell time | 0~60s |
| Loading time | 0.3kgf~5kgf: 8s, 10kgf~50kgf: 10s |
| Load applying speed | (indenter descending speed) 0.04mm/s |
| Test force tolerance | ±1% |
| Test cycle type | Semi-automatic type: Manual - focus Automatic - load, dwell, unload, show of the hardness value |
| Hardness scales | HTV 10D V2.0: HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10 HTV 50D V2.0: HV1, HV2, HV2.5, HV3, HV5, HV10, HV20, HV30, HV50 |
| Hardness test range | 1HV~2967HV |
| Hardness resolution | 0.1HV |
| Repeatability | hef/% Table 1 |
| Scale conversion | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW - According to ASTM E140 |
| Turret type | Automatic |
| CCD camera pixel | 1.30 Million |
| Eyepiece microscope | 10x |
| Optical path | 2 ways eyepiece |
| Optical function | Optical diaphram / field aperture / color filter |
| Microscope min. measuring unit | HTV 10D V2.0: 0.25μm (10x objective), 0.0625μm (40x objective) HTV 50D V2.0: 0.25μm (10x objective), 0.125μm (20x objective) |
