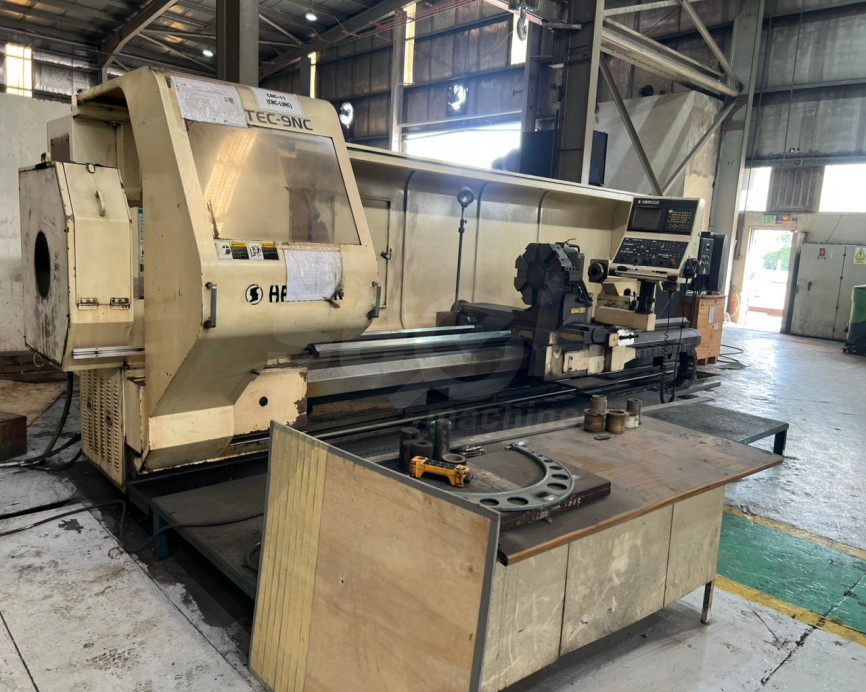

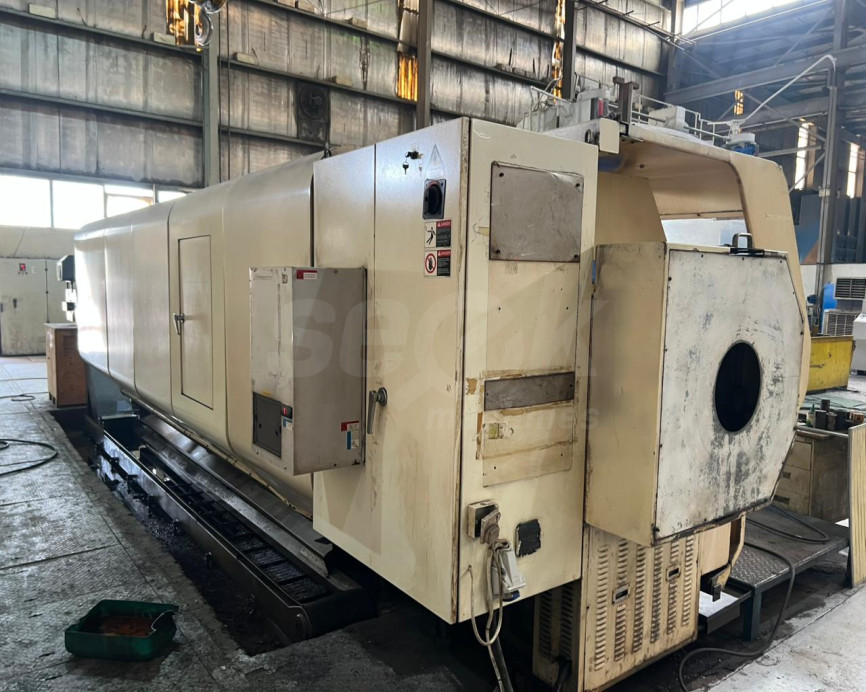

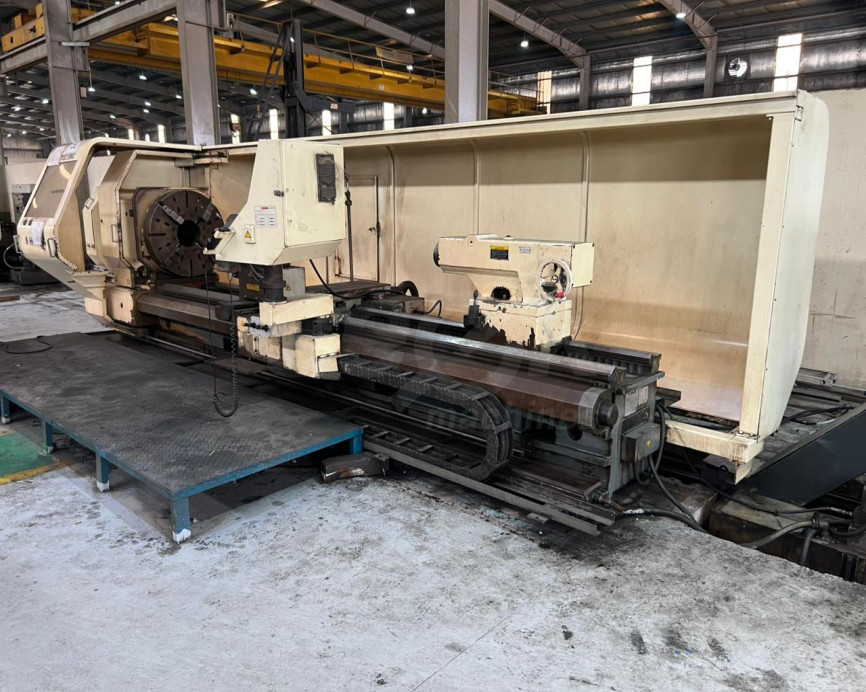

Hankook Protec Heavy Duty CNC Lathe
Metal working
9NC (TEC-9NC)
-- Korea
2008 United Arab Emirates
SM2605743
This ad is for only Bronze
and above
Machine Details
Item Details
| Name | Hankook Protec Heavy Duty CNC Lathe |
|---|---|
| Item Code | SM2605743 |
| Model No | 9NC (TEC-9NC) |
| Serial No | 44K12015 |
| Usage | used |
| Industry | Metal working |
| Manufacturer | -- |
| Year of Manufacture | 2008 |
| Country of Origin | Korea |
| Posted On | 04-05-2026 |
| Machine Location | United Arab Emirates |
Description
Designed for high-torque, large-capacity machining.
Ideal choice for oilfield, energy, and heavy engineering applications.
solidly constructed with a heavy one-piece cast iron bed and hardened & ground guideways.
perfect for pipe and long shaft turning.
Selling due to no use at the factory.
Contact now for viewing the machine at the factory.
Technical Specifications

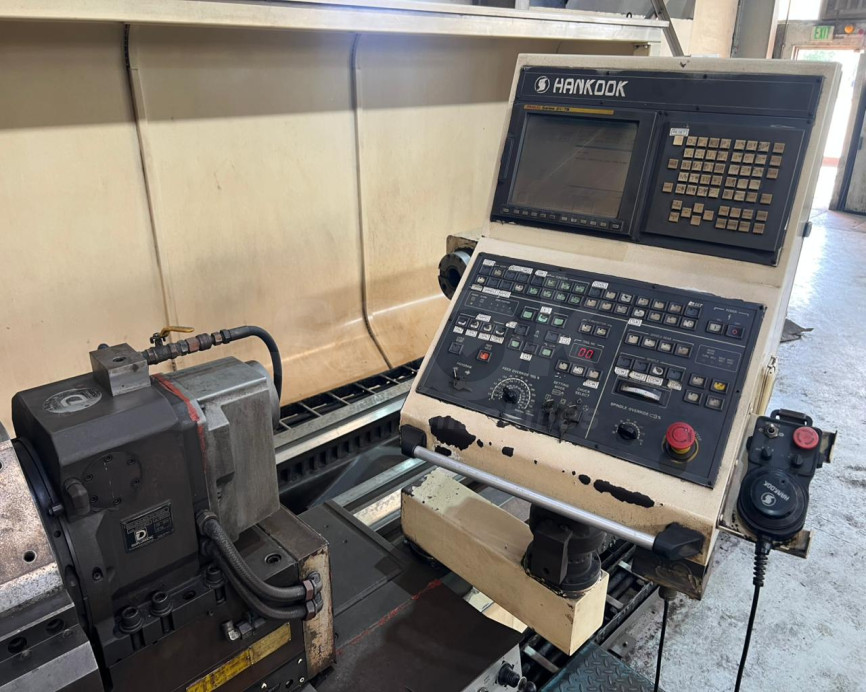

| Control Unit | Fanuc Series 21i-TB |
|---|---|
| Swing Over Bed | 950 mm |
| Swing Over Carriage | 630 mm |
| Distance Between Centers | 4,000 mm |
| Maximum Workpiece Weight | 5,000 kg (between centers) |
| Spindle Bore | 254 mm |
| Spindle Nose | A2-15 |
| Spindle Speeds | 2 to 630 RPM |
| Spindle Speed Ranges | 2 Steps (Automatic / Geared) |
| Main Motor Power | 37 kW |
| Turret Type | 8-Station Automatic Turret |
| Tailstock Quill Diameter | 180 mm |
| Tailstock Quill Travel | 250 mm |
| Tailstock Taper | MT#6 (Built-in live spindle) |
| Machine Weight | Approx. 11,400 kg |
