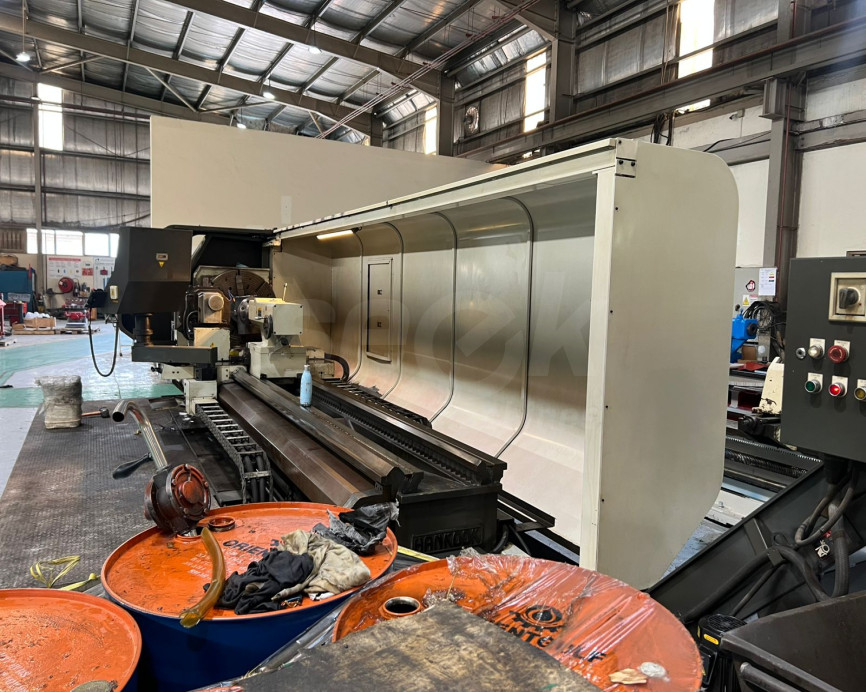

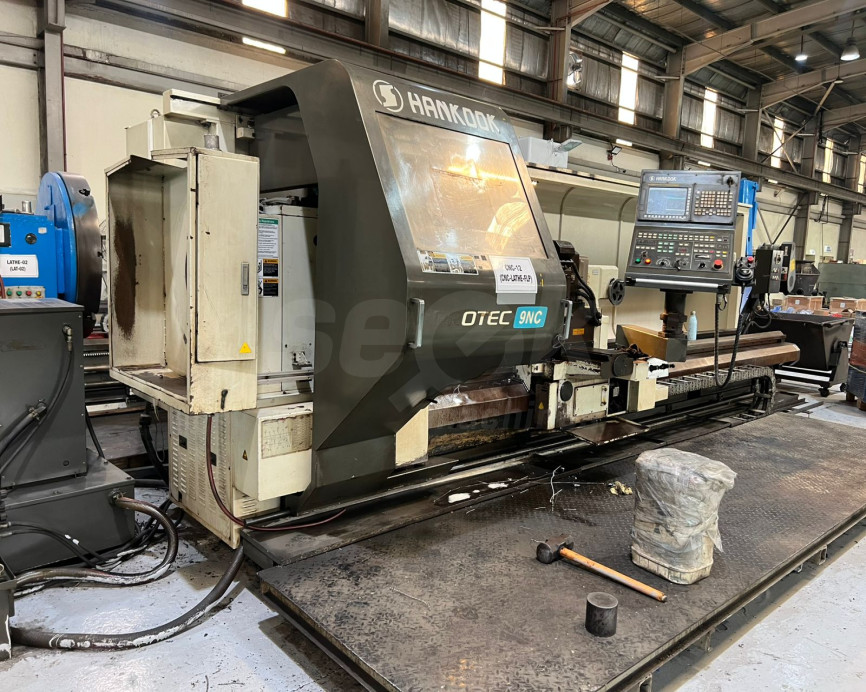

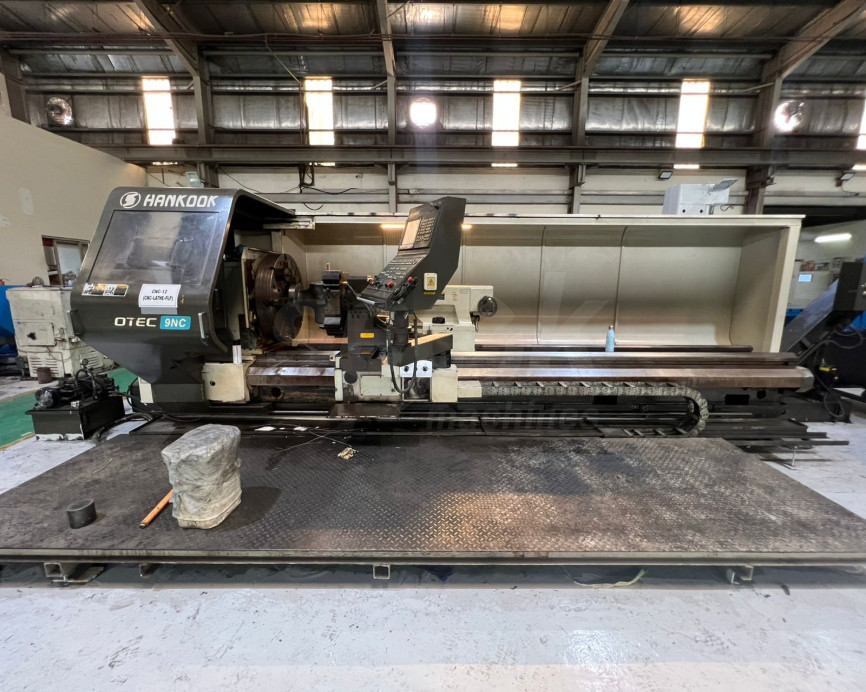

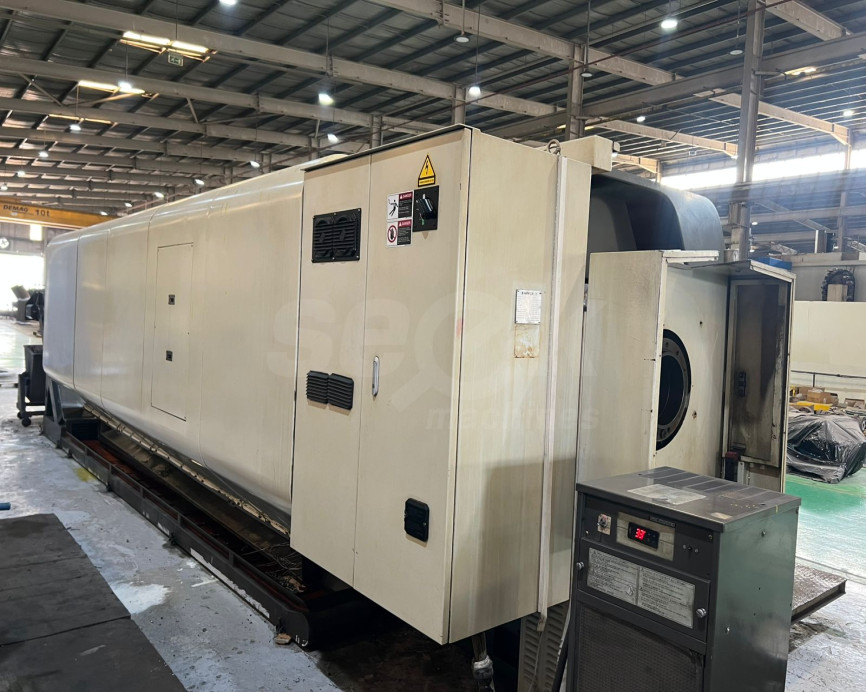

Hankook Heavy-Duty Flat Bed CNC Lathe
Metal working
Protec 9N
-- Korea
2012 United Arab Emirates
SM2605741
This ad is for only Bronze
and above
Machine Details
Item Details
| Name | Hankook Heavy-Duty Flat Bed CNC Lathe |
|---|---|
| Item Code | SM2605741 |
| Model No | Protec 9N |

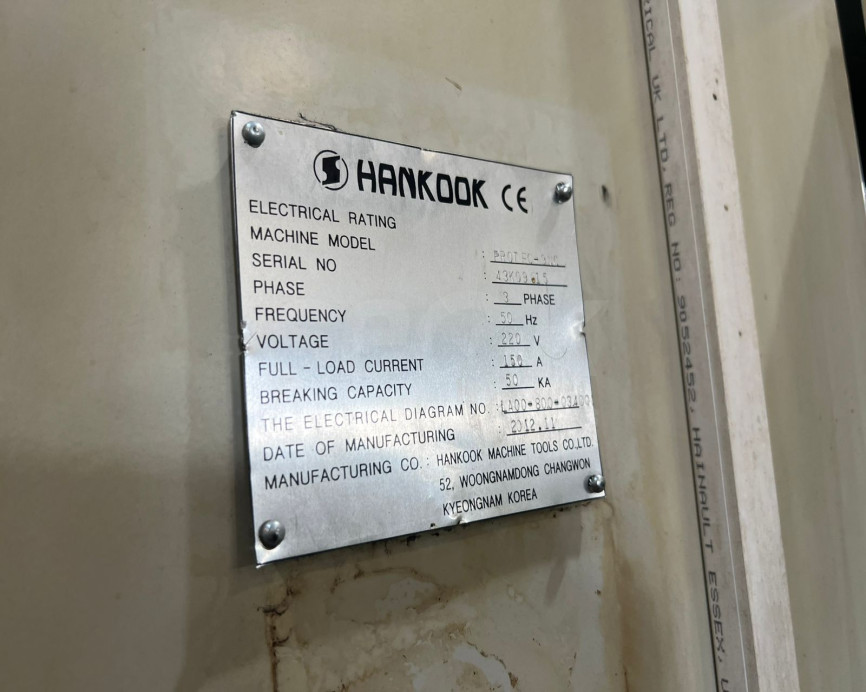

| Serial No | 41H12076 |
| Usage | used |
| Industry | Metal working |
| Manufacturer | -- |
| Year of Manufacture | 2012 |
| Country of Origin | Korea |
| Posted On | 04-05-2026 |
| Machine Location | United Arab Emirates |
Description
Heavy-duty flat bed CNC lathe manufactured by Hankook Machine Tools Co., Ltd. in South Korea.
Designed for processing large and heavy workpieces—such as those used in the oil and gas, energy, and heavy engineering sectors.
Still in great condition.
Selling due to no use for this machine at the factory.
Contact us now for viewing the machine.
Technical Specifications
| Swing Over Bed | 950 mm (37.4 inches) |
|---|---|
| Swing Over Carriage / Cross Slide | 630 mm (24.8 inches) |
| Distance Between Centers: | 4,000 mm (157 inches) |
| Max. Workpiece Weight Capacity | 5000 kg between centers |
| Spindle Bore Diameter | 254 mm |
| Spindle Speed | 2 to 630m rpm |
| Spindle Nose | A2-15 |
| Tailstock Quill Diameter | 180 mm |

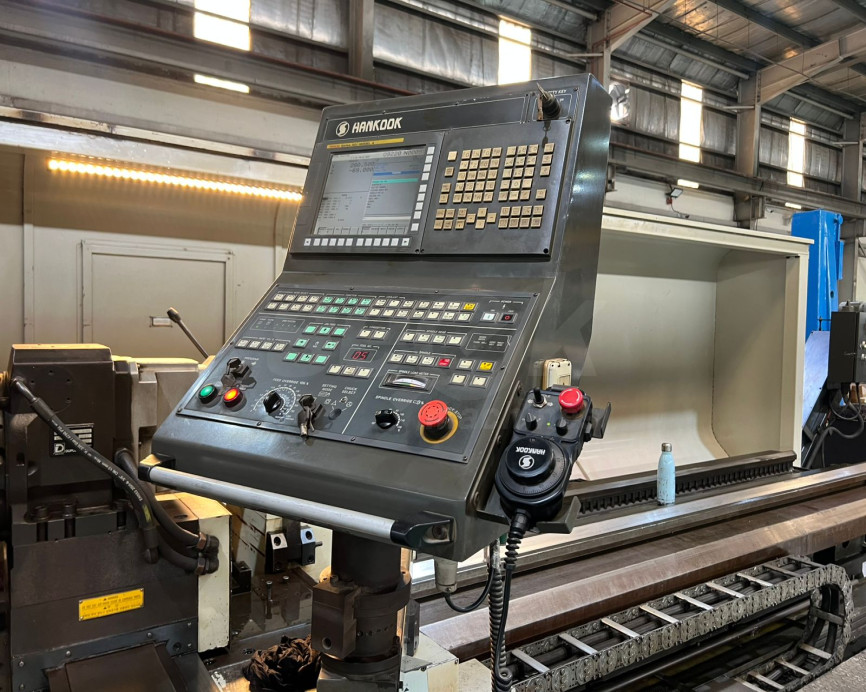

| CNC Control Unit: | FANUC Series 32i - Model A (2-axis control) |
| Tool Turret: | Equipped with a Duplomatic automatic tool post |
| Machine Weight: Approximately | 11,400 kg |
| Bed Width | 630 mm |
