Item Details

Description

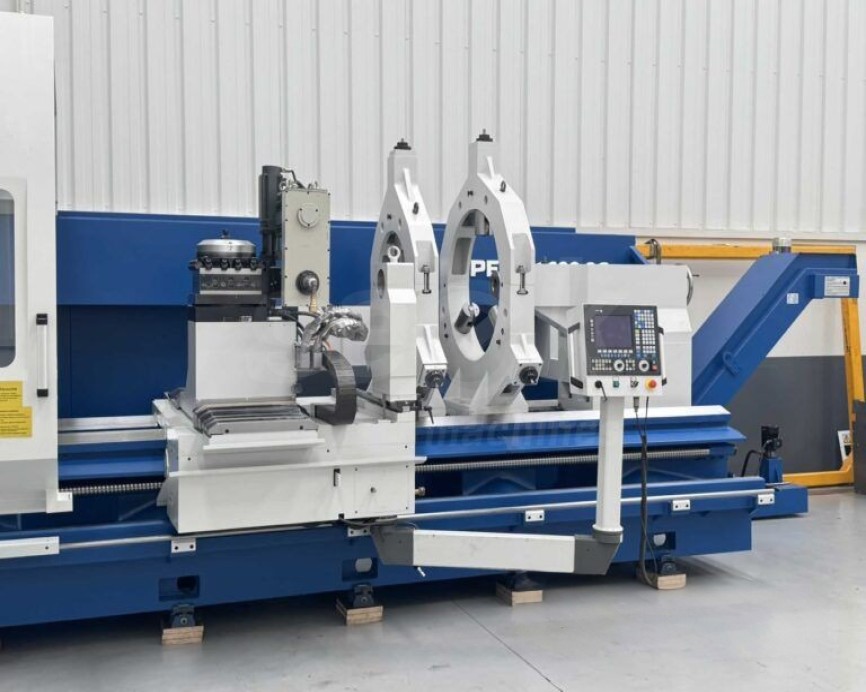

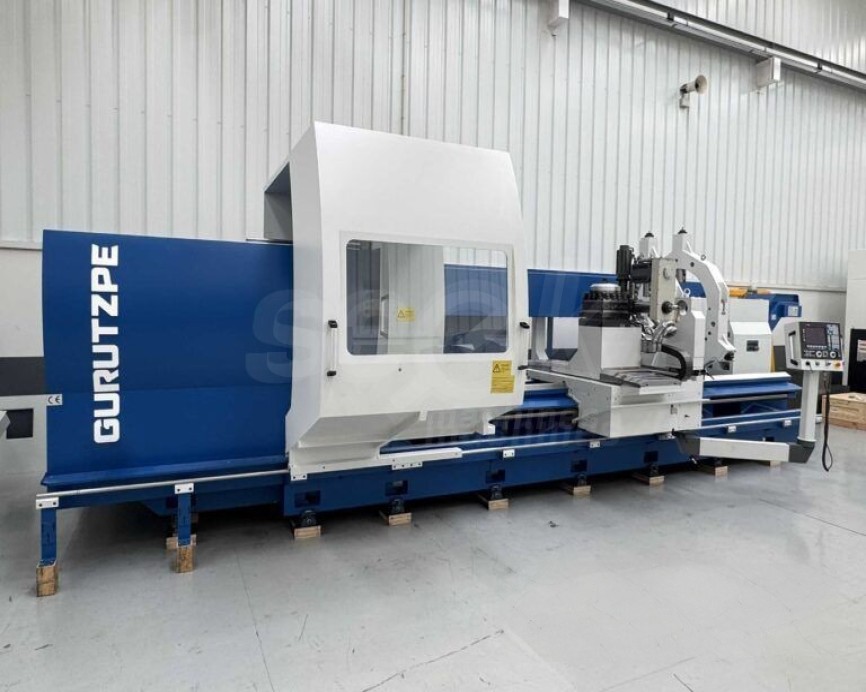

Manufacturer GURUTZPE
Model A-1600 2G CNC x 4.000
Year 2008

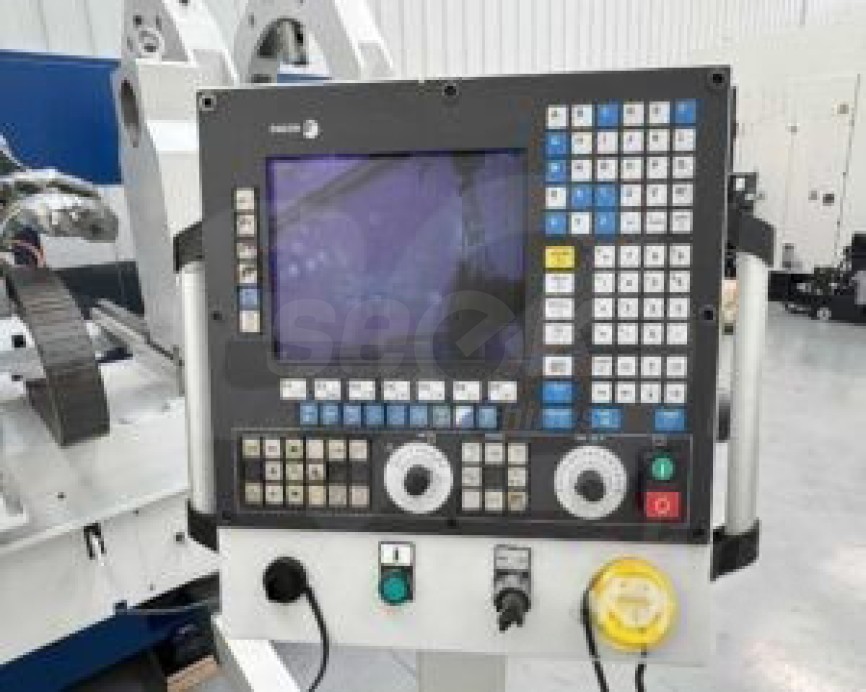

CNC FAGOR 8055 TC
Capacities and feeds
Distance between centres 4.000 mm.
Center heights 810 mm.
3rd support guide for carriage INCLUDED
Bed width 1.090 mm.
Max. swing over bed 1.650 mm.
Max. swing over cross slide 1.200 mm.
Rapid feed X Axis 10 m/min
Rapid feed Z Axis 10 m/min
C Axis and driven tool INCLUDED
Main Spindle
Main spindle hole 150 mm.
Spindle nose A-15
Spindle speeds 20-800 rpm
Head automatic range number 2
Gurutzpe A-1600 CNC 2G x 4000Main Engine Power 68 kW
Spindle Maximum Torque 14.600 Nm
Turret
Turret type Sauter 4 POS
Tool Size 360 x 360 mm.
Turret Station Number 4
Tailstock
Tailstock with CNC driven longitudinal movement INCLUDED
Movement of tailstock quill driven INCLUDED
Quill Tailstock 180 mm.
Turning point of the tailstock MORSE 6
Equipment
Milling unit with driven tools and Y Axis INCLUDED
Front door INCLUDED
Chuck protection INCLUDED
Complete rear protection INCLUDED

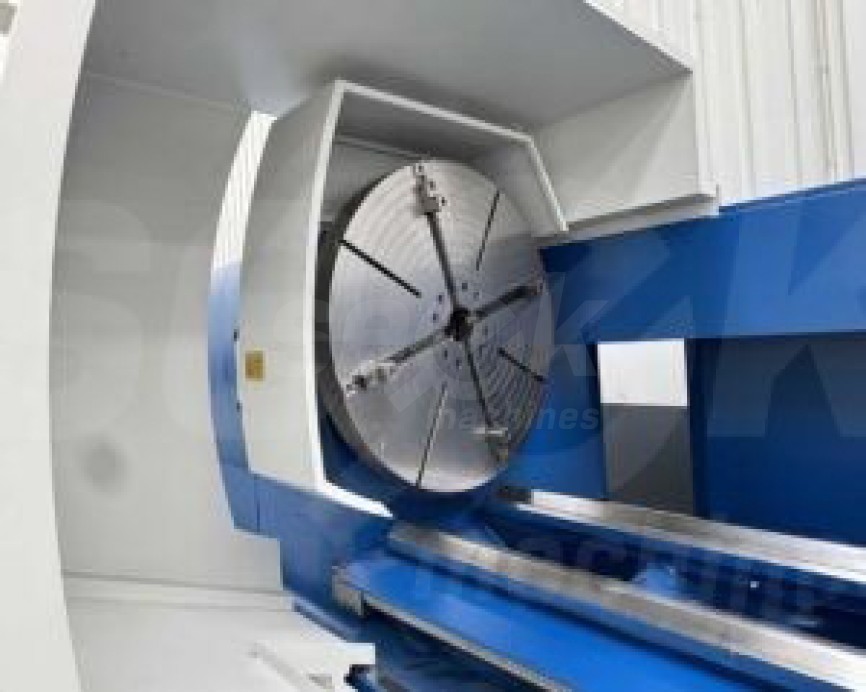

4 -jaw chuck Ø1400 mm INCLUDED
4 -jaw chuck Ø800 mm INCLUDED
3 support steady rest Ø 620 mm INCLUDED
3 support steady rest Ø 930 mm INCLUDED
Portable handwheel Fagor INCLUDED
Support for boring bar Ø160 mm. INCLUDED
Boring bar Ø 160 x 2.200 mm INCLUDED
Longitudinal Chip Conveyor INCLUDED
Large amount of tool holders and accessories INCLUDED
Others
Total power 73 kW.
Machine dimensions 11.830 x 3.600 mm
Machine Weight 26.000 kg
