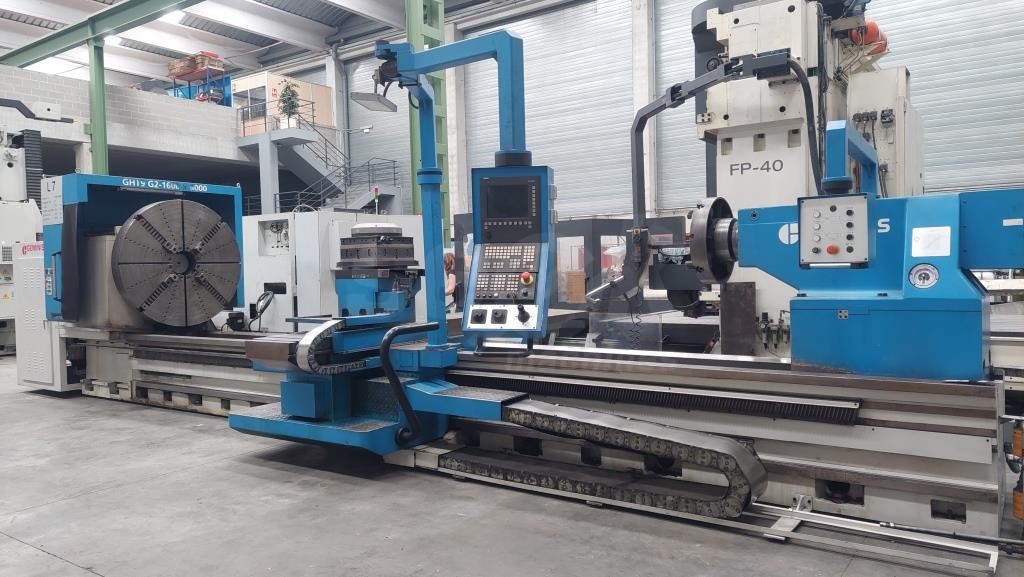

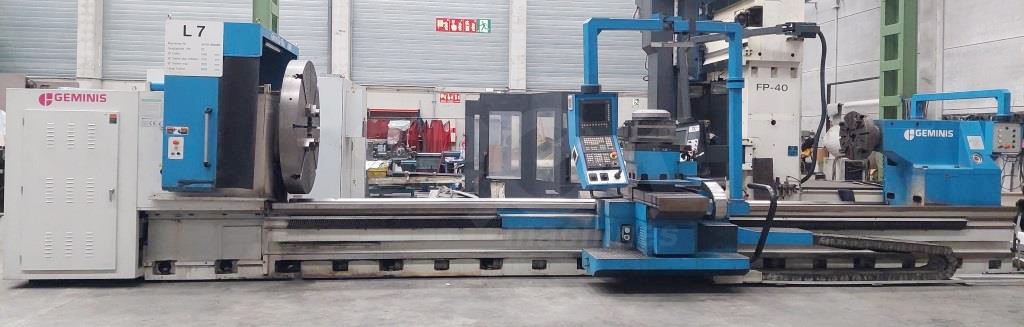

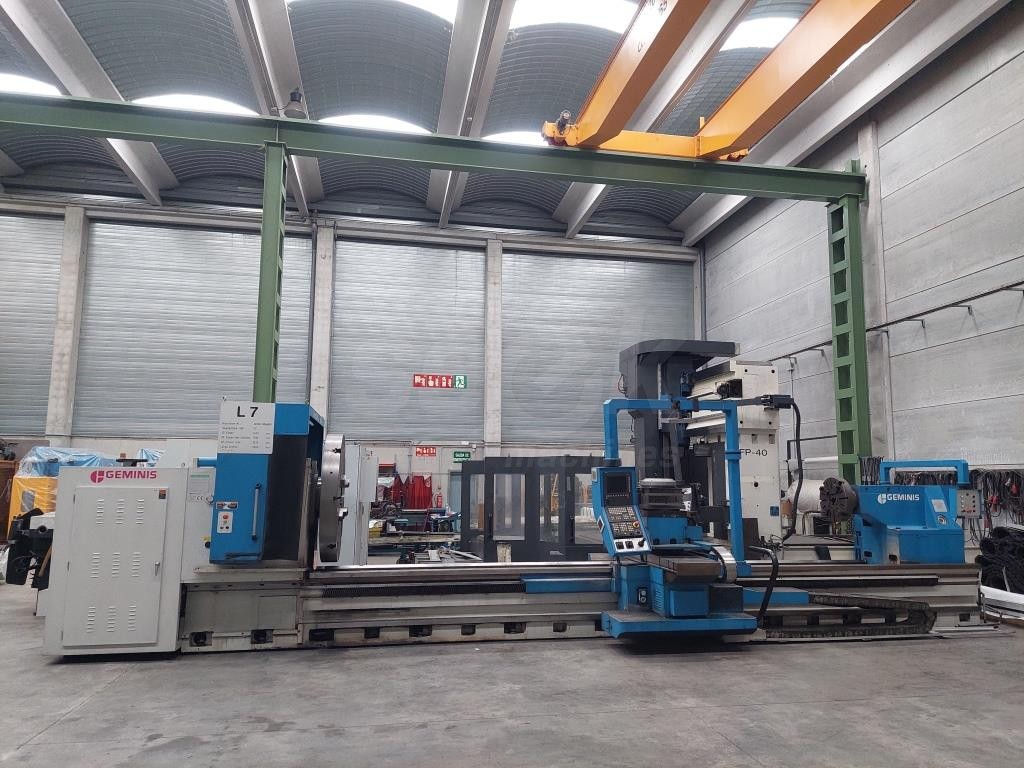

GEMINIS GHT9 G2 1600×6000 cnc lathe
Metal processing
GHT9 G2 1600×6000
GEMINIS Spain
2011 Spain
Machine Details
Item Details
| Name | GEMINIS GHT9 G2 1600×6000 cnc lathe |
|---|---|
| Item Code | SM2505226 |
| Model No | GHT9 G2 1600×6000 |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | GEMINIS |
| Year of Manufacture | 2011 |
| Country of Origin | Spain |
| Posted On | 06-05-2025 |
| Machine Location | Spain |
Description
Reference: 218-B004
Distance between centers: 6000 mm
Height centers: 800 mm
Max swing over bed: 1600 mm
Max swing over slide: 1225 mm
Main spindle hole diam: 150 mm
Speed range:
4
Speed range I: 0-90 rpm
Speed range II: 0-180 rpm
Speed range III: 0-355 rpm
Speed range IV: 0-710 rpm
Cross slide travel: 830 mm
Quill diameter: 320 mm
Quill travel: 250 mm
Max. between points 20 ton
Max. admitted with the two luns (between 4 and 5 ton each) 30 ton
Dimensions and weight of the machine: 10.150 x 2.550 mm 30 ton
Year: 2011
Equipped with:

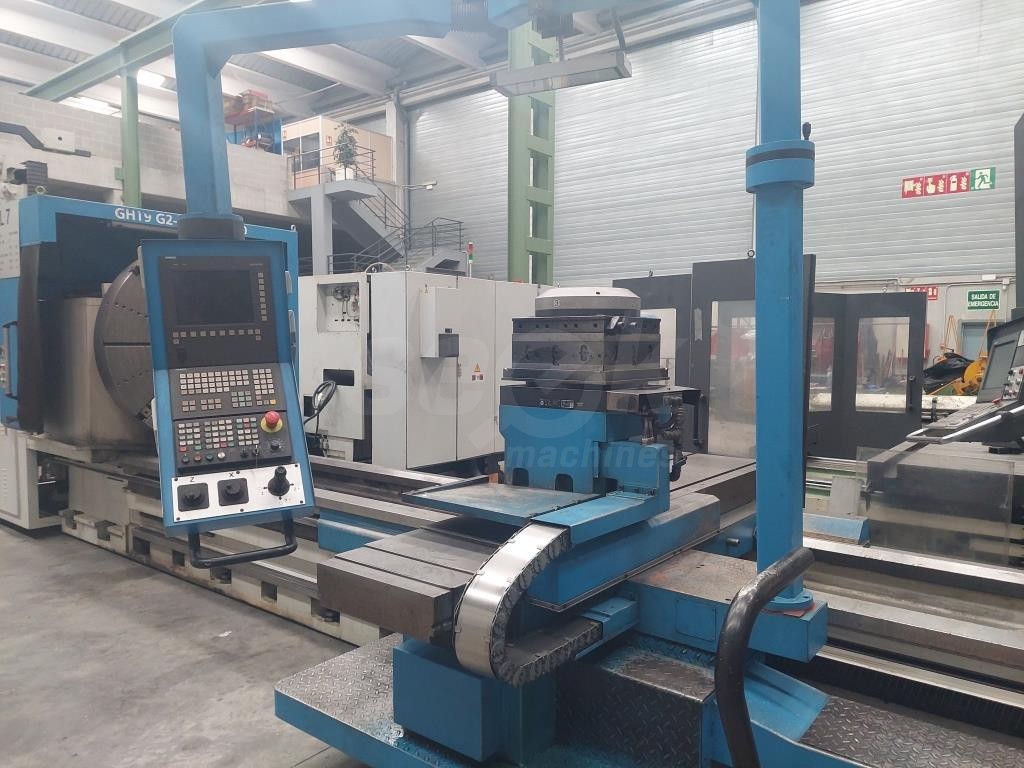

Control: Siemens Sinumerik 840 D Shop Turn

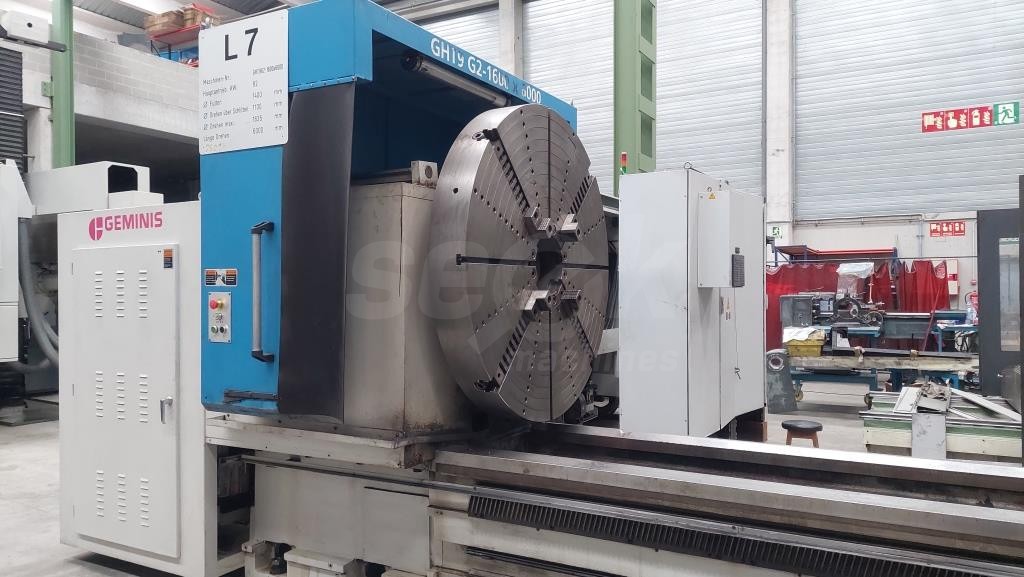

4 independent jaw chuck: Ø 1400 mm
4 independent jaw chuck: Ø 560 mm
Square Auto Turret: SAUTER 4 pos - Ø 320x320 mm

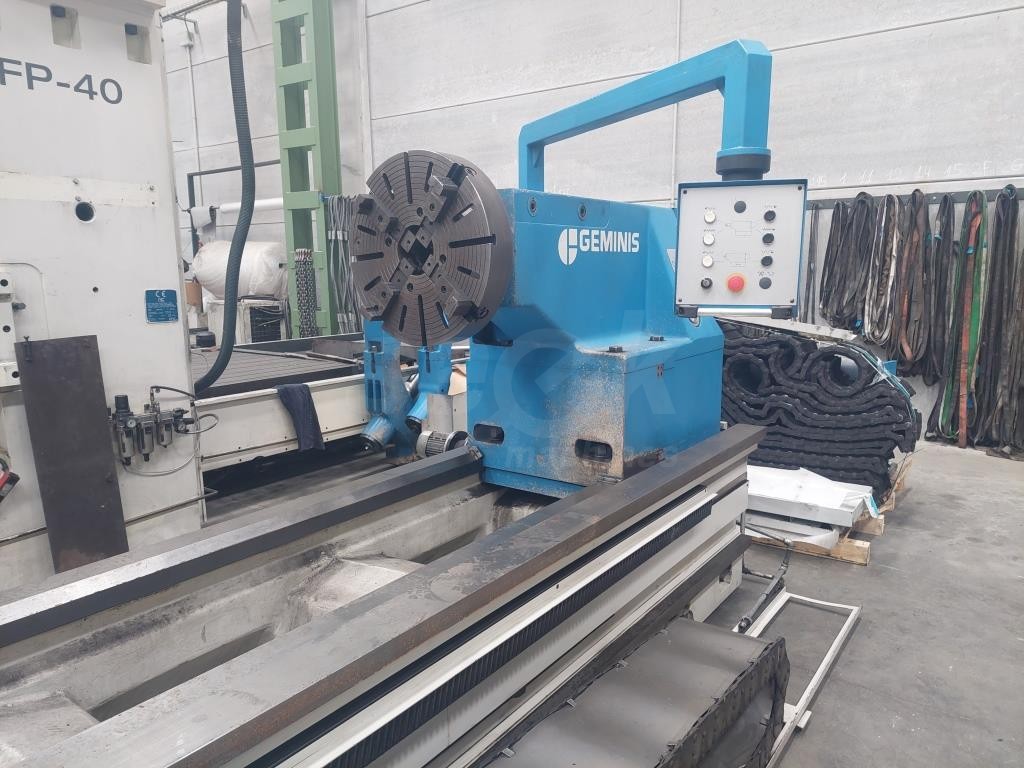

Tailstock and quill: motorized
Chip conveyor: Yes
1 steady rest: Ø 100-500 mm
1 steady rest: Ø 500-900 mm
