Item Details

Description

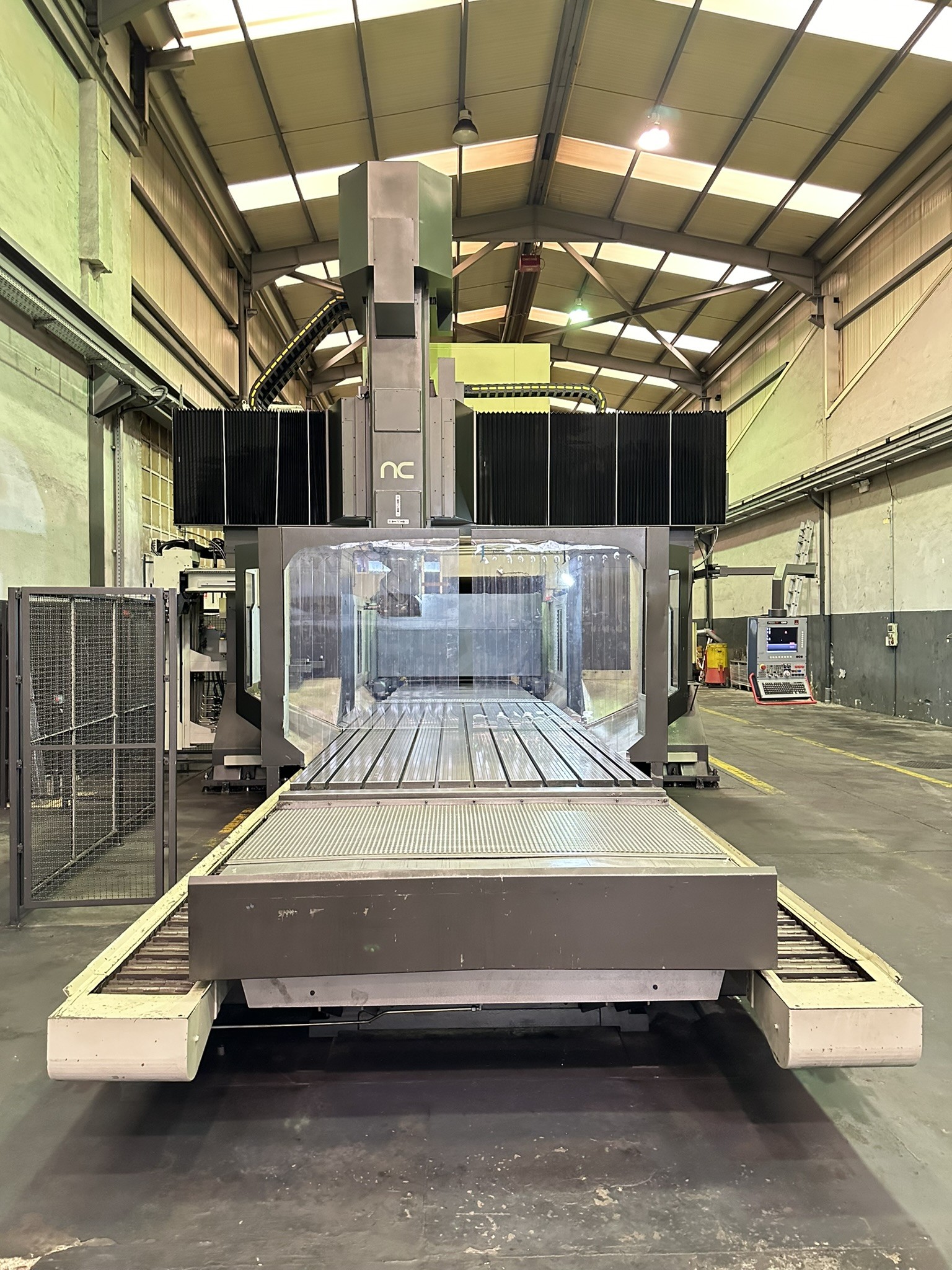

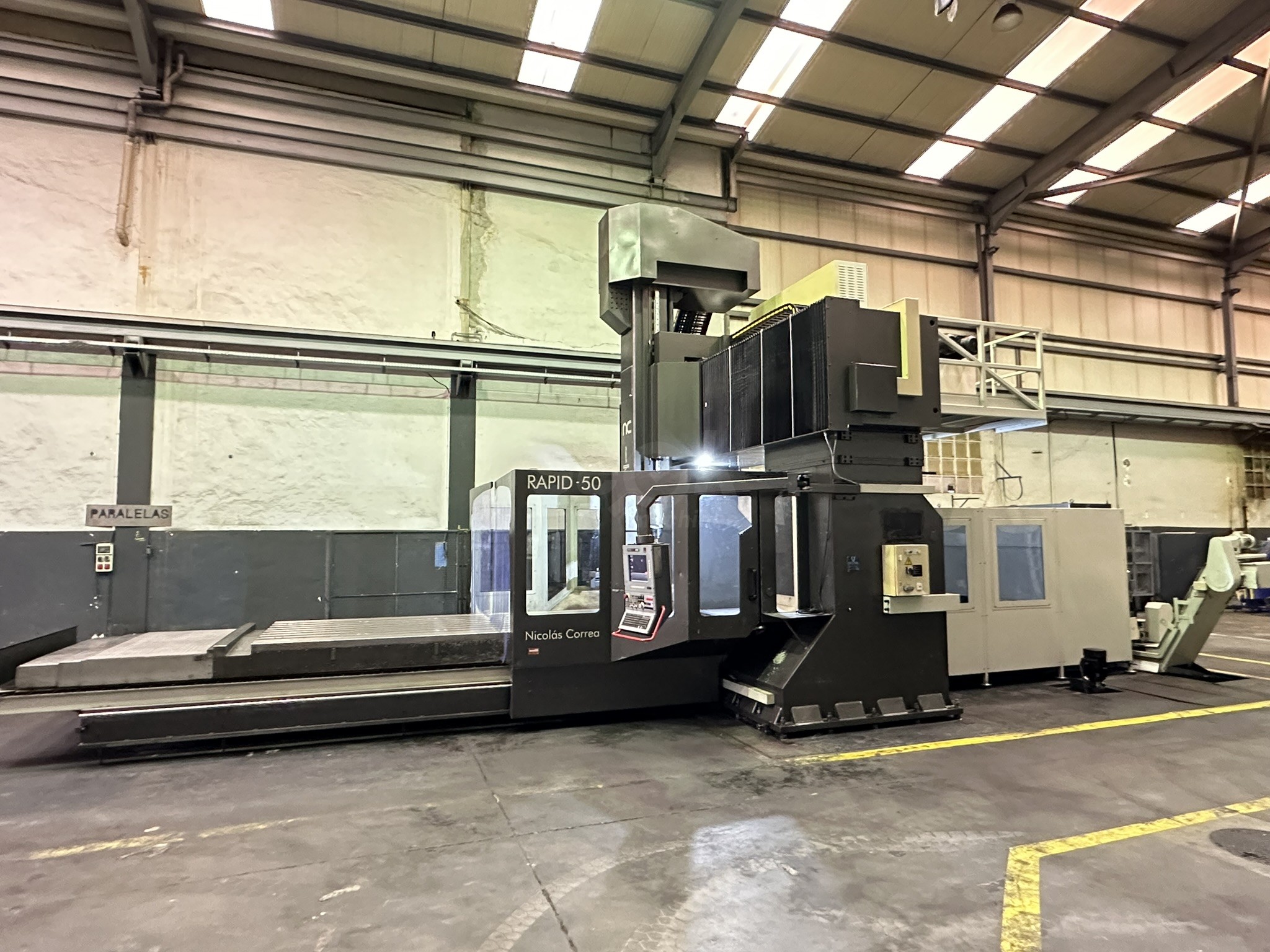

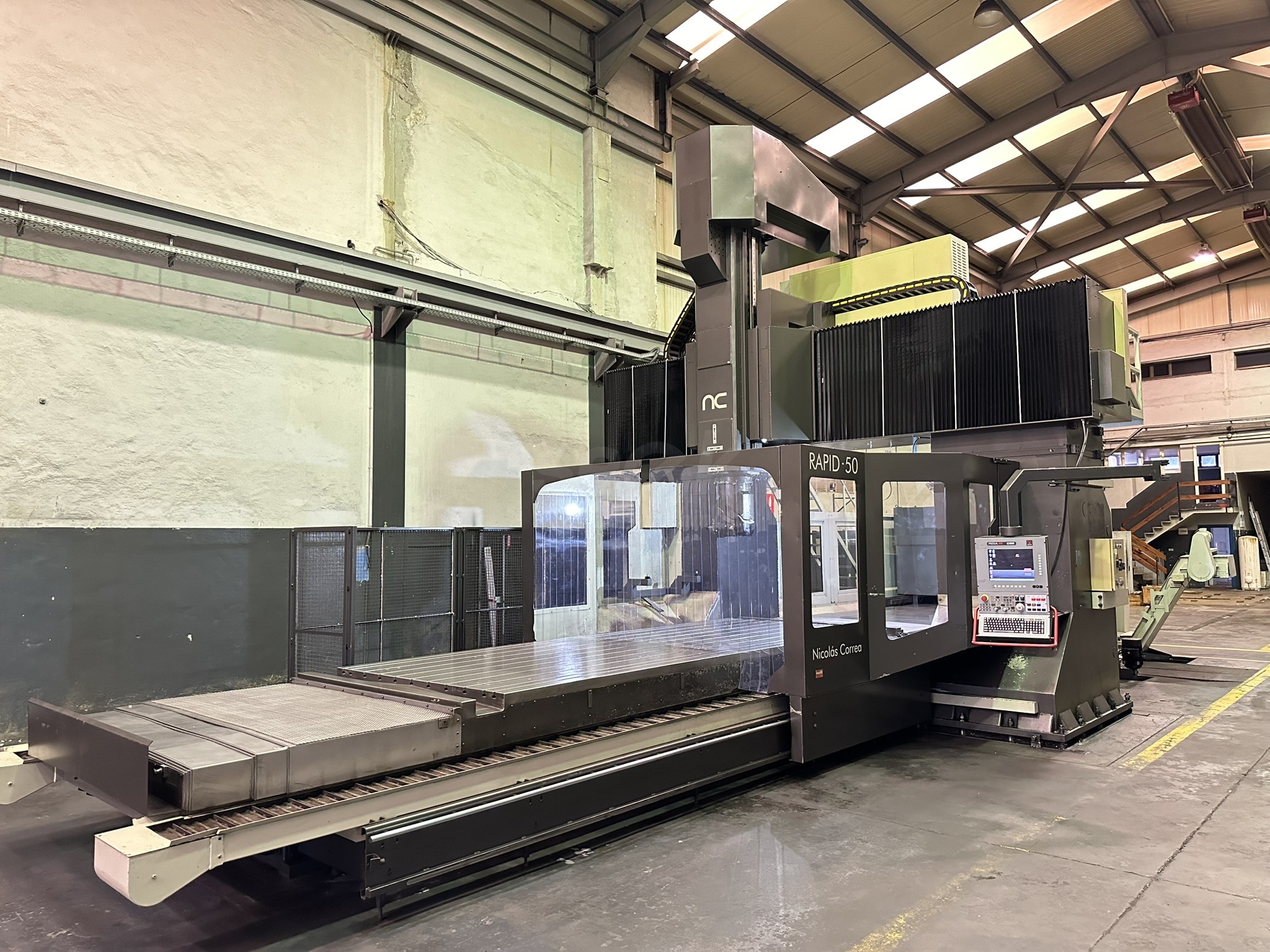

Manufacturer NICOLAS CORREA
Model RAPID50
New in Year 2.005
CNC HEIDENHAIN 530 HSCI
Table
Table Surface 5.000 x 2.000 mm
Number of T slots 11
T slot width 22 mm
Max weight allowed on table 30.000 kg.
Travels and feeds
Longitudinal traverse (X Axis) 5.000 mm
Cross travel (Y Axis 3.100 mm
Vertical travel (Z Axis) 1.200 mm
Distance between columns 2.800 mm.
Rapid feed (X Axis) 20.000 mm/min
Rapid feed (Y, Z Axis) 30.000 mm/min
Head
Automatic head UAD INCLUDED
Head UAD II positioning 0.1º / 0. 1º
Main spindle speed 6.000 rpm
Speed ranges 2
Main spindle power 32 kW
Taper ISO 50
Tool clamping Hidraúlico
Head 2 – Vertical INCLUDED
Accessories
Automatic tools changer INCLUDED
ATC positions 30
Automatic head changer INCLUDED
2 longitudinal chip conveyors INCLUDED
1 cross chip conveyor INCLUDED
Internal coolant 20 INCLUDED
Portable handwheel INCLUDED
Laser tool presetter INCLUDED
Others
Machine weight 65.000 kg
Machine dimmessions 15.100×6.200×6.250 mm.
