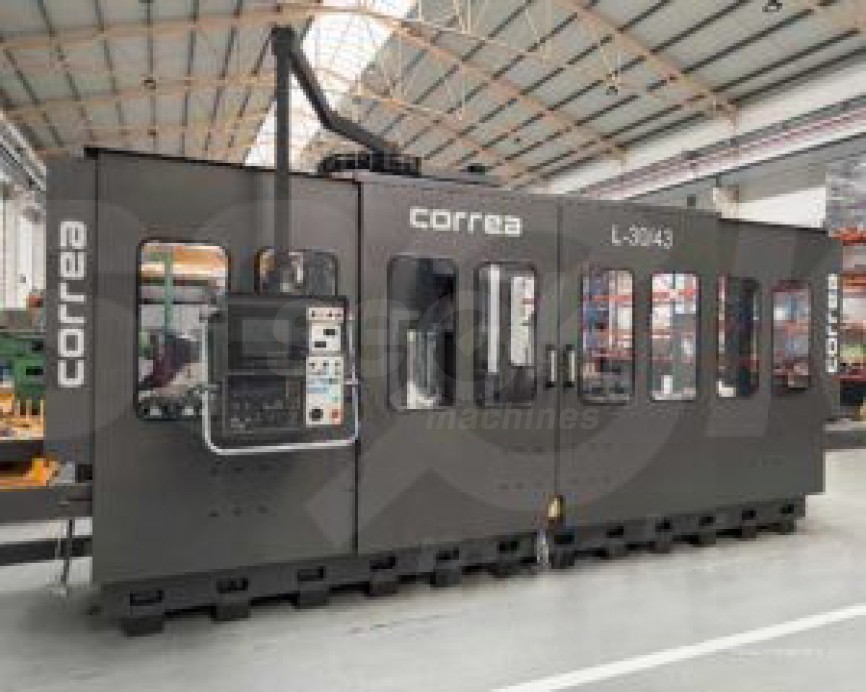

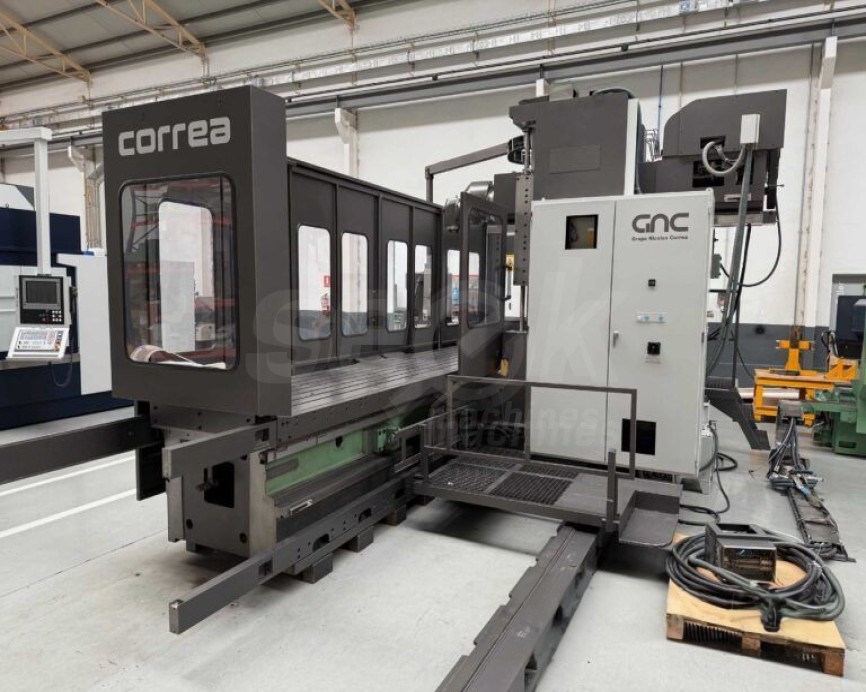

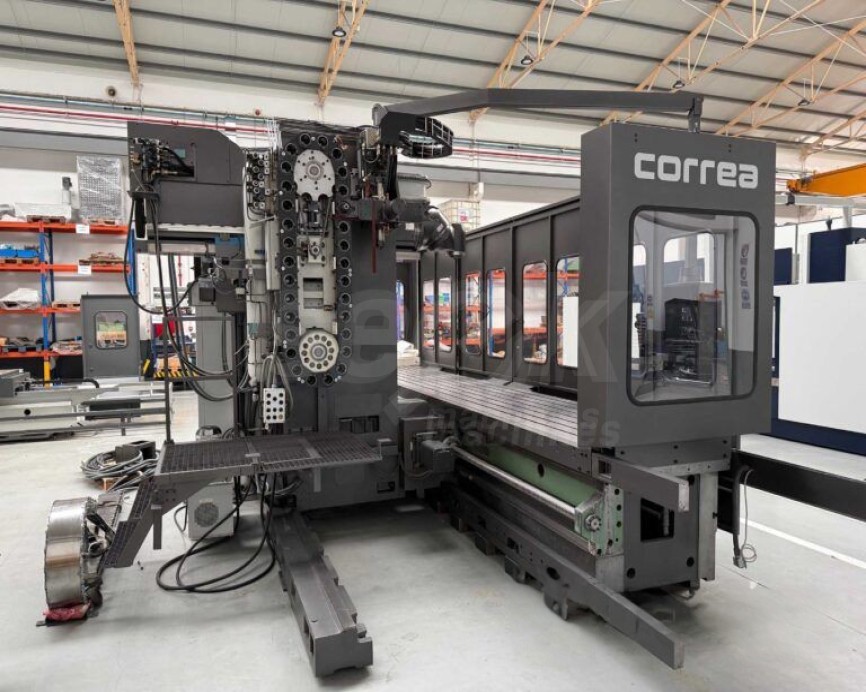

Correa L30/43 travelling column milling machine
Metal working
L30/43
Nicolas Correa Spain
1999 Spain
Machine Details
Item Details
| Name | Correa L30/43 travelling column milling machine |
|---|---|
| Item Code | SM2504211 |
| Model No | L30/43 |
| Usage | used |
| Industry | Metal working |
| Manufacturer | Nicolas Correa |
| Year of Manufacture | 1999 |
| Country of Origin | Spain |
| Posted On | 25-04-2025 |
| Machine Location | Spain |
Description
Manufacturer NICOLÁS CORREA
Model L30-43
Year 1998
CNC HEIDENHAIN TNC 426 PB
Table Surface 6.120 x 1.000 mm
Carrying Load Table 20.000 Kg.
Travels (X/Y/Z) 4.300/1.200/1.500 mm
Rapid Traverse 12.000 mm/min
Maximum Working Feed 5.000 mm/min
Auto Indexing Head 2. 5º – 2. 5º
Taper ISO-50
Main Motor Power 30 kW
Turning Speeds 20 – 3.000 r.p.m.
Automatic Tool Charger (ATC) INCLUDED
ATC Positions 40
Soluble Oil Tank with Paper Filter INCLUDED
Portable Hand Wheel HEIDENHAIN HR-410
Machine Weight 28.000 Kg.
Technical Specifications
| -- No specifications -- |
Catalogs
| Technical Catalog |
No catalog uploaded by the seller |
