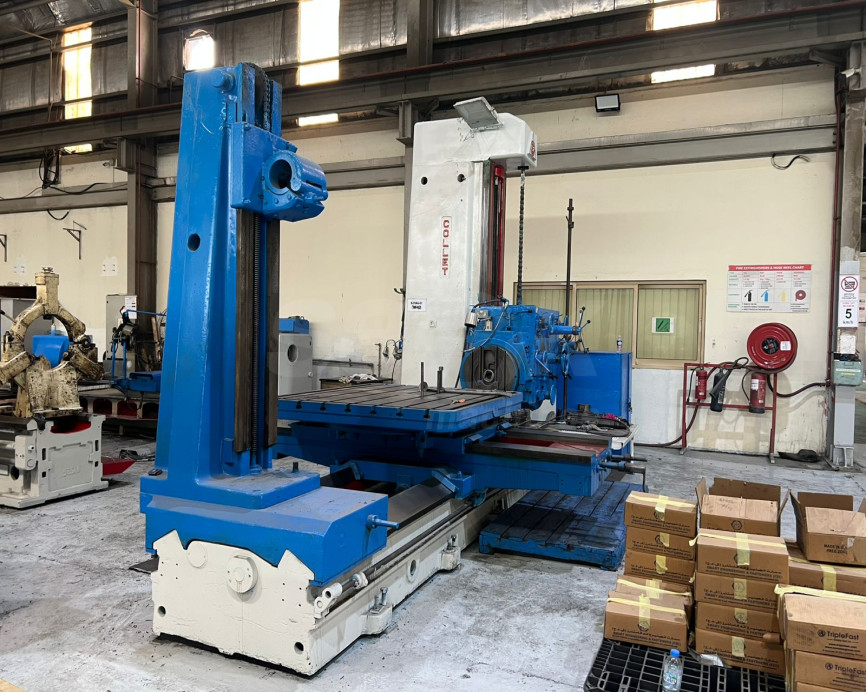

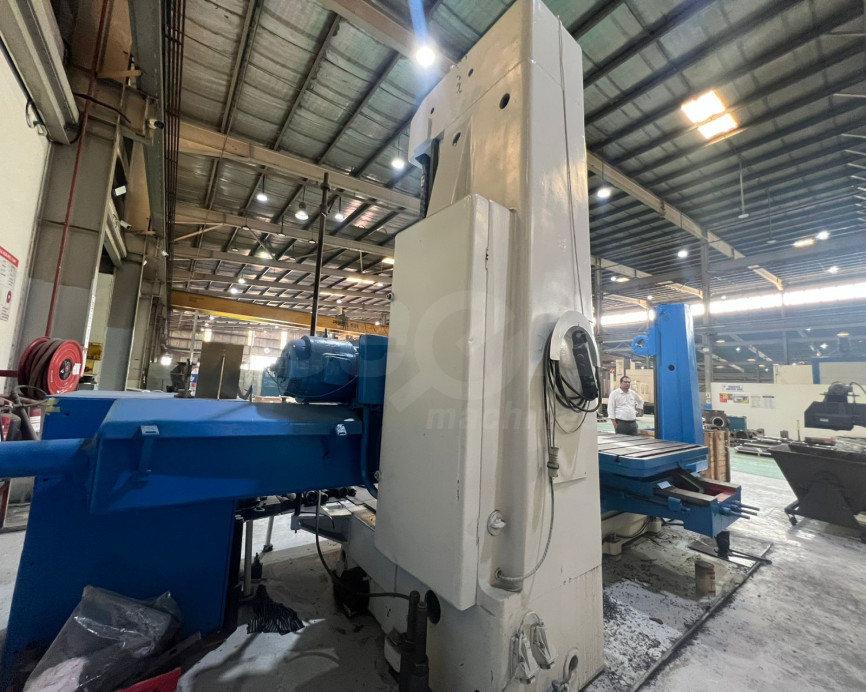

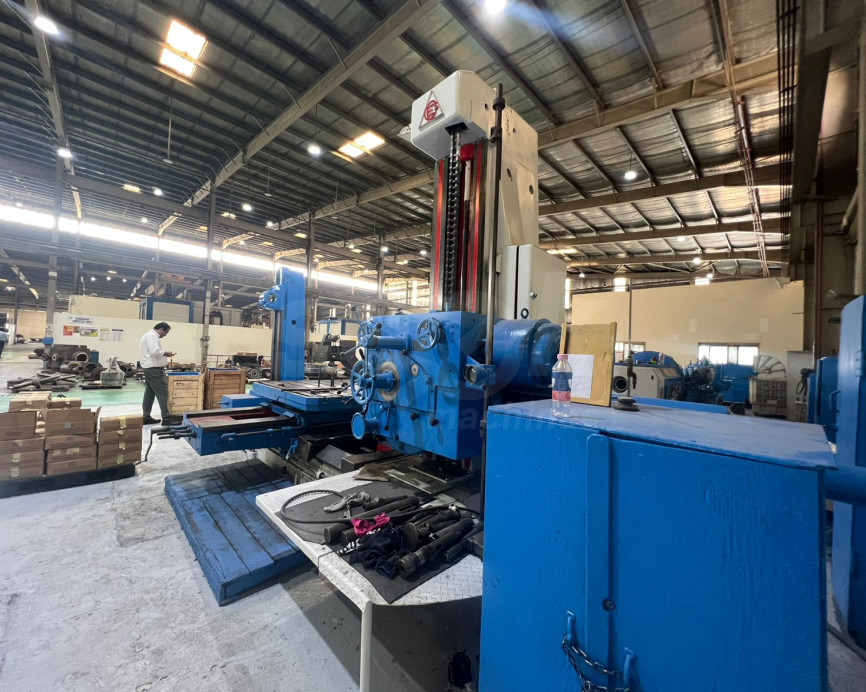

Collet & Engelhard Horizontal Boring Mill – With Rotary Table
Metal working
0
-- Germany
1957 United Arab Emirates
SM2605739
This ad is for only Bronze
and above
Machine Details
Item Details
| Name | Collet & Engelhard Horizontal Boring Mill – With Rotary Table |
|---|---|
| Item Code | SM2605739 |
| Model No | -- |
| Serial No | -- |
| Usage | used |
| Industry | Metal working |
| Manufacturer | -- |
| Year of Manufacture | 1957 |
| Country of Origin | Germany |
| Posted On | 04-05-2026 |
| Machine Location | United Arab Emirates |
Description

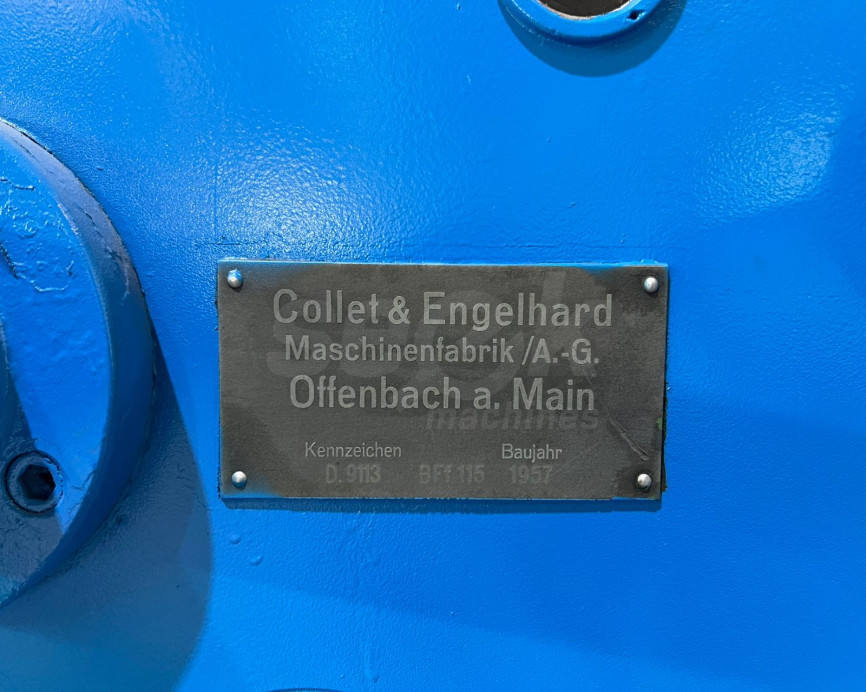

Manufactured by the renowned German builder Collet & Engelhard Maschinenfabrik A.-G. in Offenbach a. Main.

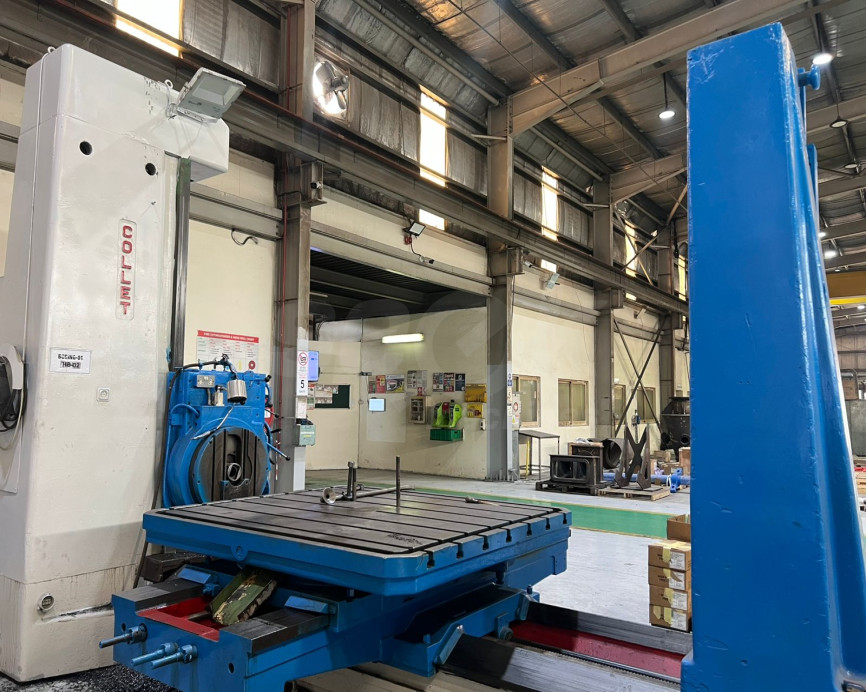

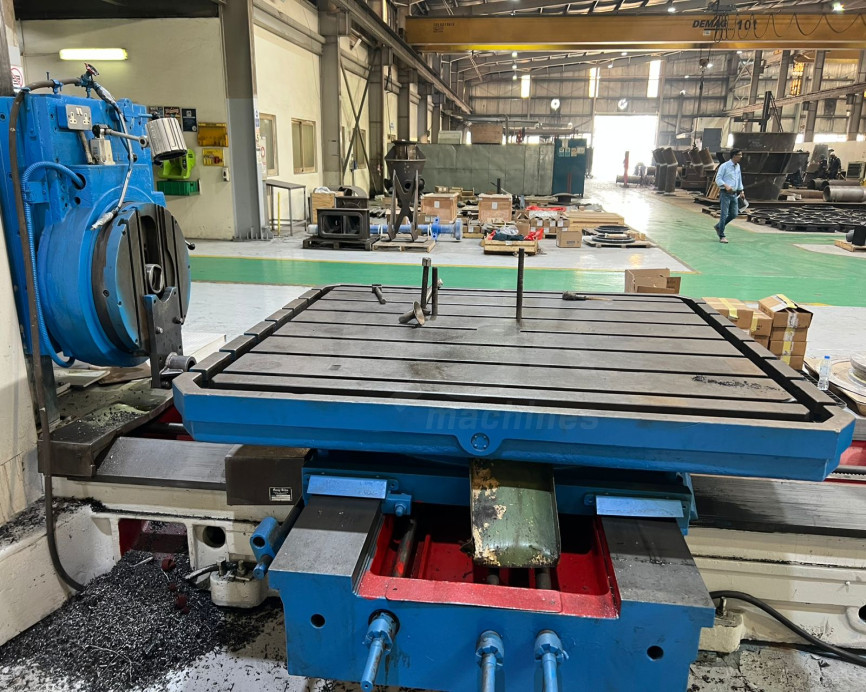

Machine has been well-maintained and comes completely equipped with a built-in rotary table.
In running condition.
Selling due to no use for this machine at the facility.
Contact now viewing at the facility.
Technical Specifications
| Spindle Diameter | 115 mm |
|---|---|
| Spindle Taper | MT 6 / SK 50 |
| Spindle Speeds | 20 to 1800 rpm |
| Table Size | Approx. 1600 mm x 1450 mm (with 9 T-grooves) |
| X-Axis Travel (Table Cross) | Approx. 1500 mm |
| Y-Axis Travel (Headstock Vert.) | Approx. 1300 mm |
| Z-Axis Travel (Table Long.) | Approx. 1200 mm |
| Machine Weight | Approx. 22,000 kg (22 Tons) |
| Accessories Included | Support Column (Outrigger), built-in Rotary Table, various clamping accessories |
