Brand New C50–160 Automatic Roll Forming Machine | Solar Mounting Structures | Ready Stock China

PRICE & AVAILABILITY

* FOB China
* Condition: Brand New / Unused
* Quantity: 2 Complete Production Lines
* Location: China
* Availability: Ready Stock – Immediate Availability


PRODUCT DESCRIPTION:

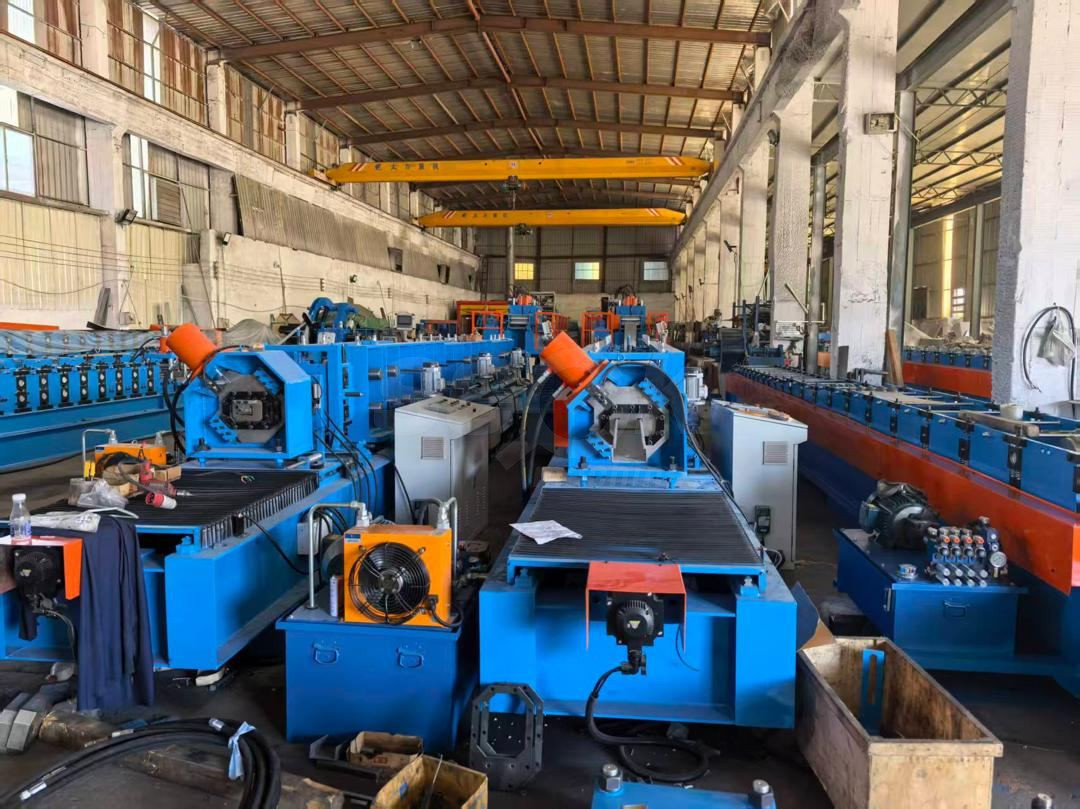

Two brand-new, fully automatic C50–160 Roll Forming Production Lines, designed for manufacturing solar mounting structures and industrial C-channel steel profiles.

Both machines are fully manufactured and available from stock in China, eliminating standard manufacturing lead times.

Each production line features computer-controlled automatic profile size adjustment, integrated hydraulic punching, servo-follow hydraulic cutting, and PLC touchscreen control.

The machines are suitable for solar mounting structure manufacturers, steel profile producers, and industrial fabrication companies.

TECHNICAL SPECIFICATIONS

* Model: C50–160 Automatic Roll Forming Line
* Material Thickness: 2–4 mm
* Profile Range: C50–160 mm
* Material: Q235–Q345 Steel / Al-Mg-Zn Coated Steel
* Forming Speed: 20–25 m/min
* Forming Stations: 16
* Main Motor Power: 22 kW
* Uncoiler Capacity: 5 Tons
* Profile Size Adjustment: Computer-Controlled Automatic
* Punching System: Hydraulic – Oblong & Bottom Holes
* Cutting System: Servo-Follow Hydraulic Cutting
* Control System: PLC Touchscreen
* Power Supply: 380V / 50Hz / 3 Phase
* Approximate Machine Weight: 15 Tons per Line

COMPLETE PRODUCTION LINE INCLUDES

* 5-Ton Uncoiler
* Leveling and Feeding System
* Hydraulic Punching Unit with Molds
* Automatic Roll Forming Main Machine
* Servo-Follow Hydraulic Cutting System
* Receiving Tables
* PLC Electrical Control Cabinet
* Cooling Circulation System
* Spare Parts as Specified

KEY SELLING POINTS

* Brand-new, unused production equipment
* Ready stock in China
* Immediate availability without manufacturing waiting time
* Computer-controlled automatic profile size adjustment
* Integrated hydraulic punching and servo-follow cutting
* Suitable for solar mounting structure production
* Competitive FOB China pricing
* Available individually or together

Technical documentation, and inspection arrangements are available upon request.

Contact us for any further technical details
