Infrared curing oven
Metal processing
-
PrimeHeat United States
2023 United Arab Emirates
Machine Details
Item Details
| Name | Infrared curing oven |
|---|---|
| Item Code | SM2510497 |
| Model No | - |
| Serial No | - |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | PrimeHeat |
| Year of Manufacture | 2023 |
| Country of Origin | United States |
| Posted On | 22-10-2025 |
| Machine Location | United Arab Emirates |
Description

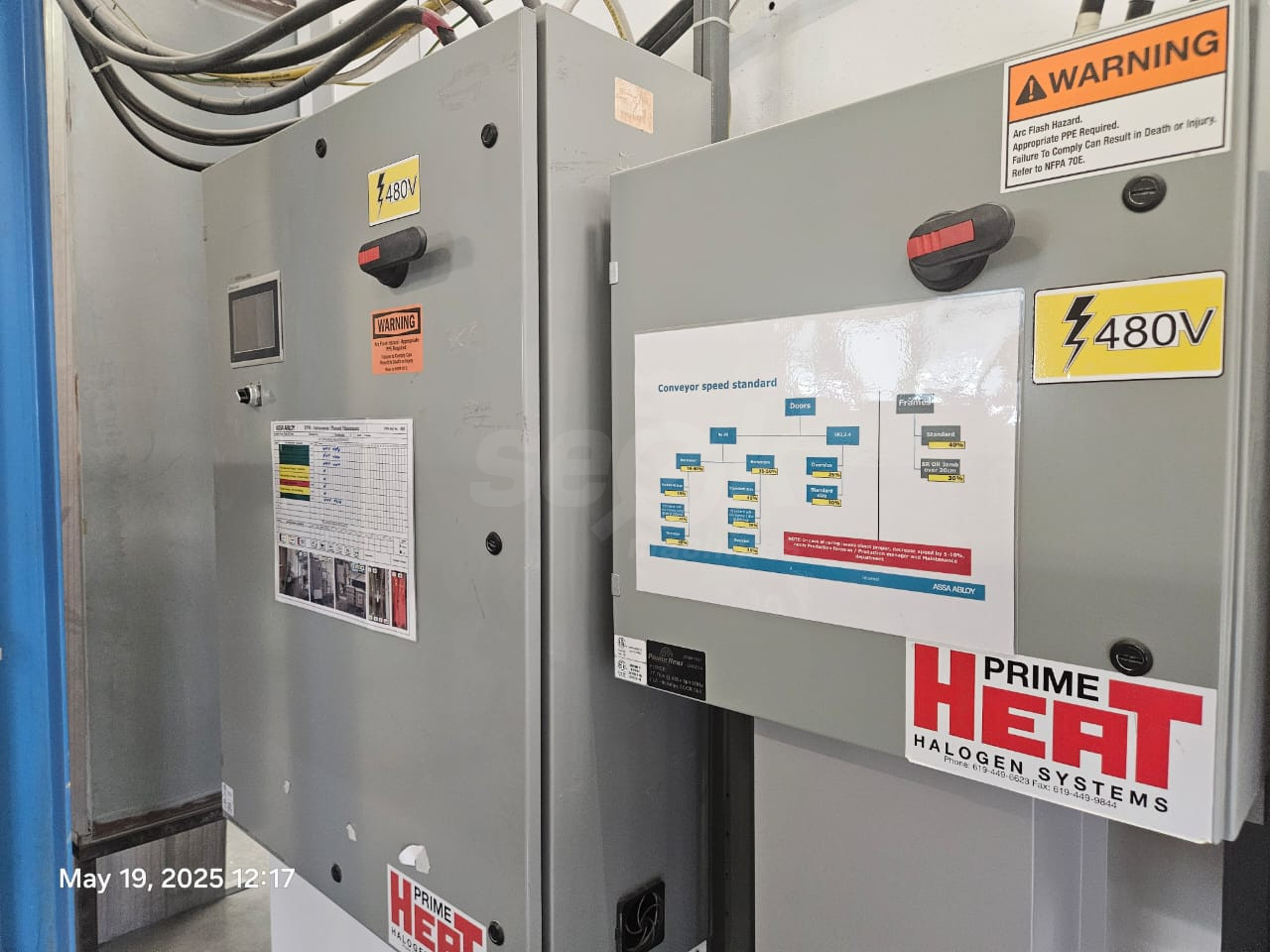

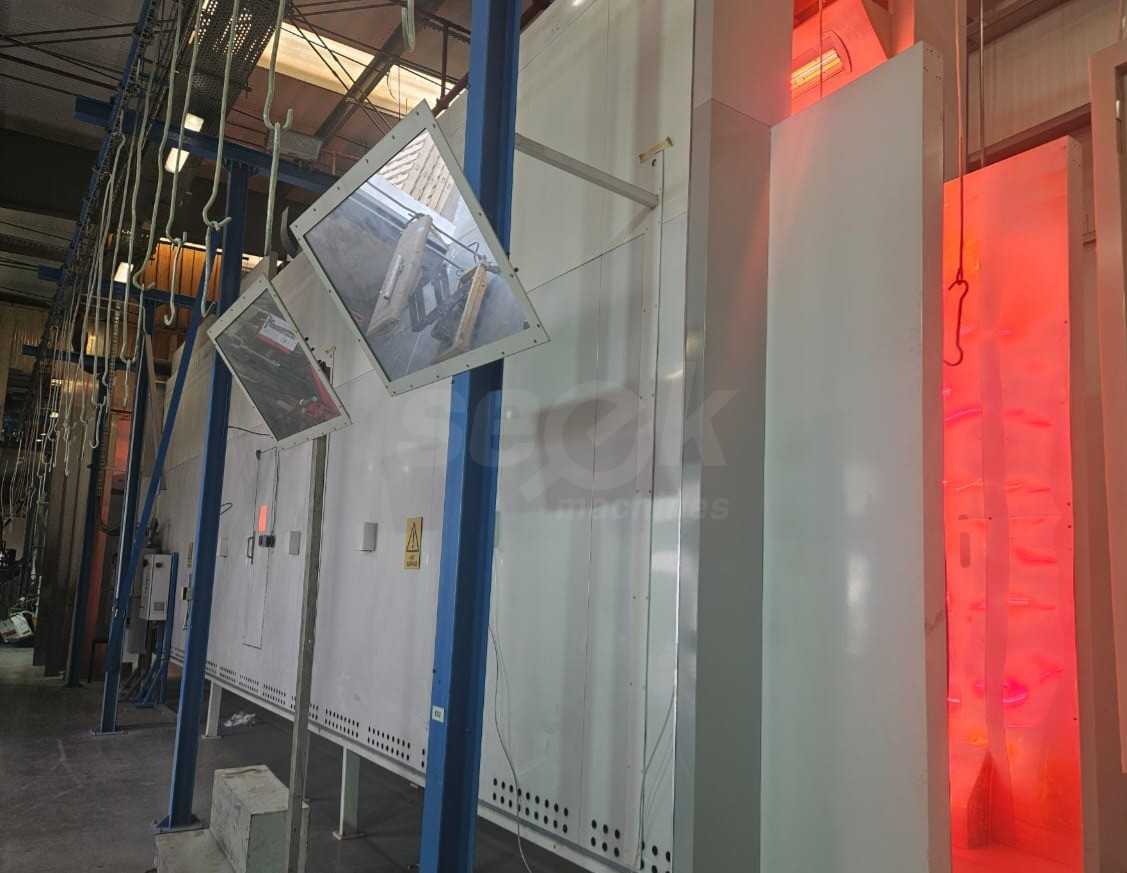

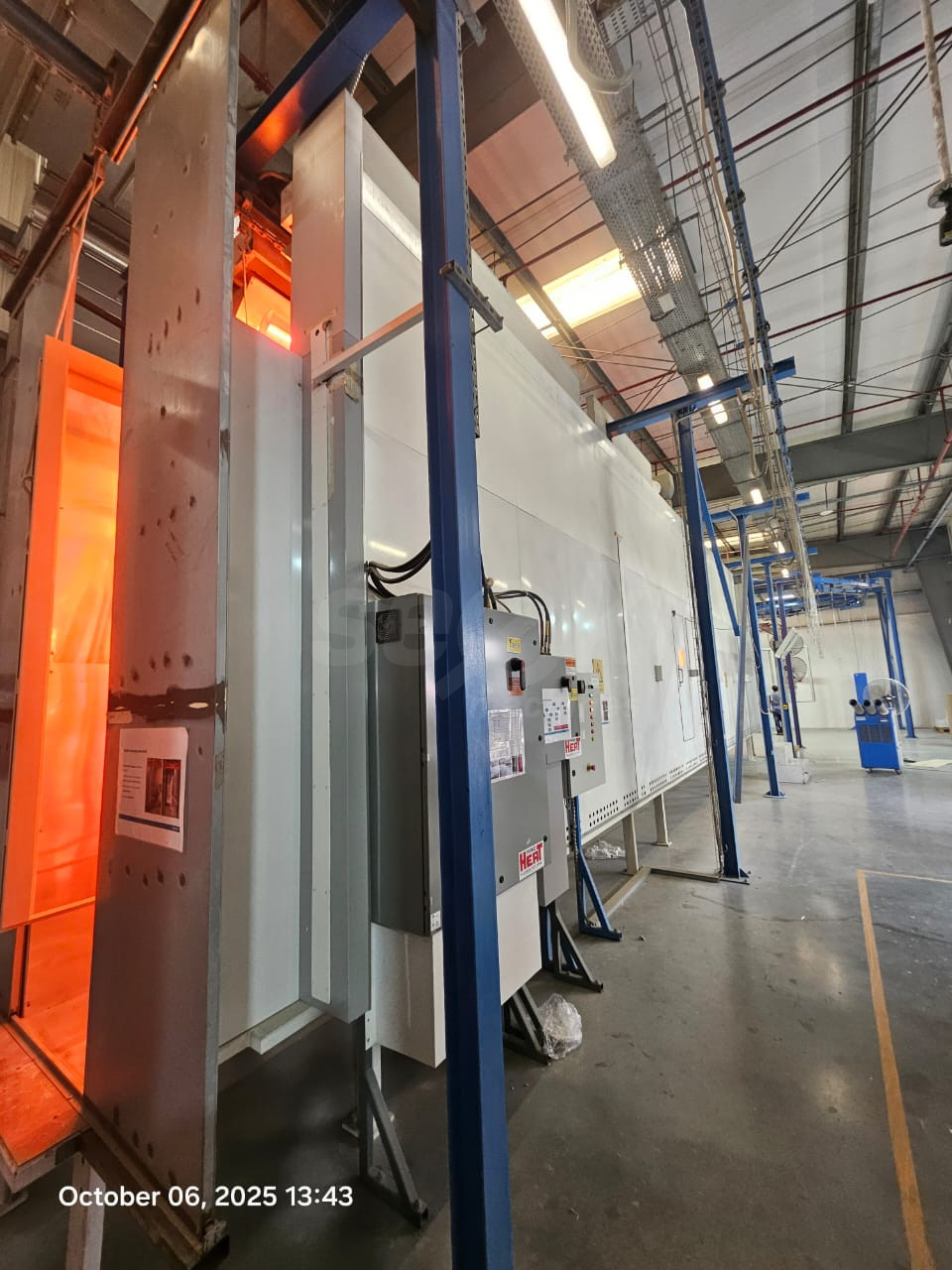

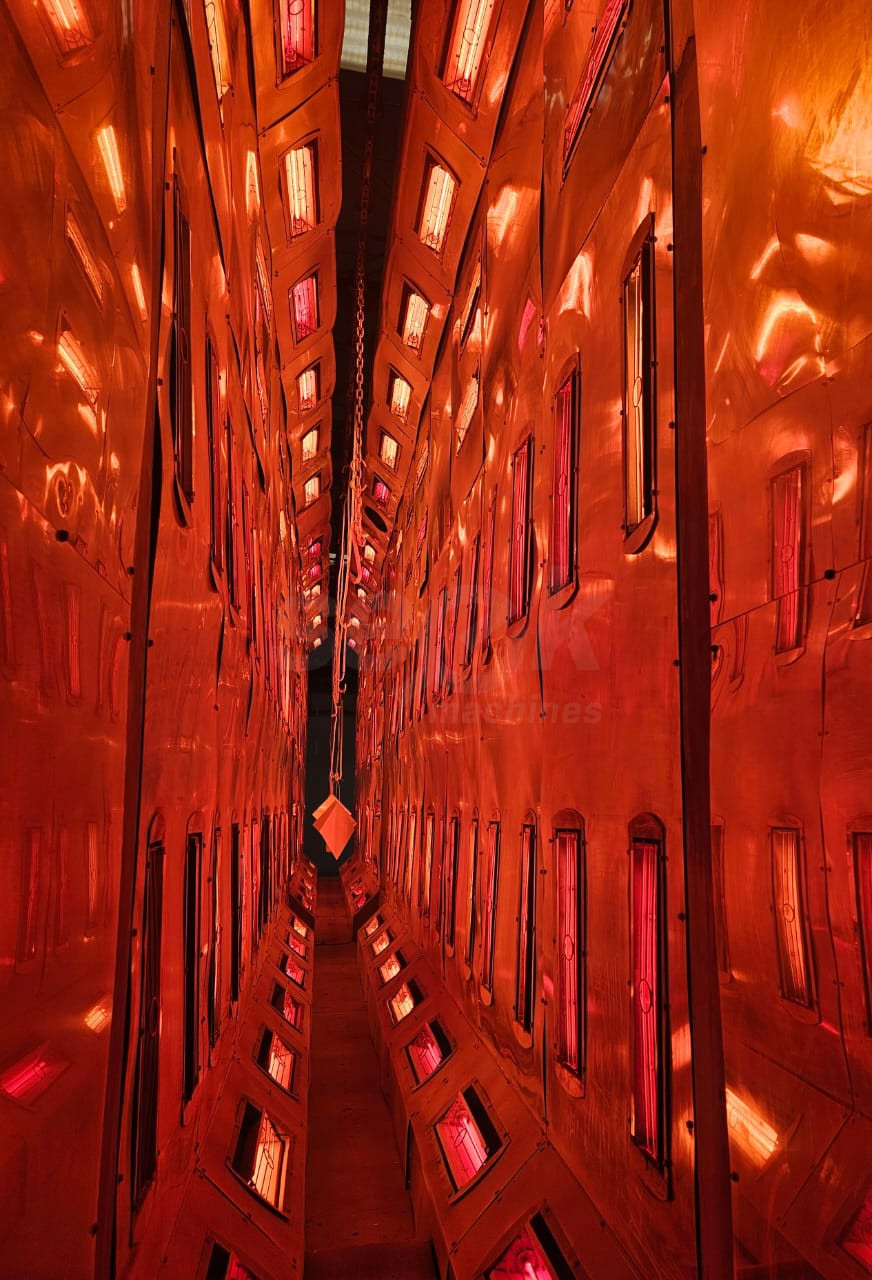

40' / 12m Infra red powder curing oven with zone control. 6 heating zones with 2 height levels; total 186 heating elements. PLC with 7" Color touchscreen. 8 cooling blowers 1-2,000 cfm exhaust. Conforms to UL STD 499 & UL STD 508A. 480V 3ph.

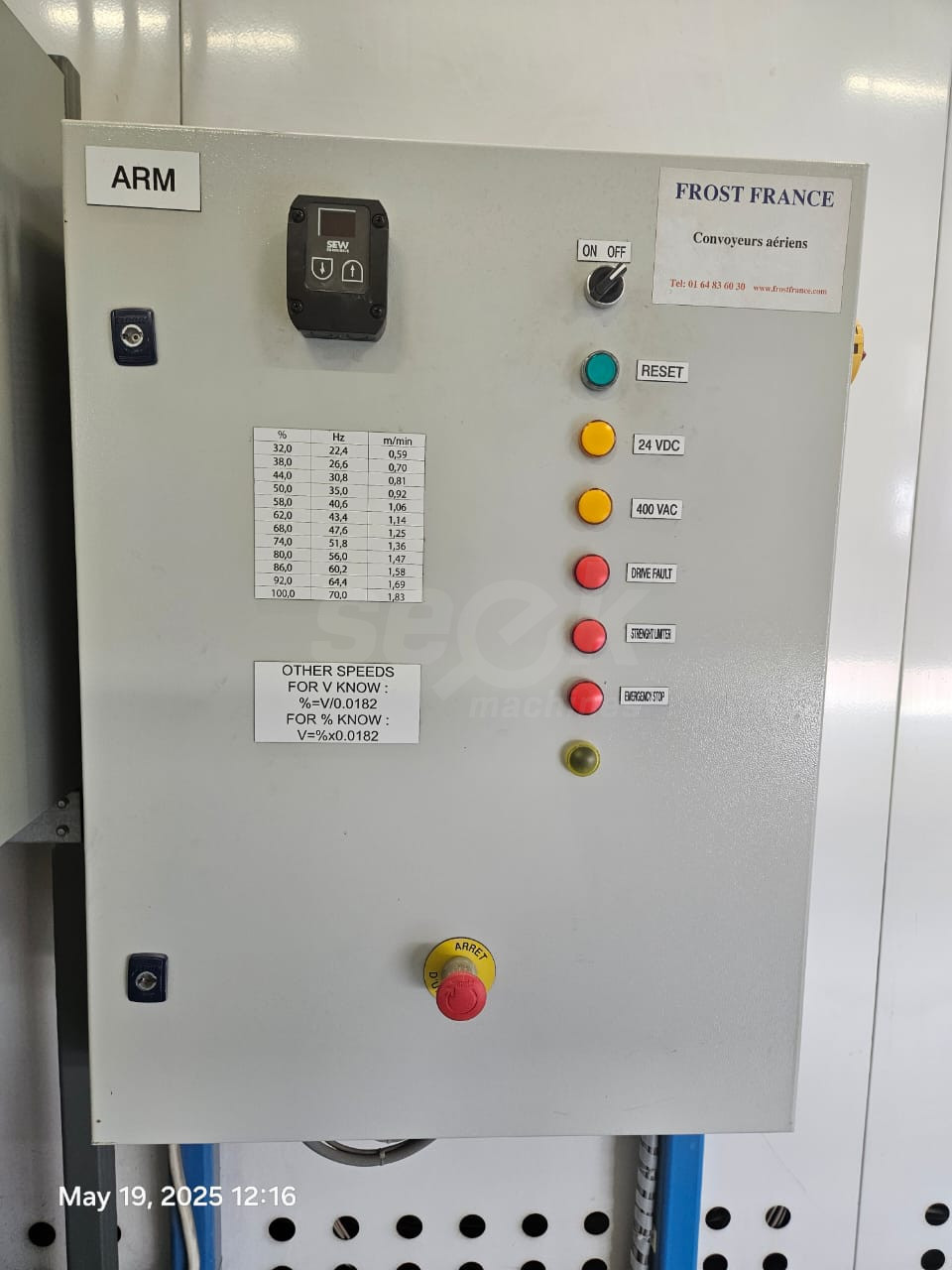

Webb type conveyour from Frost up to 1.83m / min speed, and load up to 200kg.
For further details, please contact us. Machine is currently assembled with conveyor and running - available to see in operation.
Technical Specifications
| Lenght | 12m |
|---|---|
| Heating zones | 6 |
| Max product height | 3m |
| Max product weight (conveyor) | 200kg |
| Total power | 378kW |
| Heating elements | 186 |
| Max conveyor speed | 1.8 m/min |
Catalogs
| Technical Catalog |
No catalog uploaded by the seller |
