Item Details

Description

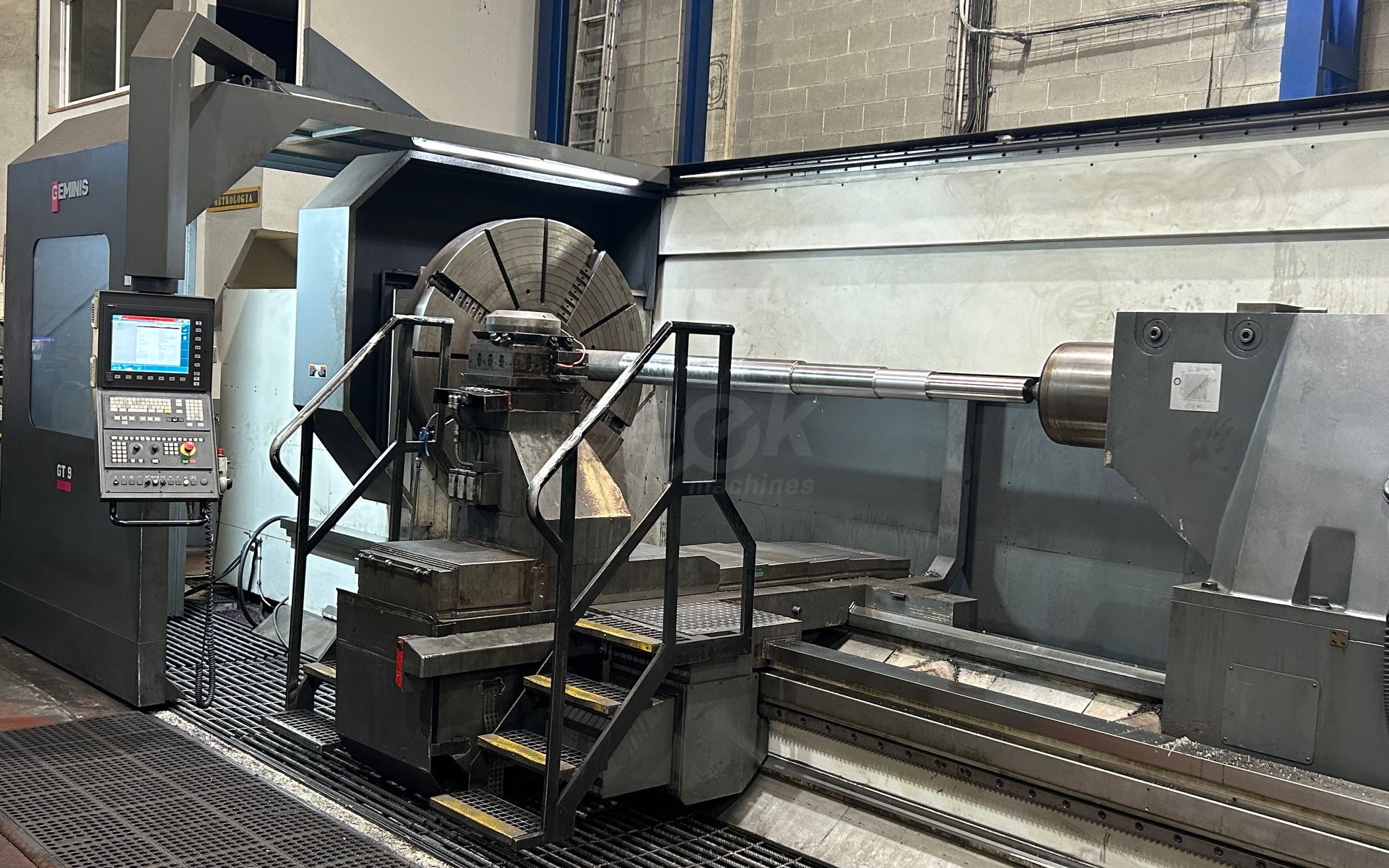

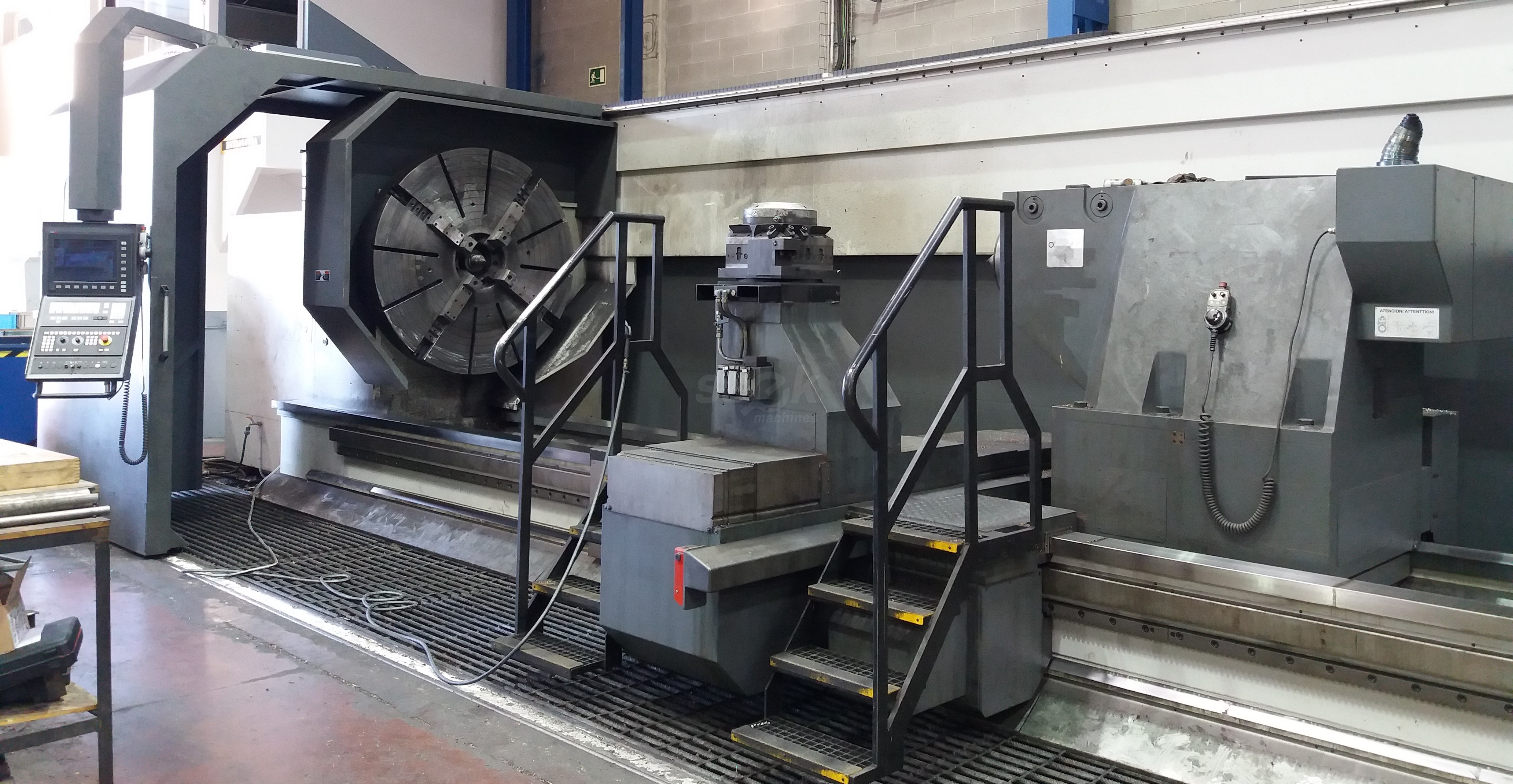

Reference: 218-N325
Distance between centers: 8000 mm
Height centers: 1050 mm
Max swing over bed: 2100 mm
Max swing over slide: 1600 mm
Main spindle hole diam: 150 mm
Speed range:
4
Speed ​​range I: 0-80 rpm
Speed ​​range II: 0-175 rpm
Speed ​​range III: 0-350 rpm
Speed ​​range IV: 0-700 rpm
Cross slide travel: 1060 mm
Quill diameter: 400 mm
Quill travel: 300 mm
Allowed weight between points 30.000 kgs.
Main motor power 100 KW
Year: 2015
Equipped with:

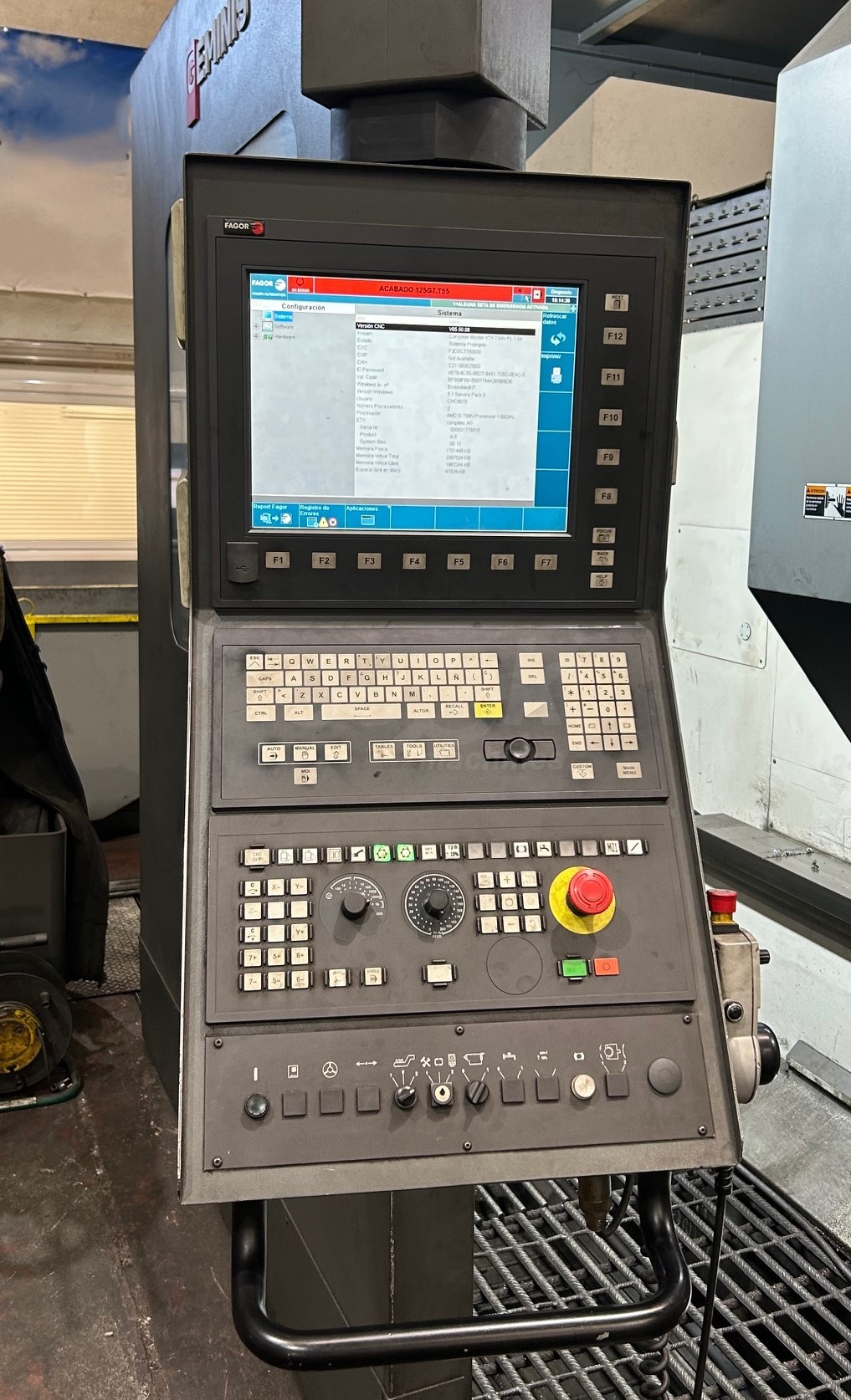

Control: FAGOR 8065 (15'' screen)

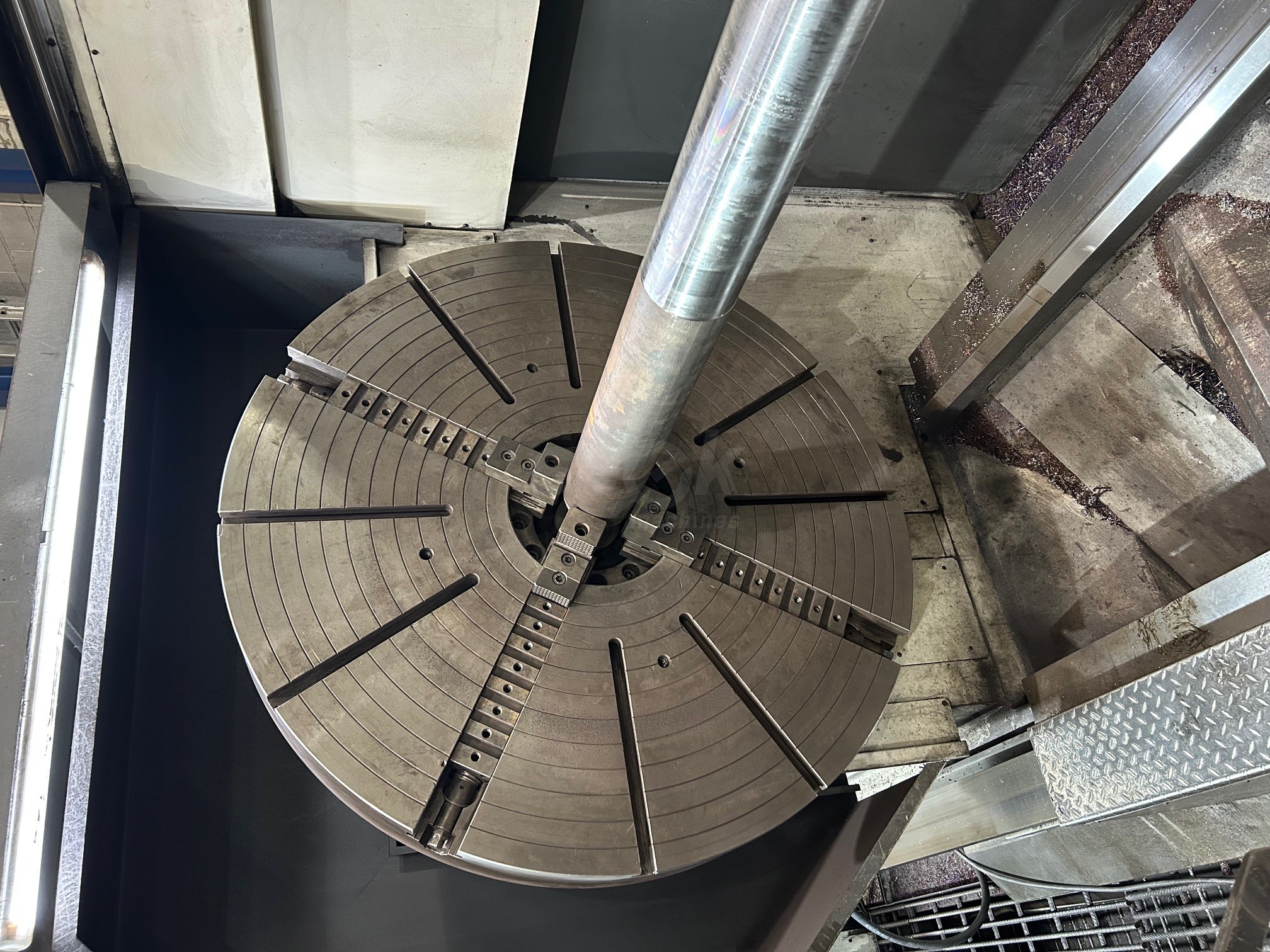

4 independent jaw chuck: Ø 1600 mm
Hard inner and outer claw set

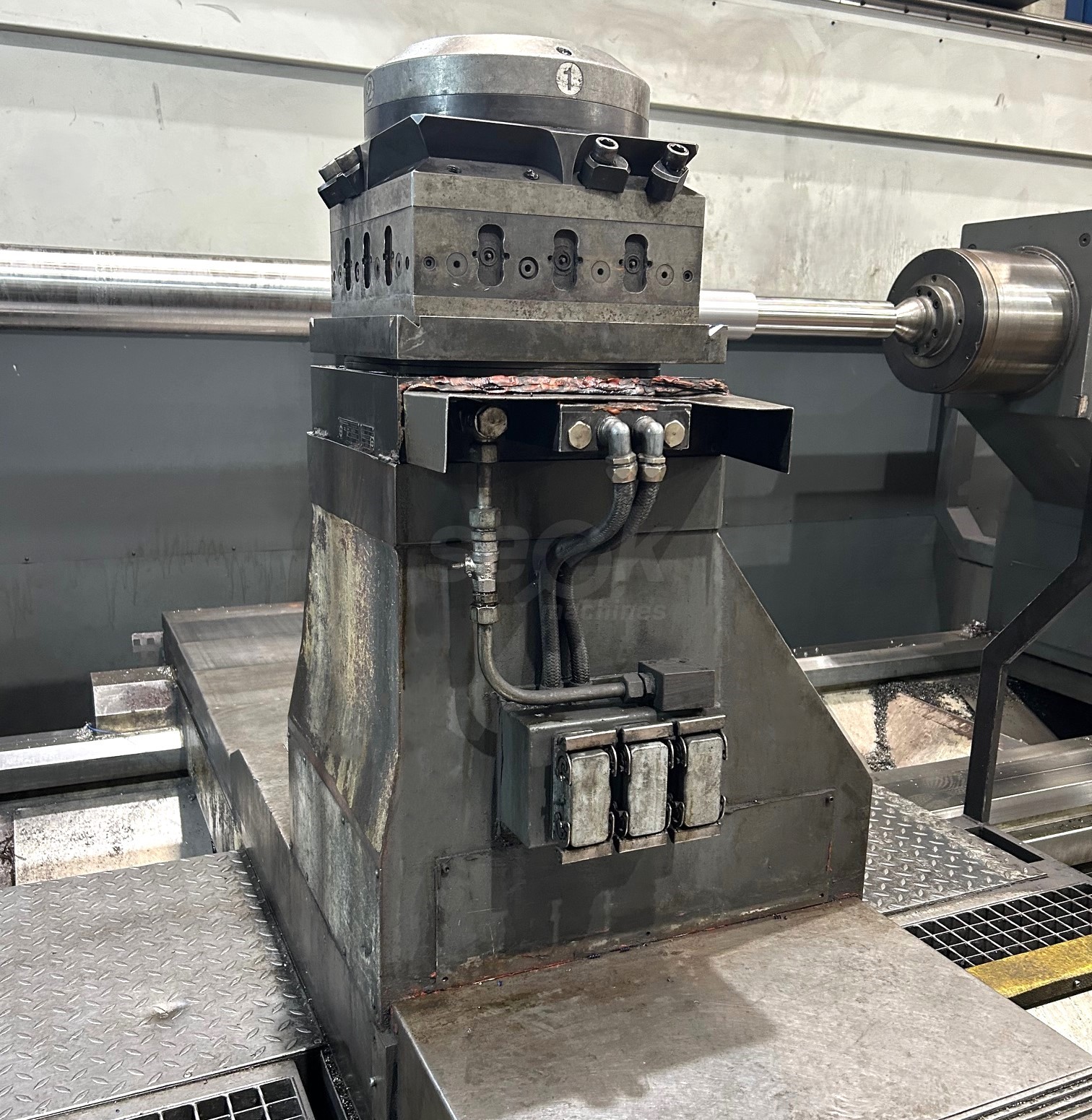

Square Auto Turret: SAUTER 4 pos - Ø 320x320 mm
Tailstock and quill: Motorized
Rod accommodation: Built-in swivel
Locking/Unlocking the tailstock body: Automatic
Air conditioner for electronic cabinet Yes
Portable electronic steering wheel: Yes
Chip conveyor: Yes
Fixed closed rear window 4 supports Ø 500-900 mm
Max allowed rear window weight: 10.000 kg.
Prepared for C Axis with transmission from the main engine
Prepared for adaptation of milling head with Y axis on turret
Preparation for mounting the grinding head

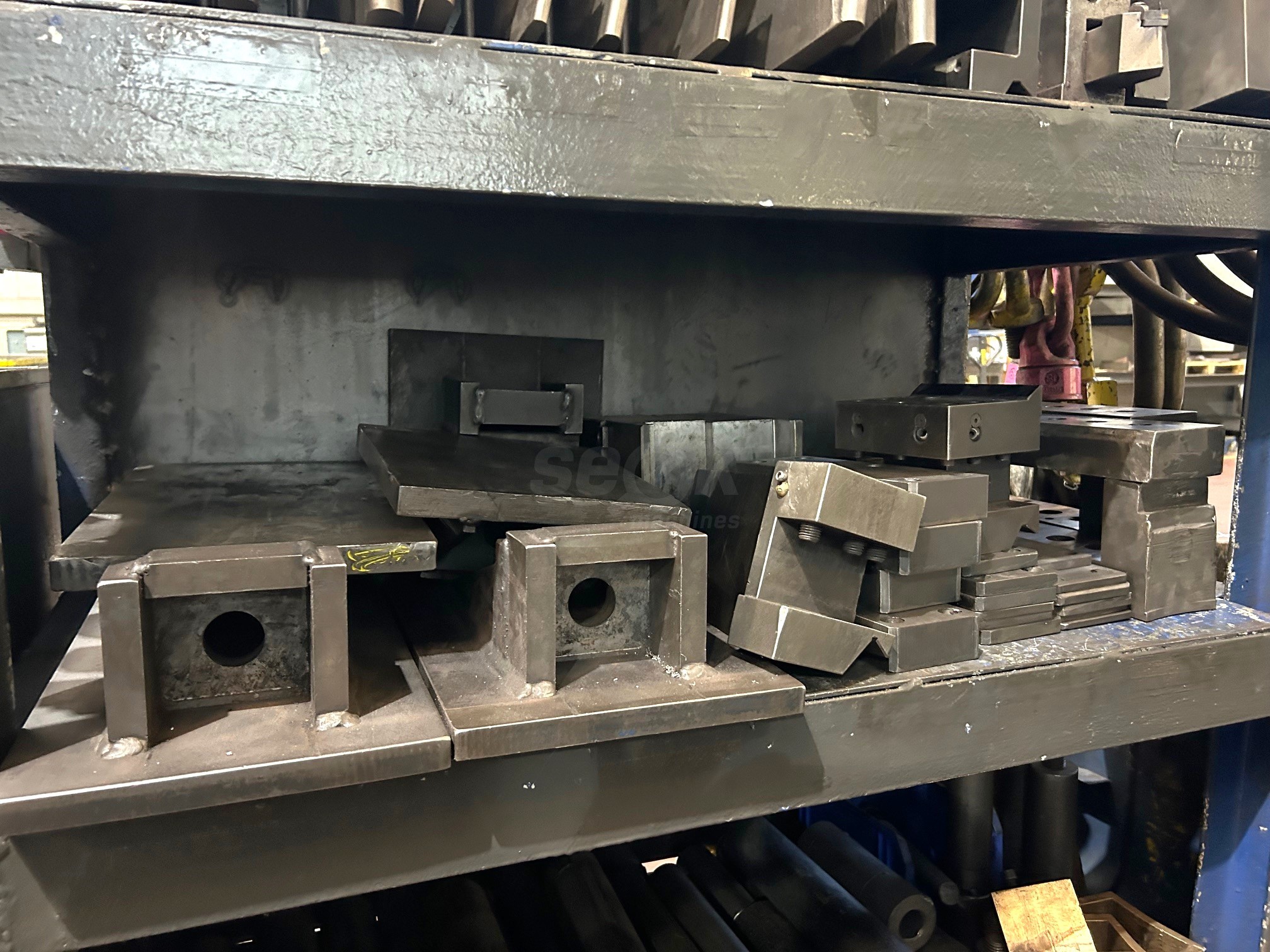

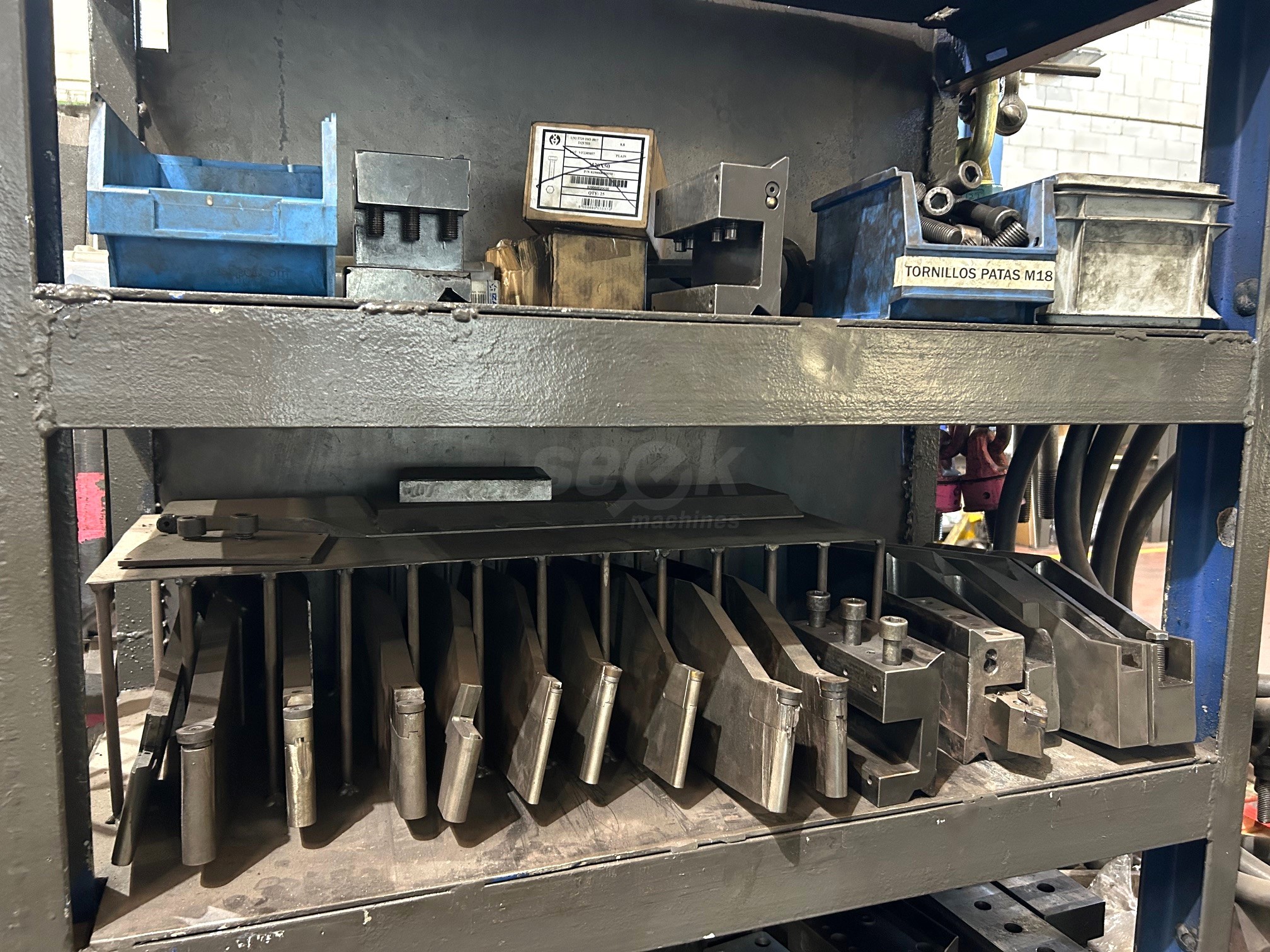

Very equipped with tools (according to photos)
