Item Details

Description

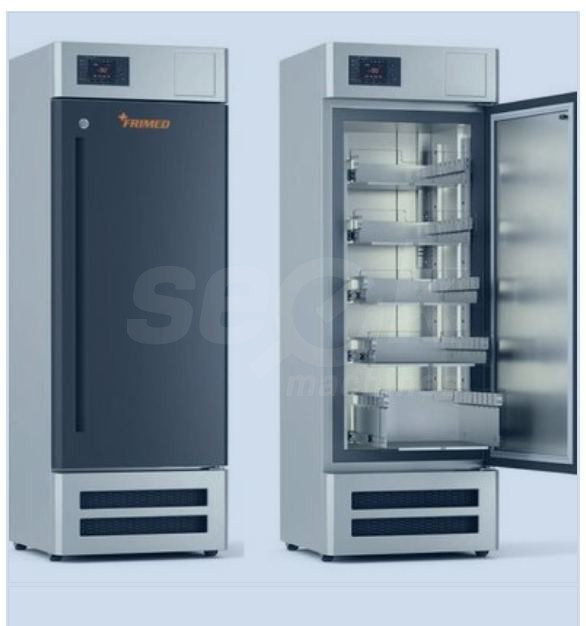

AF70BL Model (-30°C) Capacity 700LT Structure External structure in hot-dip galvanized steel, anti-corrosion treated and PVC film coated. Scotch-brite stainless steel internal structure. Insulation 60 mm of insulation obtained by injection of high density polyurethane CFC-free foam for excellent product preservation and best energy saving Door Self-closing solid door, with folding magnetic gasket on four sides for perfect closing. Right hand opening or left hand on request. Lock with key. Internal fittings Standard equipped with 4 scotch-brite stainless steel shelves, removable and adjustable in height. Optional stainless steel drawers, adjustable in height, with telescopic ball-bearing slides and plexiglas frontal side. Temperature range Setting between -10°C and -32°C. Factory preset to -30°C. Digital adjustable with an increment of 0.1°C. Refrigeration system Completely sealed, silent and highly efficient hermetic compressor and ventilated air condenser (suitable also for tropical countries). Internal ventilated evaporator. CFC-free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries. Defrosting Fully automatic defrosting cycle and auto-evaporation of condensed water. Capacity 700 litres Voltage 230V/50 Hz (on request 230V/60 Hz, 115V/60 Hz) Absorption 560 Watt Gas CFC-free R452a refrigerant gas. CFC/HCFC-free R290 refrigerant gas for European countries. Standard----------4 scotch-brite stainless steel shelves. Four one way wheels with stabilizing adjustable feet Door lock with key Power cord with Schüko type plug or British type plug Protection fuses (on power switch and electronic mainboard) RFI filter Password protected power switch and settings Electronic control panel with alarm system Remote contact (dry, volt-free) for alarm Data logger with USB port to download readings and data Memory of latest alarms visible on screen Optional accessories------------Scotch-brite stainless steel sliding drawers (max 7) with telescopic ball-bearing slides and Plexiglas frontal side Internal dividers for drawers Additional shelf Smooth shelf with borders Castors with two frontal brakes Weekly temperature chart recorder working with 1,5 V battery, equipped with 52 disks and a pen 12V back-up battery (LGK-2) or rechargeable batteris (TP-1 full touch) supplying energy to control panel in order to display temperature and generate alarms in case of power failure GSM module to send SMS alarm messages to mobile phones, showing date, time, cabinet temperature and type of alarm (LGK-2) LAN Port to connect the appliance via ethernet on PC to monitor correct functioning (LGK-2) Cloud system (TP-1 full touch) Test hole (Ø 25 mm) for external user sensor Electric digital key lock (TP-1 full touch) Power supply 115V/60Hz External dimensions and unit net weight 700x800x1990 (wxdxh-mm)-kg. 150 Dimensions of packaging and shipping weight-- carton box on pallet: 750x850x2150 (wxdxh-mm)-kg. 162 wooden crate (option on request): 960x840x2260 (wxdxh-mm)-kg. 215
