Frame (Male & Female) milling machine
Wood Working
F9
OMEC Italy
2007 United Arab Emirates
SM/24/03/28
Machine Details
Item Details
| Name | Frame (Male & Female) milling machine |
|---|---|
| Item Code | SM/24/03/28 |
| Model No | F9 |
| Serial No | -- |
| Usage | used |
| Industry | Wood Working |
| Manufacturer | OMEC |
| Year of Manufacture | 2007 |
| Country of Origin | Italy |
| Posted On | 06-03-2024 |
| Machine Location | United Arab Emirates |
Description

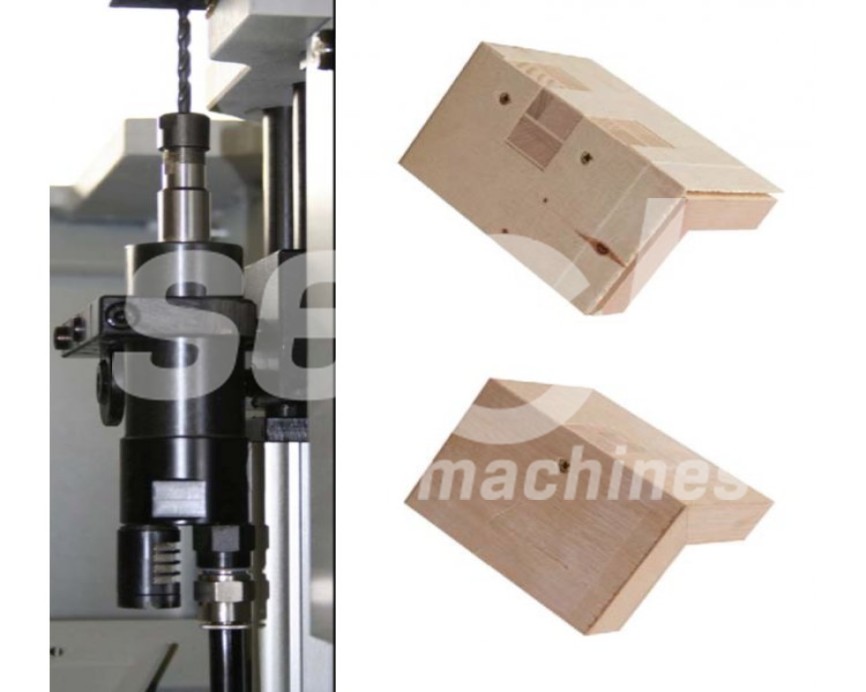

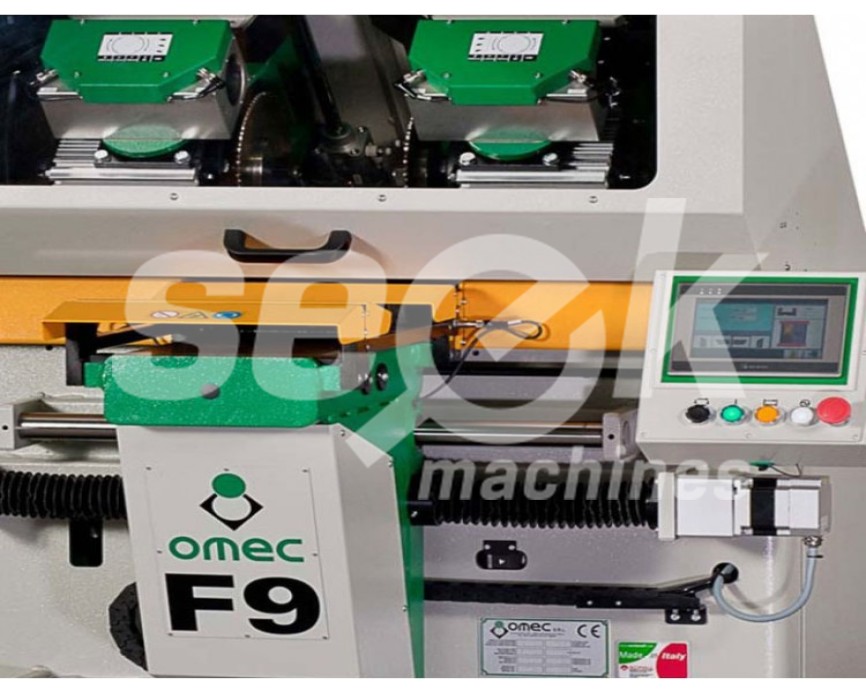

The OMEC F9 combined milling machine was designed to manufacture door frames with one, two or three parallel joints and a 45° cutting angle in a single working cycle with no need to change the type of tool. With this type of machining, users obtain an exact reference stroke-piece and a very firm joint even with materials that are less compact than solid wood, where traditional fastening systems with pins, nails or screws are not easily applicable. This system is also very handy for the later stages of frame assembly and installation. What is visible from the outside is only a 45º chamber that is nice to see
Technical Specifications
| Width | 60mm - 295mm |
|---|---|
| Milling cutters thickness | 10/20mm |
| Cutting operations | 45° angle |
