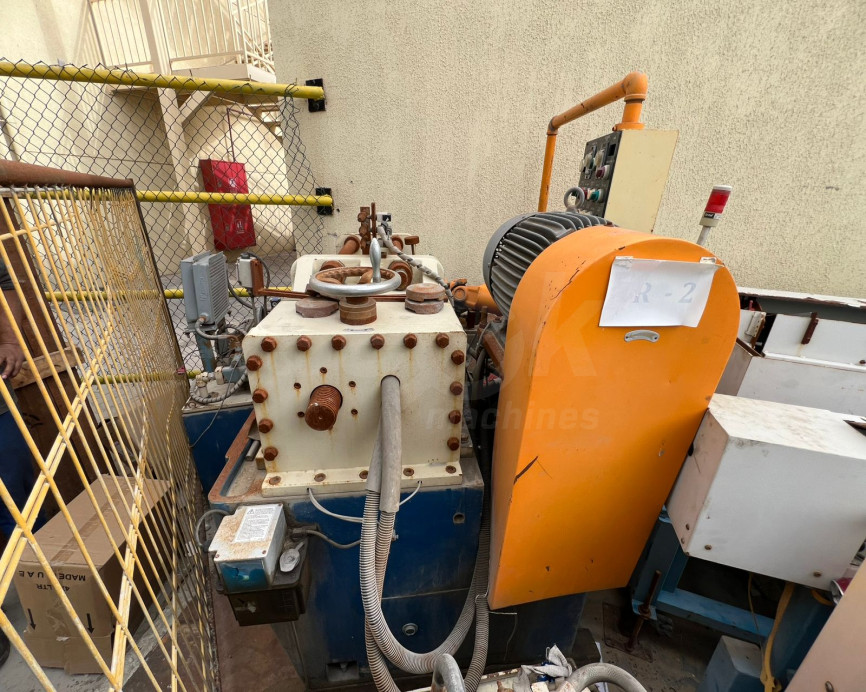

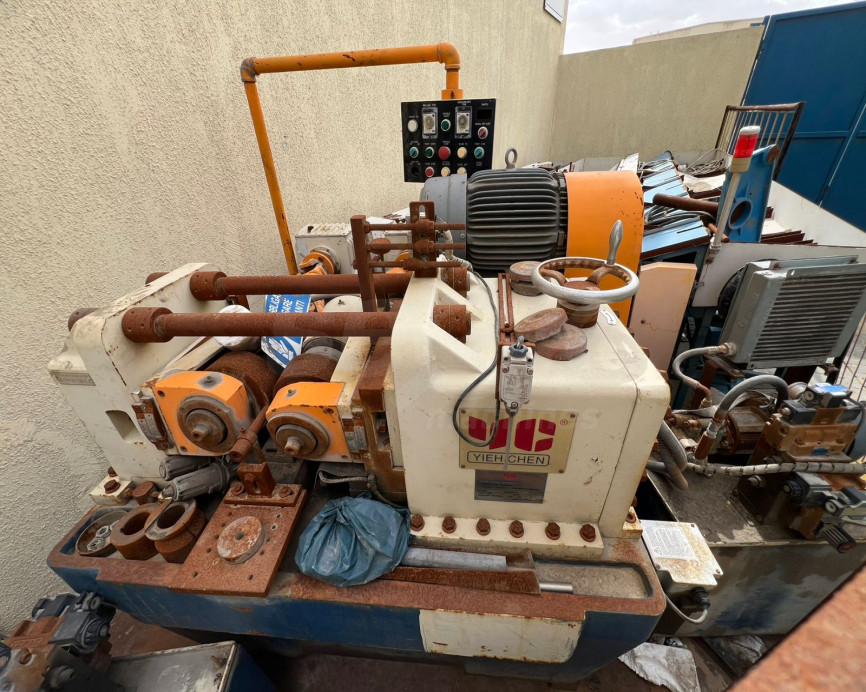

Yieh Chen YC-530P Hydraulic Thread Rolling Machine – Heavy Duty (35 Ton)
Metal processing
YC-530P
Yieh Chen China
2019 United Arab Emirates
Machine Details
Item Details
| Name | Yieh Chen YC-530P Hydraulic Thread Rolling Machine – Heavy Duty (35 Ton) |
|---|---|
| Item Code | SM2601611 |
| Model No | YC-530P |
| Serial No | 1194 |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Yieh Chen |
| Year of Manufacture | 2019 |
| Country of Origin | China |
| Posted On | 16-01-2026 |
| Machine Location | United Arab Emirates |
Description

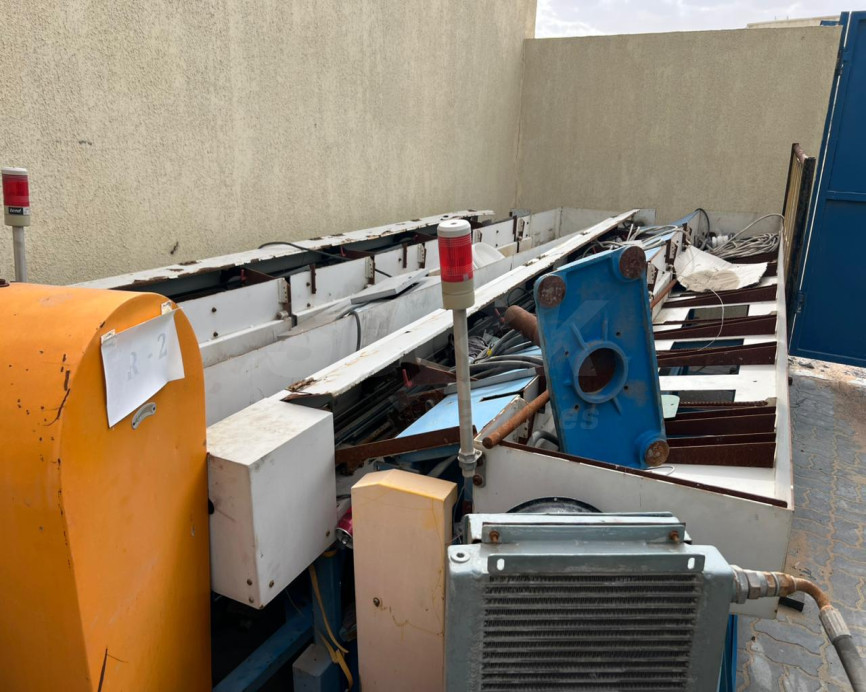

YC-530 Thread Rolling Machine W/Hopper Feeder or with Hydraulic Type Auto Feeder for Double Thread.
Key Capabilities:
Dual Rolling Modes: Supports both Infeed (plunge) for short parts and Through-feed for indefinite lengths.

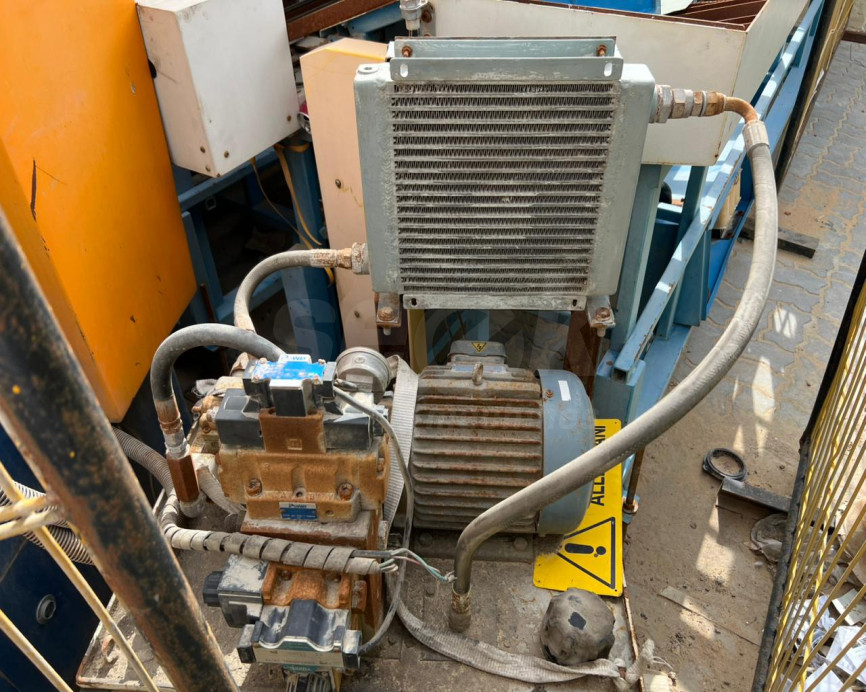

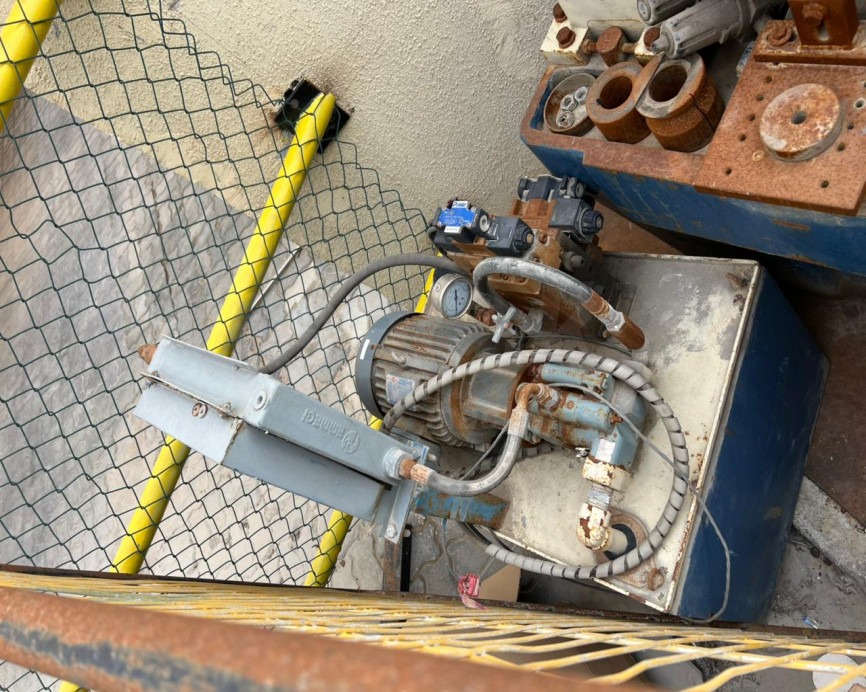

Adjustable Pressure: Hydraulic feed pressure can be fine-tuned from 0.5 tons up to 30+ tons to prevent damage to delicate parts.
Precision Tooling: Can produce a wide variety of forms, including metric, UNC/UNF, ACME, worm gears, and splines.
Industrial Build: Features a solid cast iron frame designed to minimize vibration for superior surface finishes.
It is currently stored indoors and protected within our factory. This machine is in good condition and is available for immediate deployment—no long lead times for overseas shipping.
Technical Specifications
| Max Rolling Force | 35 TONS |
|---|---|
| Workpiece OD Range | 6 – 60 mm |
| Thread Pitch Range | 0.75 – 6.0P |
| Rolling Speeds | 15, 23, 36, 52 rpm |
| Max. Die Width | 150 mm |
| Rolling Spindle Motor | 10 HP |
| Net Weight (N.W.) | 2700 kg |
| Hydraulic Pump Motor | 5 HP |
