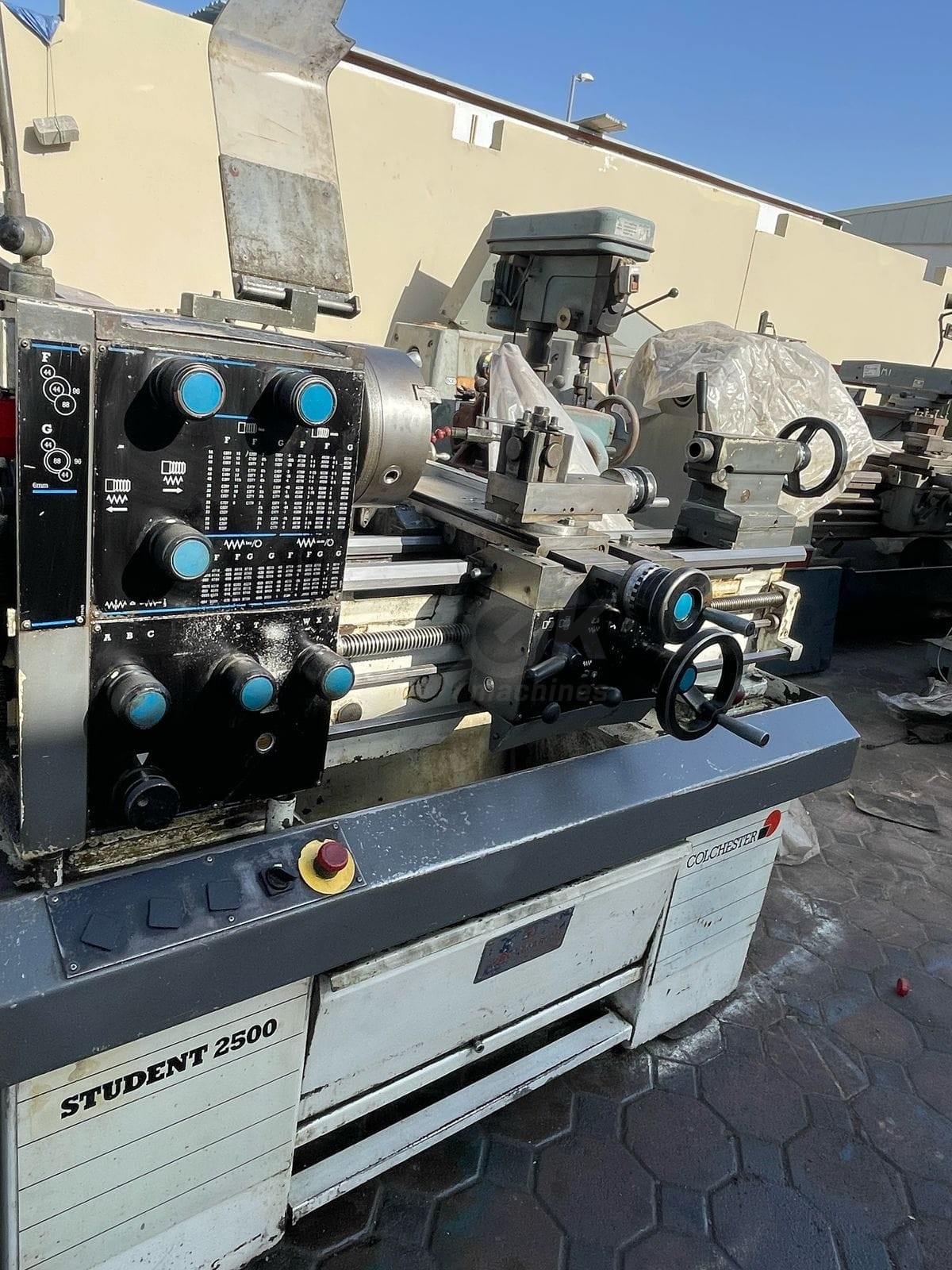

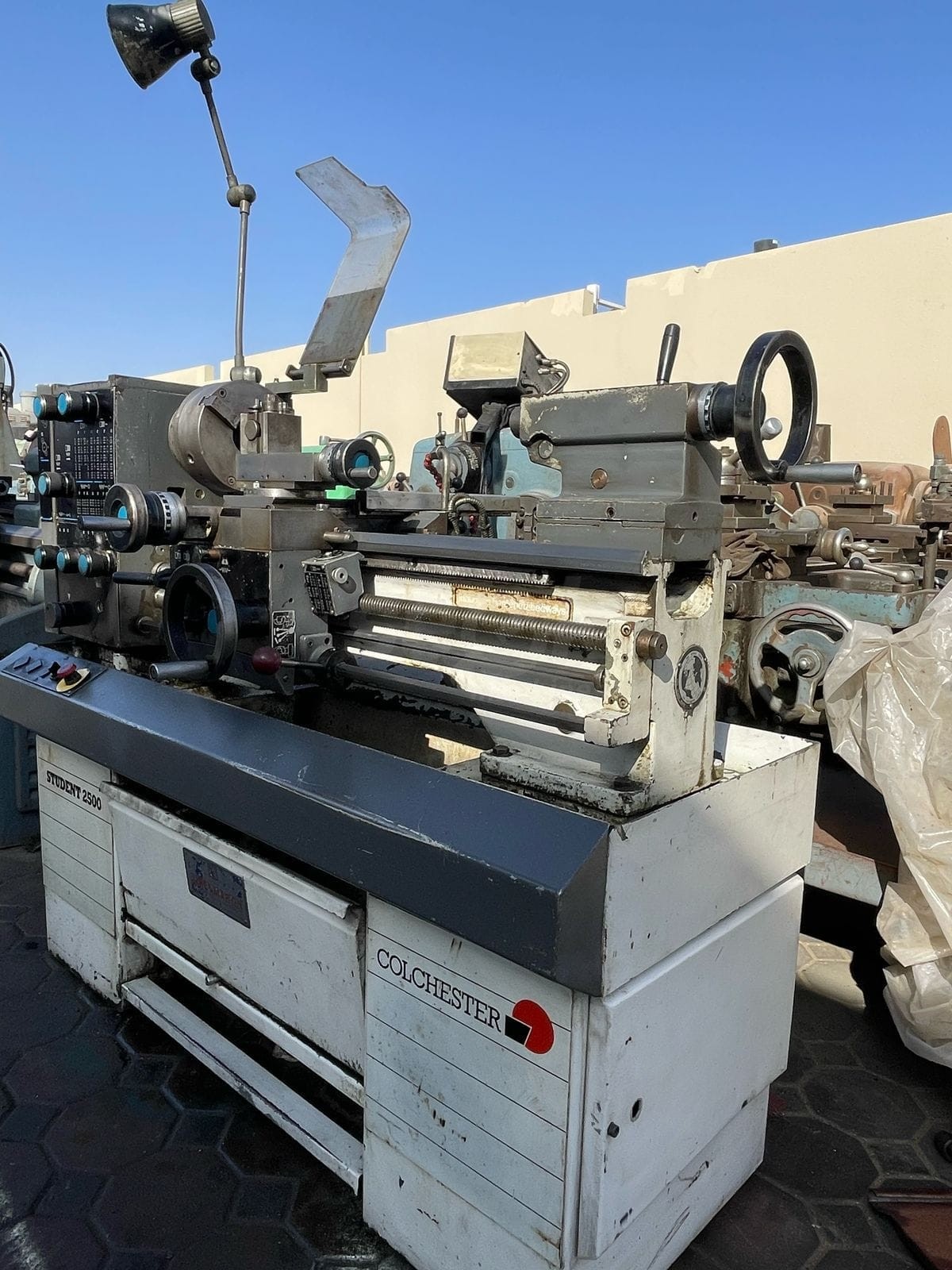

Lathe Machine Colchester Student 2500
Metal processing
2500/M300
Colchester United Kingdom
United Arab Emirates
SM2505234
Machine Details
Item Details
| Name | Lathe Machine Colchester Student 2500 |
|---|---|
| Item Code | SM2505234 |
| Model No | 2500/M300 |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Colchester |
| Year of Manufacture | -- |
| Country of Origin | United Kingdom |
| Posted On | 09-05-2025 |
| Machine Location | United Arab Emirates |
Description
The number one lathes for education, worldwide.
Ideally suited for industry, the toolroom, training and secondary and tertiary education applications.
Standard Features:
• 3-Jaw PBI scroll chuck
• Dickson Quick Change Toolpost with tool holders
• Manual tailstock
• Machine work light
• Coolant pump system
• Full length foot brake
• Thread dial indicator
• Machine toolkit
• Swarf (chip) bin
Technical Specifications
| Swing Over Bed (mm) | 330 |
|---|---|
| Distance Between Centres (mm) | 635 / 1000 |
| Spindle Bore (mm) | 40 |
| Chuck Size (") | 6 |
| Spindle Nose (Camlock) | D1-4 |
| Spindle Speed Range (rpm) | 40 - 2,500 |
| Spindle Power (kW) | 2.2 |
| Swing in Gap (mm) | 480 |
| Swing Over Cross Slide (mm) | 210 |
Catalogs
| Technical Catalog |
No catalog uploaded by the seller |
